A607 Carrier Board – expansion board for Jetson Orin NX / Orin Nano – Seeed Studio 102110841
ID: 1200444
zł2,235.83
Tax included
zł1,817.75 tax excl.
The A607 board Seeed Studio 102110841 offers a rich set of communication interfaces and a wide power input range, supporting the development of advanced AI applications based on Jetson Orin NX and Nano platforms. It is used in mobile robotics, video analytics, and vision systems. Seeed Studio 102110841
Description

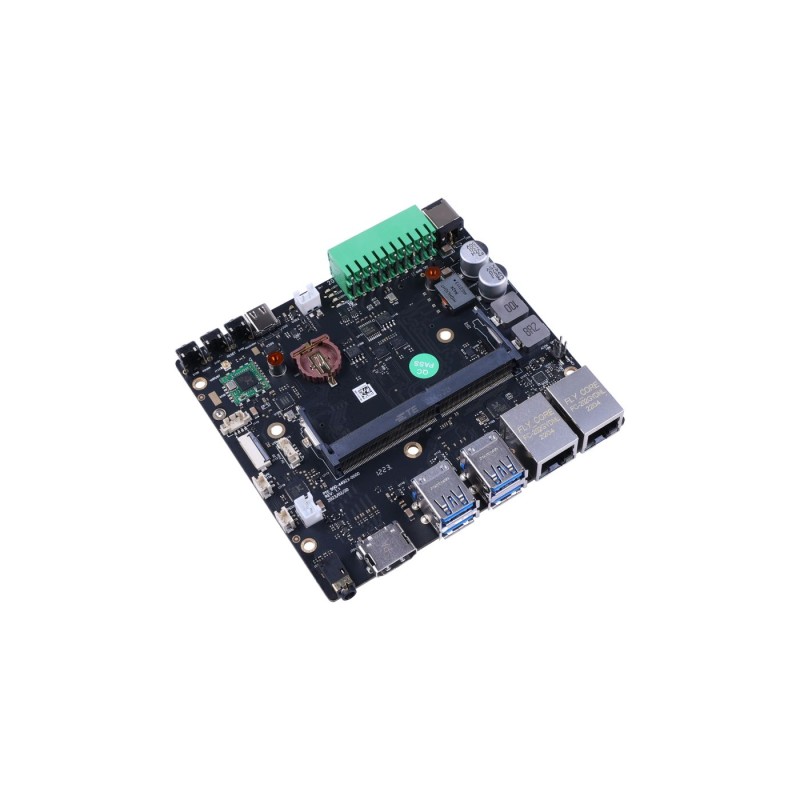

The A607 Seeed Studio board is a versatile expansion platform for NVIDIA Jetson Orin NX and Orin Nano modules, designed for use in vision systems, mobile robotics, and data analytics with artificial intelligence. It features two Gigabit Ethernet ports, a factory-installed WiFi/Bluetooth SMD module, and an M.2 Key M slot for NVMe SSDs (2242 format). The board includes six USB ports (including USB-C and ZIF), an HDMI connector, and a 120-pin camera interface. Integrated communication connectors include CAN, I2C, RS232, RS485, SPI, and UART, accessible via a 20-pin expansion header and a separate I2C connector. The board supports a 5 V PWM fan, an RTC socket with rechargeable battery support, and a wide-range 12–36 V DC power input. With an operating temperature range from -25°C to 75°C, it is suitable for industrial environments.
Properties
- Compatible with Jetson Orin NX and Jetson Orin Nano
- 2× Gigabit Ethernet (10/100/1000M)
- Factory-installed WiFi/Bluetooth module (SMD)
- 1× M.2 Key M slot (2242 NVMe SSD)
- 1× M.2 Key E PCIe 2230
- 4× USB 3.0 Type-A (integrated with USB 2.0)
- 1× USB 2.0 / 3.0 Type-C
- 1× USB 3.0 ZIF (20-pin, 0.5 mm)
- 1× HDMI
- 1× 120-pin camera connector
- 1× fan connector (5 V PWM)
- 1× audio jack
- 1× speaker connector
- 1× 20-pin IO header (CAN, RS232, RS485, I2C, UART, GPIO, SPI)
- 1× I2C connector
- 1× RTC socket (rechargeable battery supported)
- Power input: 12–36 V DC
- Dimensions: 115 × 105 mm
- Operating temperature range: -25°C to 75°C
Included
- A607 Carrier Board ×1
- 19 V / 4.74 A power supply (5.5/2.5 mm barrel connector, without power cord) ×1
1200444
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)

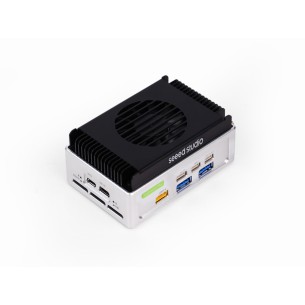

reComputer Mini J3011 with Jetson Orin Nano 8GB is a compact AI computer with performance of up to 40 TOPS, optimized for use in mobile devices and battery-powered systems. Equipped with flexible interfaces, remote management support, and preinstalled JetPack 6.0, it enables rapid deployment in robotics, drones, and autonomous machines. Seeed Studio 102110999
zł3,048.35
4 weeks
No product available!

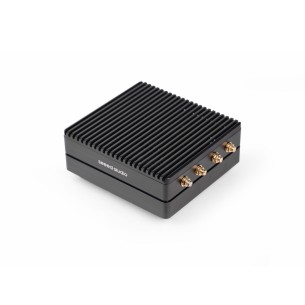

reComputer J4012B with the NVIDIA Jetson Orin NX 16GB module provides up to 100 TOPS of AI performance in a compact form, offering a wide range of interfaces and long-term production availability. A solution designed for applications such as smart city infrastructure, energy systems, and industrial automation. Seeed Studio 114993489
zł4,566.92
4 weeks
No product available!
reComputer J3010 with Jetson Orin Nano 4GB provides up to 34 TOPS of AI performance in super mode and a rich set of interfaces in a compact enclosure. A platform dedicated to deployments in robotics, video analytics, and machine vision systems. Seeed Studio 110110146
zł2,516.01
4 weeks
No product available!
reComputer J3010B with NVIDIA Jetson Orin Nano 4GB provides up to 34 TOPS of AI power in super mode and a wide range of interfaces for system expansion. A solution dedicated to applications in smart city, power systems, and industrial automation. Seeed Studio 114993486
zł2,633.68
4 weeks
No product available!
Development kit with an SoC containing eight 64-bit ARM v8.2 cores and a Volta graphics chip consisting of 512 cores supporting CUDA, cuDNN and TensorRT technologies. Equipped with 32 GB RAM and 128 GB SSD drive. Auvidea X221D-AGX32-128GB
zł11,399.00
2 weeks
No product available!
Seeed Studio reComputer J4011B with Jetson Orin NX 8GB provides AI performance up to 70 TOPS, a compact design, and a rich set of interfaces. Thanks to the built-in SSD, ready-to-use JetPack environment, and long-term support, the product is a solid platform for the development and deployment of artificial intelligence-based systems, including robotics, video analytics, and automation. Seeed Studio 114993488
zł3,734.51
4 weeks
No product available!
Development kit with SoC system containing eight 64-bit ARM v8.2 cores and Volta graphics system consisting of 512 cores supporting CUDA, cuDNN and TensorRT technologies. Seeed Studio 110991666
zł9,860.74
4 weeks
No product available!

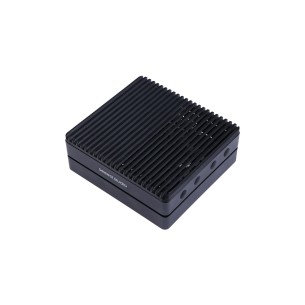

reComputer J4011 with Jetson Orin NX 8GB offers up to 70 TOPS of AI performance and a rich set of interfaces in a compact enclosure. A platform designed for deployments in robotics, image analysis, and systems utilizing generative AI models. Seeed Studio 110110144
zł3,586.29
4 weeks
No product available!

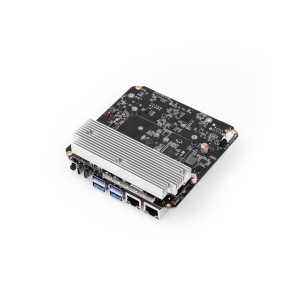

reComputer Robotics J401 is an industrial-grade mainboard for Jetson Orin Nano and Orin NX modules, providing up to 157 TOPS of AI performance and a rich set of communication interfaces. A solution dedicated to applications in robotics, automation, smart retail, and video analytics. Seeed Studio 114110327
zł1,000.24
4 weeks
No product available!

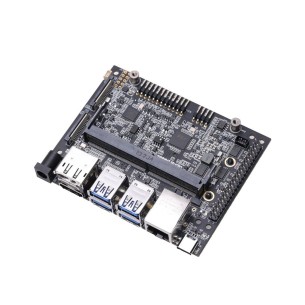

The reComputer J202 board Seeed Studio 102991695 provides full support for Jetson Xavier NX, Nano, and TX2 NX modules, offering a wide range of communication interfaces, connectors, and expansion options. It is well-suited for AI applications requiring intensive computing, such as vision systems and mobile robotics. Seeed Studio 102991695
