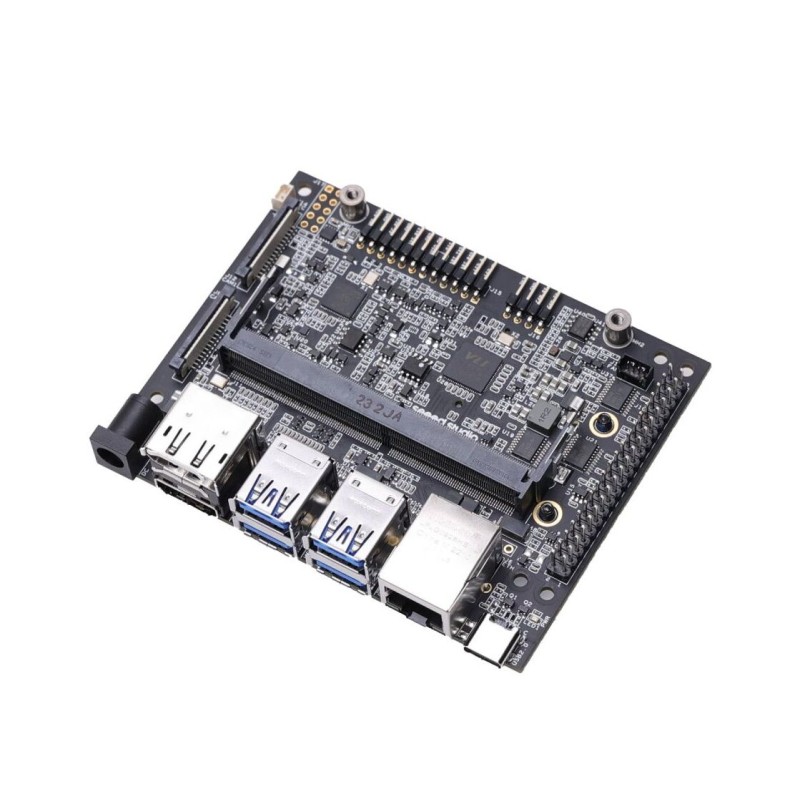

reComputer J202 – expansion board for Jetson Xavier NX / Nano / TX2 NX – Seeed Studio 102991695
search
  • reComputer J202 – expansion board for Jetson Xavier NX / Nano / TX2 NX – Seeed Studio 102991695
ID: 1200447
zł690.36
Tax included

zł561.27 tax excl.

The reComputer J202 board Seeed Studio 102991695 provides full support for Jetson Xavier NX, Nano, and TX2 NX modules, offering a wide range of communication interfaces, connectors, and expansion options. It is well-suited for AI applications requiring intensive computing, such as vision systems and mobile robotics. Seeed Studio 102991695

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

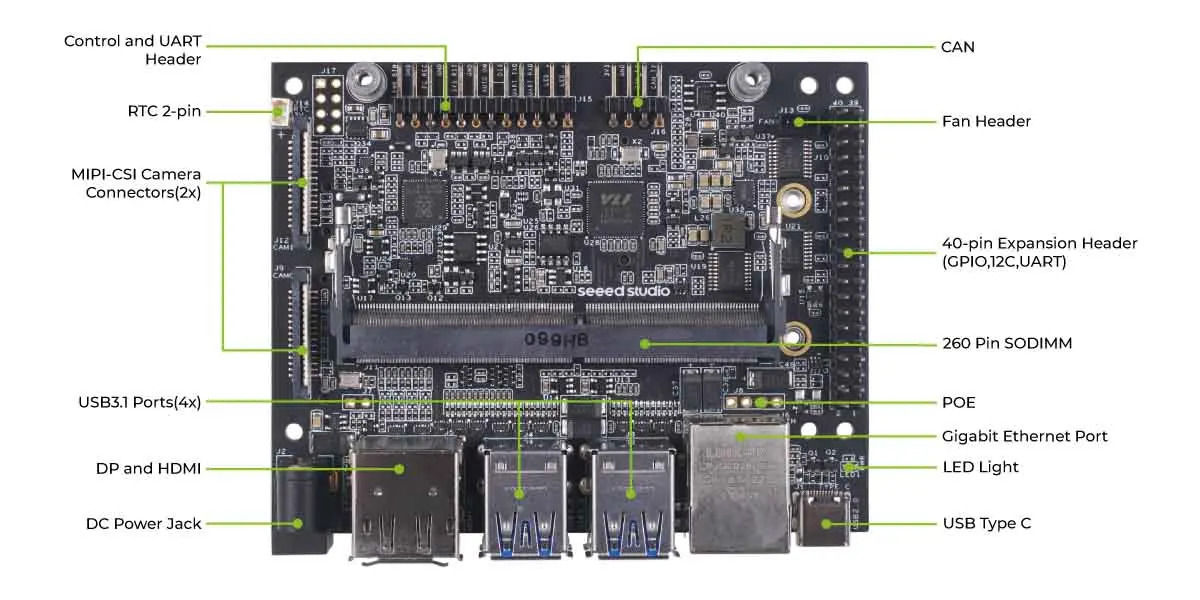

The reComputer J202 board is a hardware-compatible solution to the original Jetson Xavier NX carrier board, offering extended functionality for Jetson Xavier NX, Jetson Nano, and Jetson TX2 NX modules. It features four USB 3.1 Type-A ports (up to 10 Gbps for Xavier NX, 5 Gbps for Nano), a USB 2.0 Type-C device port, an M.2 Key M slot for SSDs, and an M.2 Key E slot for wireless communication modules. Integrated connectors include Gigabit Ethernet, HDMI 2.1, DisplayPort, two CSI camera interfaces, CAN, RTC, and a 40-pin GPIO header compatible with Raspberry Pi. Its compact size and mounting holes allow for use in both desktop devices and wall-mounted installations. The board is suitable for projects in video analytics, robotics, and vision systems powered by AI.

Properties

  • Compatible with Jetson Xavier NX, Jetson Nano, and Jetson TX2 NX
  • 4× USB 3.1 Type-A (10 Gbps for Xavier NX, 5 Gbps for Nano)
  • 1× USB 2.0 Type-C (device mode)
  • 1× RJ-45 Gigabit Ethernet (10/100/1000M)
  • 1× HDMI 2.1
  • 1× DisplayPort
  • 2× CSI
  • 1× CAN

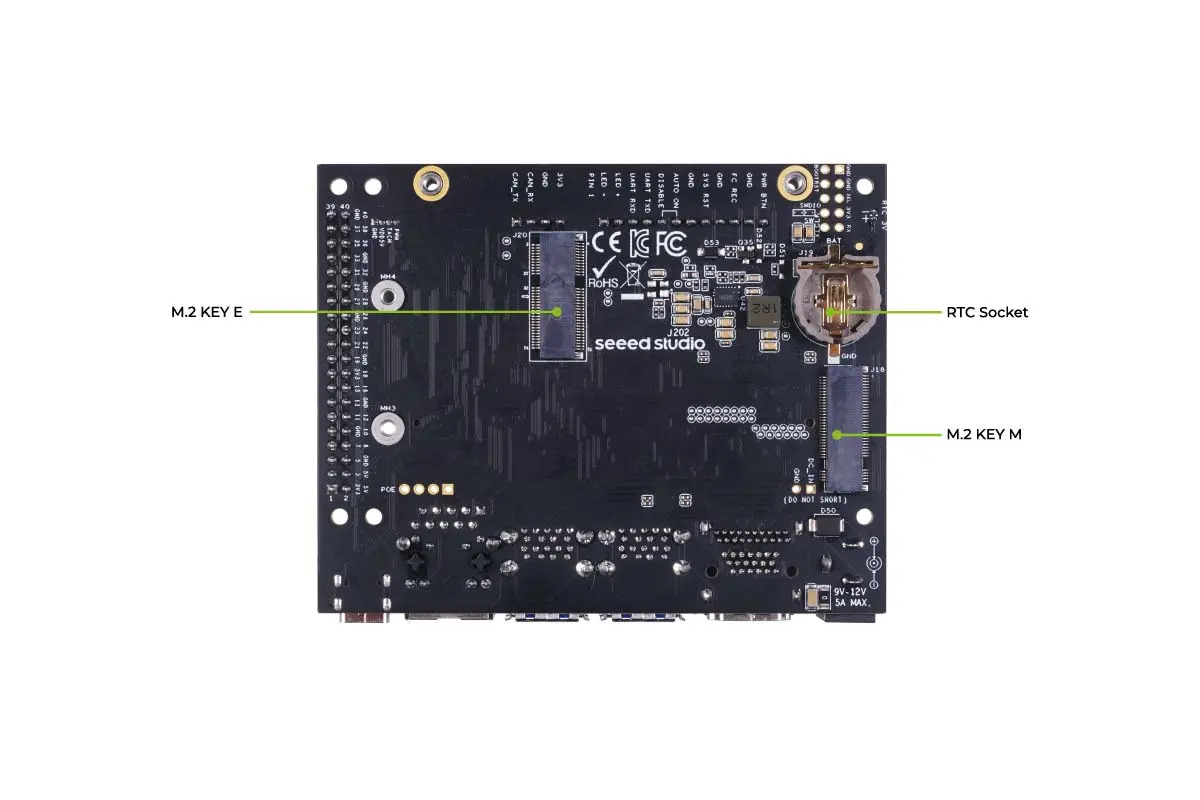

  • 1× M.2 Key M slot (SSD)
  • 1× M.2 Key E slot (WiFi/Bluetooth modules)
  • 1× fan connector
  • 1× 40-pin GPIO header (Raspberry Pi compatible)
  • 1× 12-pin control connector with UART
  • 1× RTC connector (2-pin)
  • Power supply: 12 V / 5 A
  • Dimensions: 100 × 80 mm
  • Operating temperature range: 0°C to 60°C
  • Desktop or wall mounting

Included

  • reComputer J202 main board ×1
  • 12 V / 5 A power supply (5.5 mm / 2.1 mm barrel jack, without power cord) ×1
