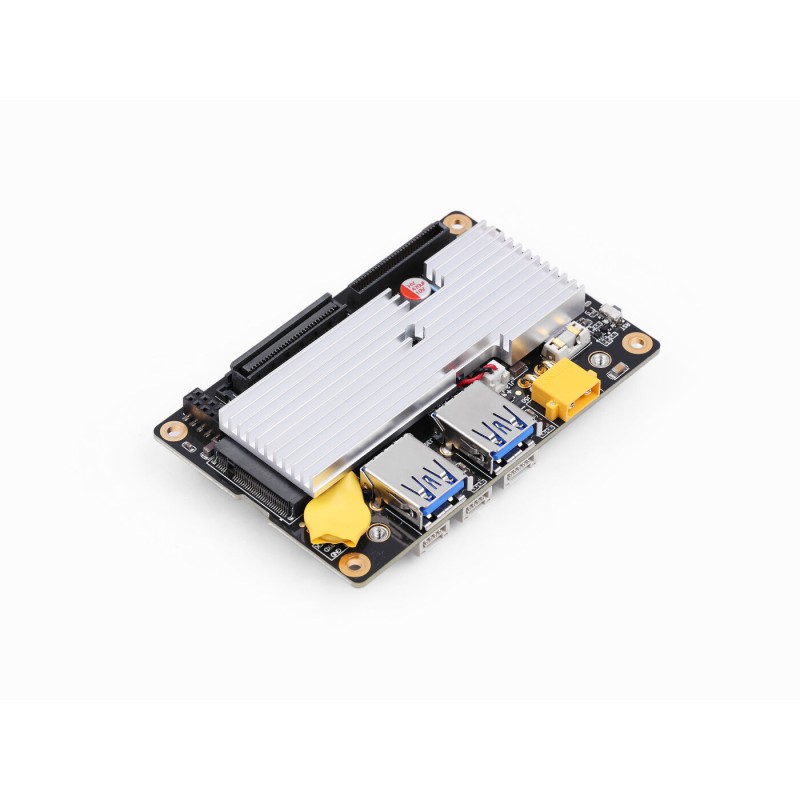

reComputer Mini Carrier Board for Jetson Orin Nano / Orin NX – Seeed Studio 114993592
ID: 1200430
zł483.24
Tax included
zł392.88 tax excl.
reComputer Mini Carrier Board provides full compatibility with Jetson Orin Nano and Orin NX as well as support for a wide range of sensors and interfaces, essential for UAV and UGV systems. Its compact design, wide power input range, and expandability with wireless communication make it an optimal platform for mobile AI applications. Seeed Studio 114993592
Description
The reComputer Mini Carrier Board weighing 80 g was designed for mobile and autonomous applications in UAVs and UGVs, providing full compatibility with NVIDIA Jetson Orin Nano and Orin NX modules. It enables support for multiple sensors – from RGB and infrared cameras to LiDAR and 3D cameras – supporting navigation, obstacle avoidance, and real-time object detection. Equipped with UART, Ethernet, and CAN interfaces (via the extension board), it allows direct connection to flight controllers and peripherals. Support for a wide input voltage range (4S–14S, XT30 DC-IN, up to 54 V) makes it especially useful in battery-powered systems. Thanks to M.2 slots, expansion with NVMe SSDs and Wi-Fi/Bluetooth modules is possible, as well as connecting an external 4G/5G modem for real-time image and data transmission.
Properties
- Compatibility: Jetson Orin Nano and Orin NX
- Sensor support: RGB, IR, 3D cameras, LiDAR, GPS, IMU
- Storage: 1x M.2 Key M PCIe (NVMe SSD 2242, not included)
- Networking: 1x M.2 Key E for Wi-Fi/Bluetooth module*
- 2x USB 3.2 Type-A (10 Gbps)
- 1x USB 3.2 Type-C (Host, DP 1.4)
- 1x USB 2.0 Micro-B (Device)
- 1x USB 2.0 JST-5pin (Host)
- UART + Debug UART
- RTC 2-pin
- Expansion connectors: 2x 60-pin high-speed, 1x 10-pin power
- Power supply: XT30 DC-IN, 12–54 V (4S–14S)
- Dimensions: 56 × 88 × 17 mm
- Weight: 80 g
- Installation: desktop or wall mounting
- System: JetPack (supports latest versions)
- Operating Temperature: -10°C to 50°C
Included
- Seeed Carrier Board (reComputer Mini)
- XT30 to DC adapter
- Micro USB cable
