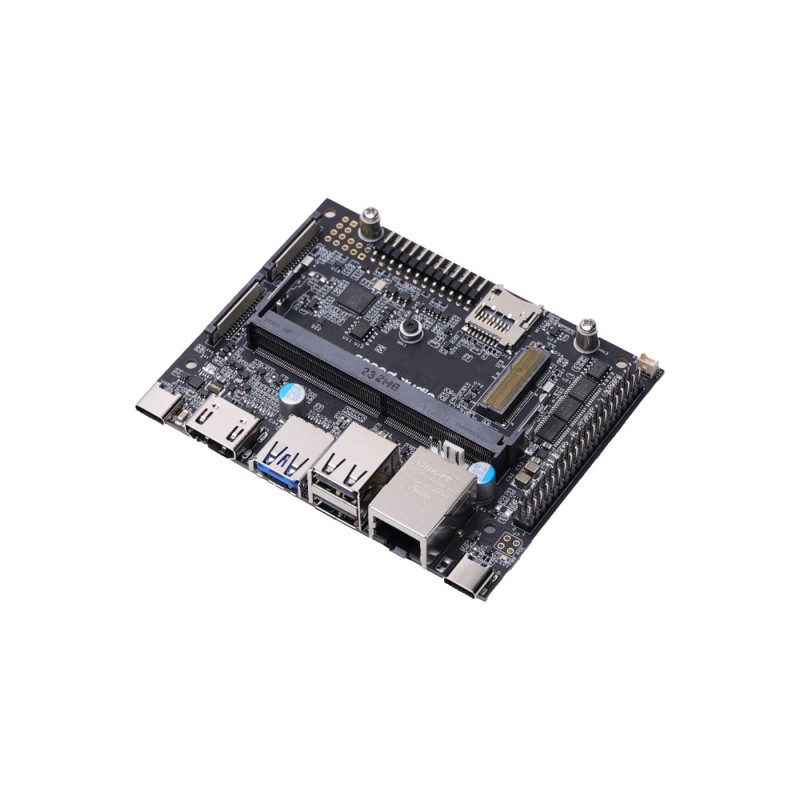

reComputer J101 – expansion board for Jetson Nano – Seeed Studio 102991694
search
  • reComputer J101 – expansion board for Jetson Nano – Seeed Studio 102991694
ID: 1200448
zł345.17
Tax included

zł280.63 tax excl.

The reComputer J101 board Seeed Studio 102991694 provides a functional and compact environment for working with Jetson Nano, offering a rich set of ports and support for multiple communication standards. It is well-suited for projects in mobile robotics, video analytics, and image processing with artificial intelligence. Seeed Studio 102991694

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The reComputer J101 Seeed Studio board is designed specifically for Jetson Nano modules, providing a compact and functional platform for AI and robotics project development. It features a microSD card slot as the main storage medium and an M.2 Key E PCIe 2230 slot for wireless modules. The board includes USB ports: one USB 3.0 Type-A (5 Gbps), two USB 2.0 Type-A, and two USB Type-C ports – one for power and one for device mode. It is equipped with two CSI connectors for cameras, HDMI, a 3.5 mm audio jack, two microphones, two speaker outputs, and a speaker feedback connection. Additionally, it has a 40-pin GPIO header, a 12-pin control connector, a 5 V PWM fan header, and an RTC connector. The board supports 5 V power via USB-C and operates within a temperature range of -25°C to 65°C.

Properties

  • Compatibility: Jetson Nano
  • 1× microSD card slot (48 MHz)
  • 1× M.2 Key E PCIe 2230 slot (WiFi/Bluetooth modules)
  • 1× USB 3.0 Type-A (5 Gbps)
  • 2× USB 2.0 Type-A
  • 1× USB Type-C (power)
  • 1× USB Type-C (device mode)
  • 2× CSI
  • 1× HDMI
  • 1× 5 V PWM fan header
  • 1× 3.5 mm audio jack
  • 2× microphones
  • 2× speaker outputs
  • 1× speaker feedback
  • 1× 40-pin GPIO header
  • 1× 12-pin control connector
  • 1× 2-pin RTC connector
  • 1× reserved RTC socket
  • Power supply: 5 V / 3 A via USB Type-C
  • Dimensions: 100 × 80 mm
  • Operating temperature range: -25°C to 65°C
