reServer Industrial J501 is an industrial-grade mainboard for Jetson AGX Orin, offering up to 275 TOPS of AI performance and a wide range of communication interfaces. With support for GMSL cameras, 10G Ethernet, and M.2 slots, it enables the development of advanced robotic, analytical, and industrial systems with edge AI capabilities. Seeed Studio 102991854

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The reServer Industrial J501 mainboard was designed to support NVIDIA Jetson AGX Orin modules, offering up to 275 TOPS of computing power – 8 times more than Jetson AGX Xavier. It supports power consumption in the range of 15–60 W and provides a rich set of communication interfaces, including 10G Ethernet, USB 3.1, SATA, CAN, RS232/422/485, and M.2 slots for SSD, Wi-Fi, Bluetooth, and 5G. The board supports up to 16 MIPI CSI-2 lanes, and with an additional GMSL extension board, up to 8 GMSL cameras can be connected simultaneously. With support for JetPack 6 and NVIDIA Isaac and Metropolis platforms, it enables the development of advanced autonomous, robotic, and vision systems in industry, logistics, and healthcare.

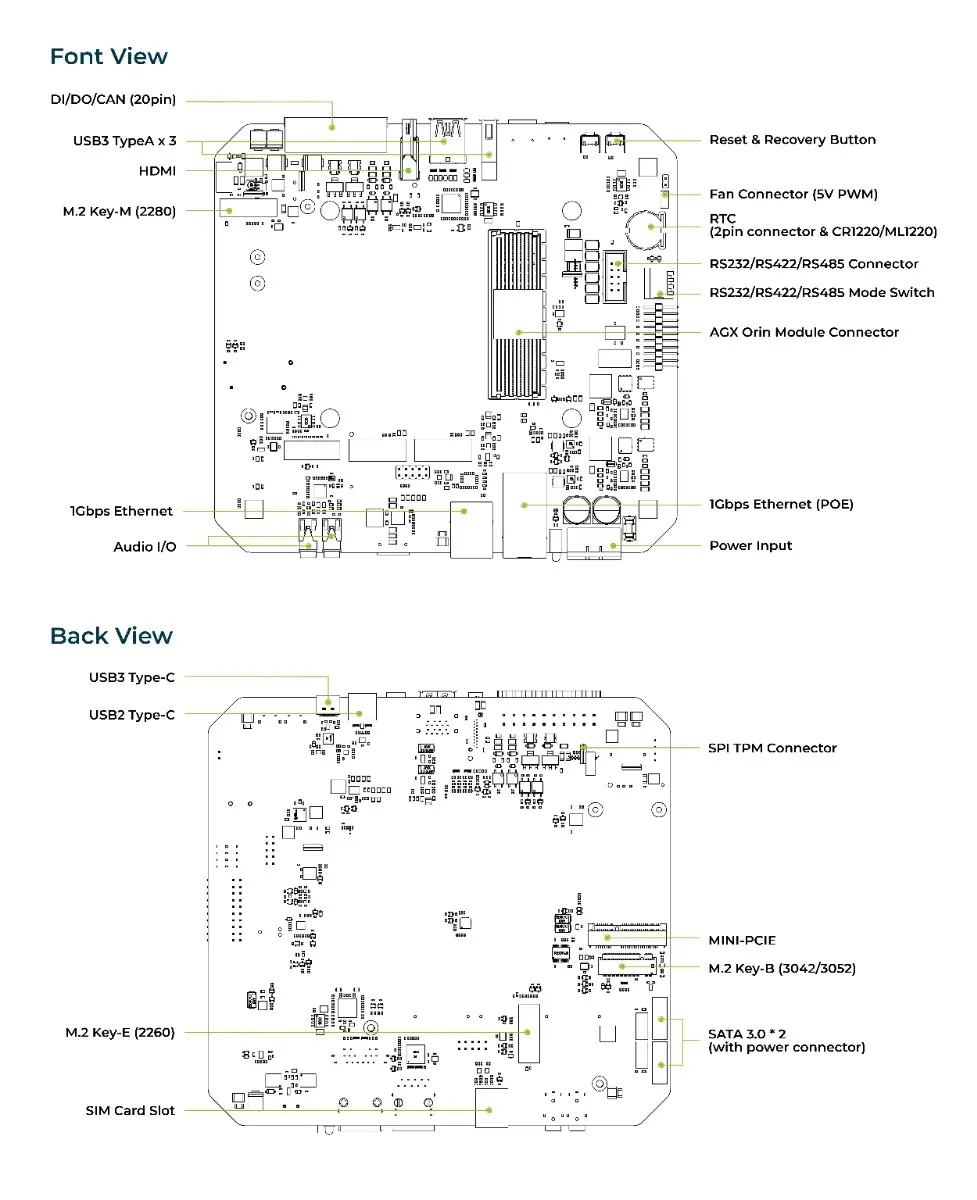

Properties

  • Compatibility: NVIDIA Jetson AGX Orin 32 GB / 64 GB
  • AI Performance: up to 275 TOPS
  • CPU: 12-core Arm Cortex-A78AE (32 GB – 8 cores)
  • GPU: NVIDIA Ampere architecture, up to 2048 CUDA cores and 64 Tensor cores
  • Memory: up to 64 GB LPDDR5 (256-bit, 204.8 GB/s)
  • 1x M.2 Key M (PCIe 4.0 for NVMe SSD)
  • 2x SATA III (6 Gb/s)
  • 64 GB eMMC 5.1
  • 1x M.2 Key E for Wi-Fi/Bluetooth
  • 1x M.2 Key B for 5G (3042/3052)
  • 1x Mini PCIe for LoRaWAN/4G
  • 1x Nano SIM slot
  • 1x RJ45 GbE (LAN0)
  • 1x RJ45 10GbE (LAN1)
  • 3x USB 3.1 Type-A
  • 1x USB 3.1 Type-C (Host)
  • 1x USB 2.0 Type-C (Device)
  • 4x DI, 4x DO, 2x CAN
  • 1x RS232/RS422/RS485
  • 1x HDMI 2.1 (7680×4320)
  • 1x TPM 2.0 (optional module)
  • 1x RTC socket (CR1220 included) + 1x RTC 2-pin
  • Camera support: 16x MIPI CSI-2, expandable with 8x GMSL using extension board
  • Power supply: DC 12–36 V (terminal block), 24 V/5 A adapter included
  • Dimensions: 176 × 163 mm
  • Weight: 225 g (without Jetson module)
  • Operating temperature: -20°C to 60°C
  • Certifications: CE, FCC, UKCA, KC, RoHS, REACH

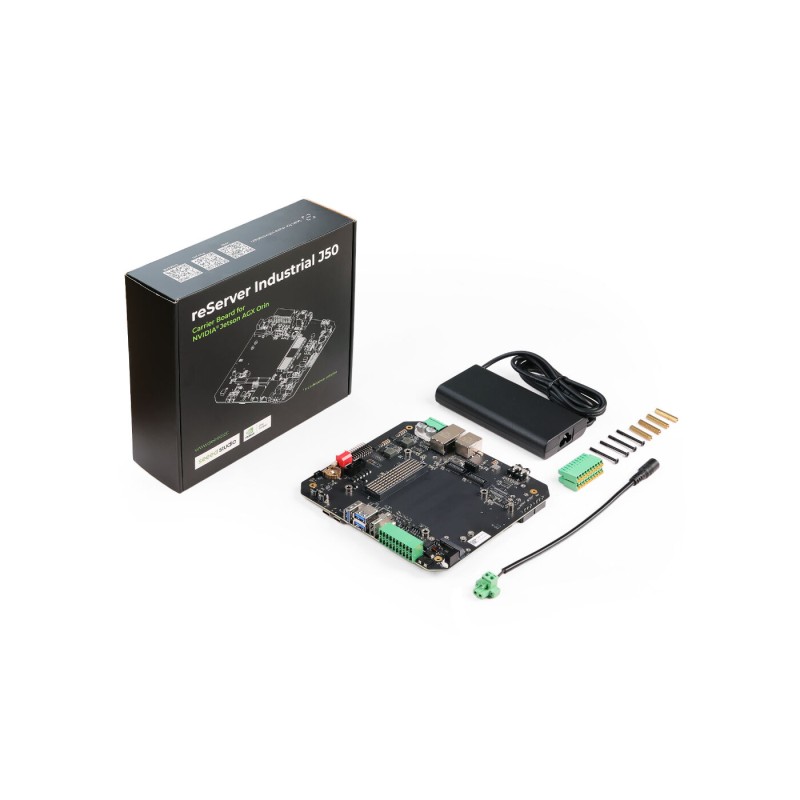

Included

  • reServer Industrial J501 Carrier Board for Jetson AGX Orin ×1
  • AC 120 W power supply (without power cord) ×1
  • 20-pin terminal connector ×1
  • 2-pin terminal connector ×1
