reComputer J401 – open-source expansion board for Jetson Orin Nano / Orin NX – Seeed Studio 102110769
search
  • reComputer J401 – open-source expansion board for Jetson Orin Nano / Orin NX – Seeed Studio 102110769
ID: 1200443
zł809.60
Tax included

zł658.21 tax excl.

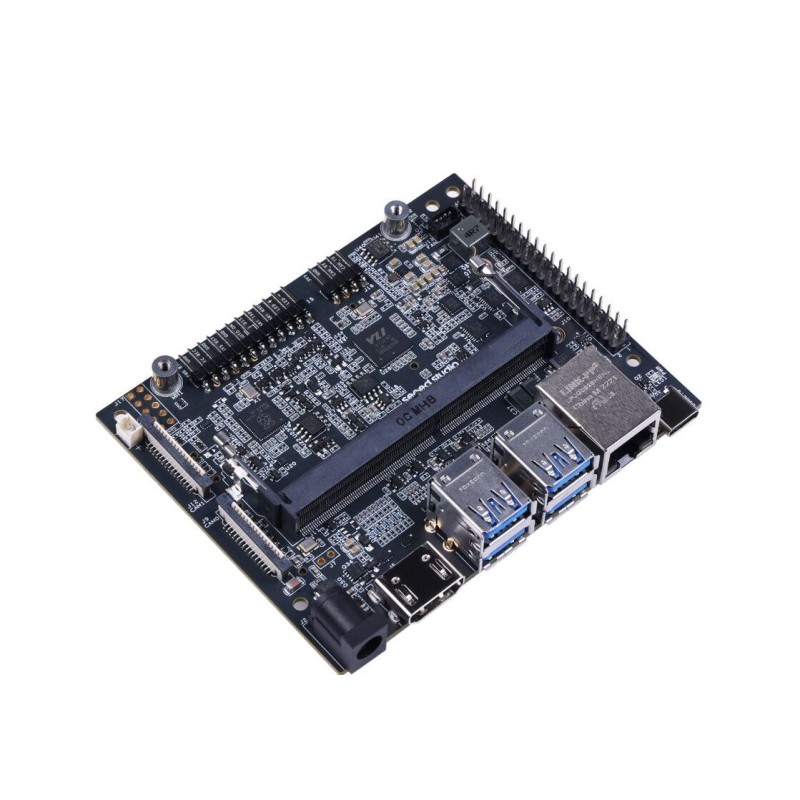

The reComputer J401 board Seeed Studio 102110769 offers extensive functionality for Jetson Orin Nano and Orin NX modules, providing a rich set of communication interfaces and expansion options. It is suitable for AI projects requiring high computing power, such as video analytics, vision systems, and autonomous mobile robots. Seeed Studio 102110769

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The reComputer J401 board is an advanced expansion platform for NVIDIA Jetson Orin Nano and Orin NX modules, enabling full utilization of their computing power of up to 100 TOPS. It provides a wide range of communication interfaces, including 4× USB 3.2 Type-A, USB 2.0 Type-C, HDMI 2.1, Gigabit Ethernet, CAN, and two MIPI CSI-2 connectors for cameras. It supports storage expansion via an M.2 Key M slot for NVMe SSDs and wireless connectivity via an M.2 Key E slot for WiFi/Bluetooth modules. The board also includes a fan connector (5 V PWM), an RTC connector, a 40-pin GPIO header, and a 12-pin control connector with UART. Compact dimensions of 100 × 80 mm and support for desktop or wall mounting make integration in various application environments easier. The open hardware design allows full control over system modifications, making the J401 board well-suited for AI video analytics, vision systems, mobile robotics, and generative artificial intelligence projects.

Properties

  • Compatible with Jetson Orin Nano and Jetson Orin NX
  • 4× USB 3.2 Type-A (10 Gbps)
  • 1× USB 2.0 Type-C (device mode)
  • 1× RJ-45 Gigabit Ethernet (10/100/1000M)
  • 1× HDMI 2.1
  • 1× CAN
  • 2× MIPI CSI connectors (2-lane 15 pin)
  • 1× M.2 Key M slot (2280 NVMe SSD)
  • 1× M.2 Key E slot (WiFi/Bluetooth modules)
  • 1× 4-pin fan connector (5 V PWM)
  • 1× 2-pin RTC connector (CR1220, battery not included)
  • 1× 40-pin expansion header
  • 1× 12-pin control connector with UART
  • Power supply: 9–19 V DC
  • Dimensions: 100 × 80 mm
  • Operating temperature range: -10°C to 60°C
  • Desktop or wall mounting

Included

  • reComputer J401 main board ×1
  • 12 V / 5 A power supply ×1
