A608 Carrier Board for Jetson Orin NX/Orin Nano – carrier board for AI and robotics systems – Seeed Studio 105110001
search
  • A608 Carrier Board for Jetson Orin NX/Orin Nano – carrier board for AI and robotics systems – Seeed Studio 105110001
ID: 1200440
zł1,087.09
Tax included

zł883.81 tax excl.

Seeed Studio A608 Carrier Board is a carrier board for Jetson Orin NX and Orin Nano modules, offering a rich set of interfaces, support for wired and wireless networks, and broad compatibility with robotics peripherals. It is well-suited for applications such as AMRs, AI vision analytics, and generative AI systems. Seeed Studio 105110001

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

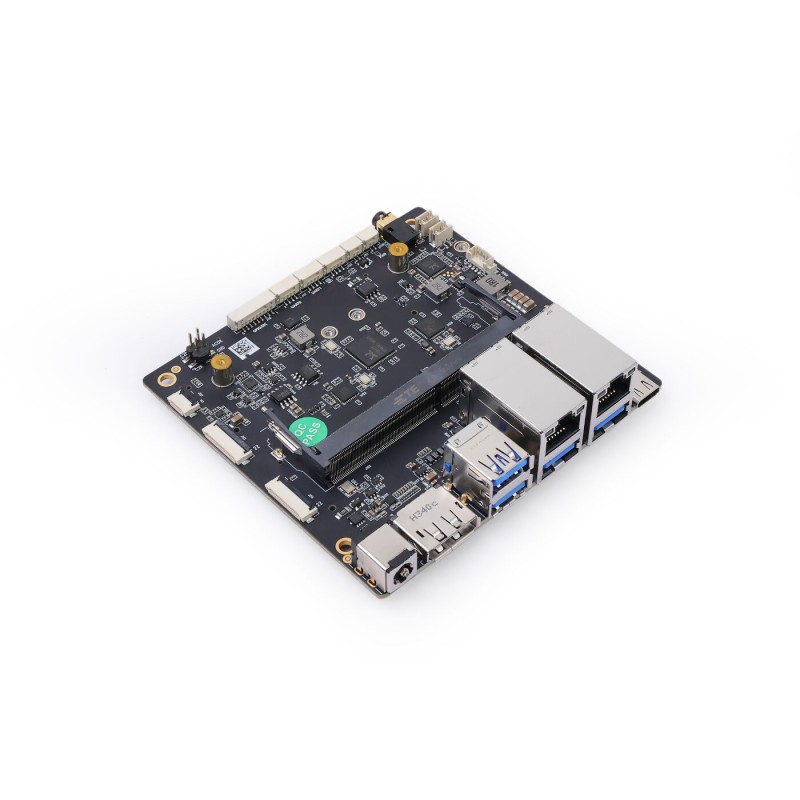

The A608 Carrier Board is a compact and efficient carrier board designed for NVIDIA Jetson Orin NX and Orin Nano modules. It integrates a wide range of communication and peripheral interfaces, enabling the development of advanced vision systems, video analytics, and generative AI applications. With JST-GH connectors, the board is fully compatible with robotics and drone solutions, while support for dual Ethernet ports and M.2 slots allows expansion with high-speed wired and wireless networks.

Power input ranging from 9 V to 20 V (max. 60 W) provides flexibility for integration in various environments. The board supports CSI camera, HDMI, and multiple I/O interfaces, making it suitable for mobile autonomous robots, machine vision systems, and edge AI applications.

Properties

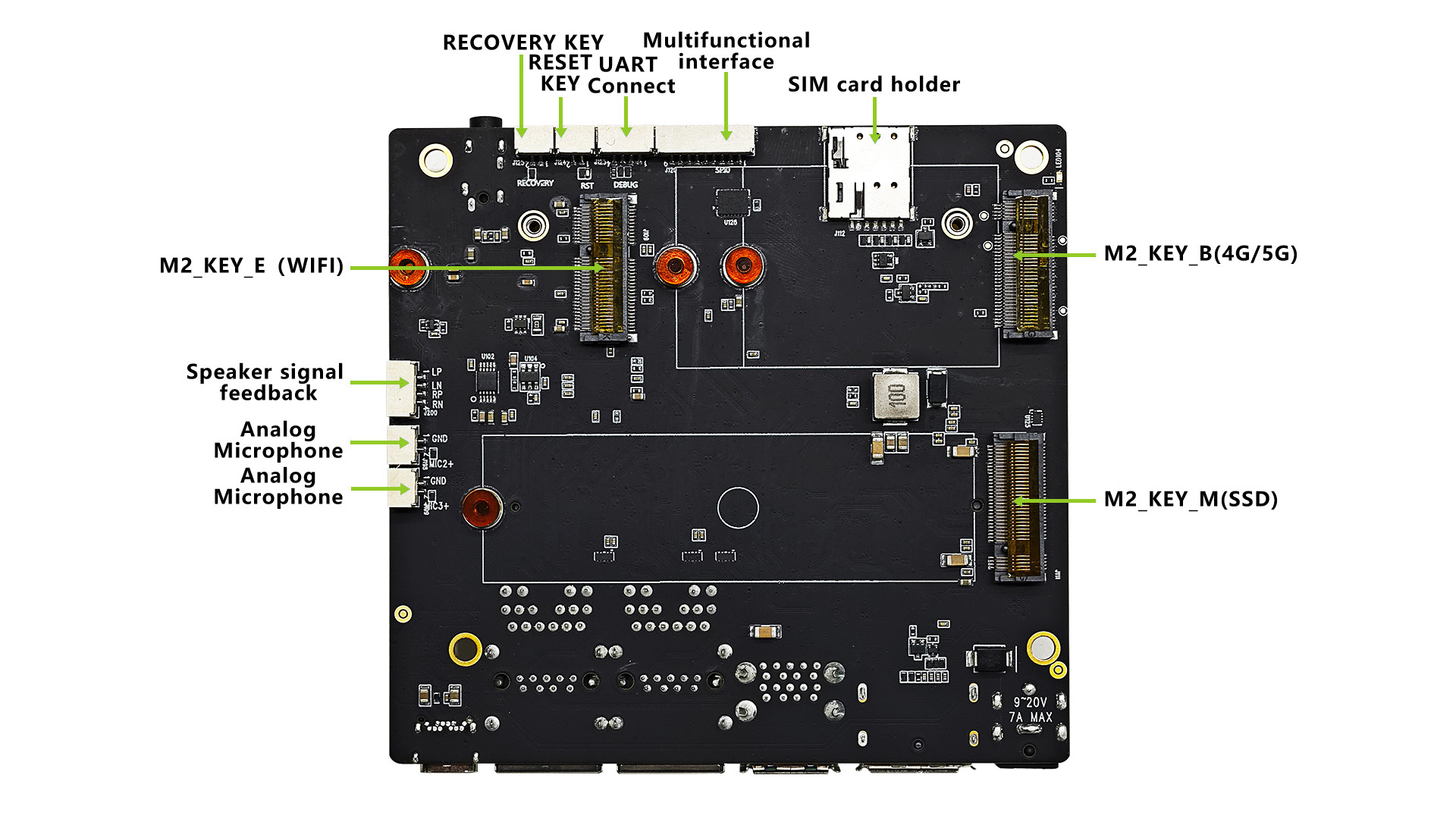

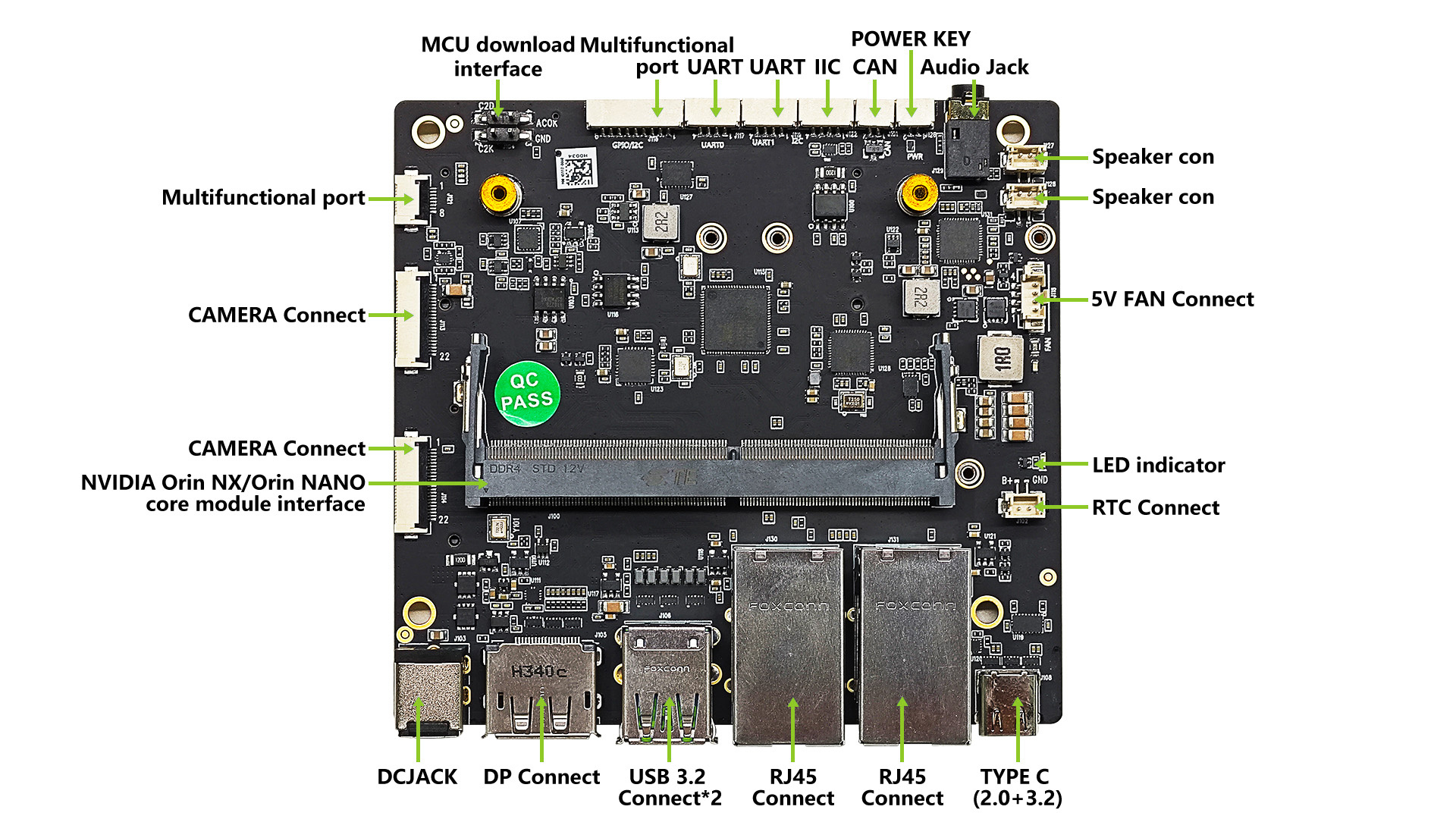

  • Compatibility: NVIDIA Jetson Orin NX, Orin Nano
  • Networking: 2× Gigabit Ethernet (10/100/1000 Mb/s)
  • 1× M.2 Key M (2242 NVMe SSD)
  • 1× M.2 Key E (Wi-Fi)
  • 1× M.2 Key B (4G/5G)
  • 4× USB 3.2 Type-A (integrated with USB 2.0)
  • 1× USB 2.0 + 3.2 Type-C
  • Camera: 1× CSI (15-pin)
  • Audio: 3.5 mm jack output, 2× MIC, 2× SPEAKER, 1× feedback speaker
  • Display: 1× HDMI
  • 2× I²C
  • 1× SPI
  • 1× CAN FD
  • 2× UART + 1× debug UART
  • 7× IO 3.3 V
  • Buttons: Power, Reset, Recovery
  • Cooling: 1× fan connector (5 V PWM)
  • RTC: 1× 3 V RTC
  • Power: 9–20 V DC (max. 60 W)
  • Dimensions: 101.5 × 95 mm
  • Operating temperature: -25°C to +65°C

Included

  • A608 Carrier Board for Jetson Orin NX/Orin Nano ×1
  • 19 V/4.74 A power supply (5.5/2.5 mm jack, without power cord) ×1
  • 2-pin Dupont female cable ×4
  • 4-pin Dupont female cable ×4
  • 9-pin Dupont female cable ×2
