reComputer Robotics J401 – Carrier Board mainboard for Jetson Orin Nano / Orin NX – Seeed Studio 114110327
ID: 1200431
zł1,000.24
Tax included
zł813.20 tax excl.
reComputer Robotics J401 is an industrial-grade mainboard for Jetson Orin Nano and Orin NX modules, providing up to 157 TOPS of AI performance and a rich set of communication interfaces. A solution dedicated to applications in robotics, automation, smart retail, and video analytics. Seeed Studio 114110327
Description

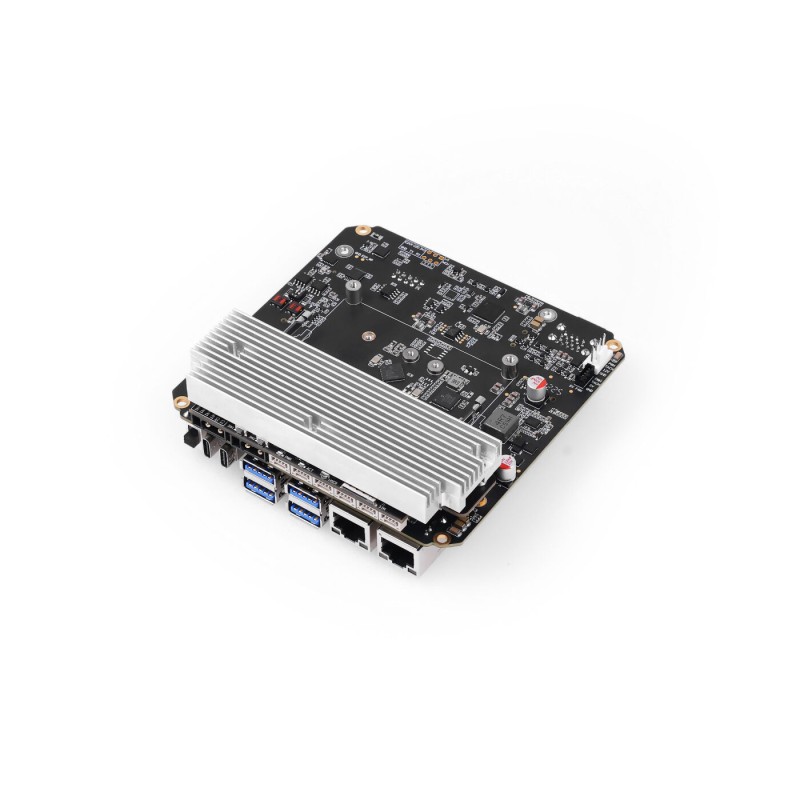

The reComputer Robotics J401 mainboard was designed for advanced robotics, supporting NVIDIA Jetson Orin Nano and Orin NX modules in Super/MAXN mode with performance of up to 157 TOPS. The design integrates a rich set of interfaces, including 6x USB 3.2, dual Gigabit Ethernet, 2x CAN, UART, I²C, and optional GMSL2 for cameras. It supports M.2 expansion modules (Key M, Key E, Key B) for SSDs, Wi-Fi/Bluetooth connectivity, and 5G networking. Power is supplied through an XT30 connector in the 19–54 V range, while JetPack 6.2 with Linux BSP ensures AI deployment readiness. Its compact form and wide functionality make the board a central element of autonomous systems such as mobile robots, smart retail solutions, industrial automation, and video analytics.
Properties
- Compatibility: NVIDIA Jetson Orin Nano / Orin NX (Super/MAXN mode)
- AI Performance: up to 157 TOPS
- Supported power modes: 7 W, 10 W, 15 W, 20 W, 25 W, 40 W
- Storage: 1x M.2 Key M PCIe for SSD
- 1x M.2 Key E for Wi-Fi/Bluetooth
- 1x M.2 Key B for 5G module
- Networking: 2x RJ45 Gigabit Ethernet
- 6x USB 3.2 Type-A (5 Gbps)
- 1x USB 3.0 Type-C (Host / DP 1.4)
- 1x USB 2.0 Type-C (Device / Debug)
- 2x CAN (XT30 and JST)
- 2x I²C (4-pin GH-1.25)
- 1x UART (4-pin GH-1.25)
- 1x RTC 2-pin + RTC socket
- Camera: 1x GMSL2 (mini fakra, optional extension board)
- Power Supply: XT30 (19–54 V, XT30–5525 cable included)
- Dimensions: 115 × 115 × 38 mm
- Weight: 200 g
- Installation: desktop, wall-mounted
- Operating Temperature:
- -20°C to 60°C (25 W mode)
- -20°C to 55°C (MAXN mode)
- System: JetPack 6.2 (Linux BSP)
- Certifications: CE, FCC, UKCA, KC, RoHS, REACH
Included
- reComputer Robotics J401 Carrier Board ×1
- Power supply and JST extension board ×1
- XT30–DC cable ×1
- USB Type-A to Type-C cable ×1
- Heatsink for extension board ×1
- M3×30 standoffs ×5
- M3 hex nuts ×5
- CM2.5×L4 screws for Jetson module and M.2 Key M ×3
- CM2×3.0 screw for M.2 Key E ×1
- M2×2.0 standoff for M.2 Key B ×1
- CM3×4.0 screw for M.2 Key B ×1
- User manual ×1
1200431
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
reServer J3010 is a fanless NVR server with a Jetson Orin Nano 8GB module, designed for AI applications in industry, surveillance, and video analytics systems. It offers high processing performance, a wide range of interfaces, and the ability to integrate with IP cameras and IoT systems at the network edge. Seeed Studio 114110249
zł4,787.97
4 weeks
No product available!
NVIDIA kit with NVIDIA Carmel ARMv8.2 CPU and NVIDIA Volta graphics. It has LPDDR4 16GB RAM memory, Ethernet interface, DisplayPort, HDMI and MIPI-CSI camera connectors. Waveshare JETSON-XAVIER-NX-16G-DEV-KIT-EU
zł4,554.14
4 weeks
No product available!
Minicomputer with built-in NVIDIA Jetson Xavier NX module with 8 GB RAM. In an aluminum housing, it has the JetPack installed. Seeed Studio 110061381
zł4,799.00
4 weeks
No product available!
Minicomputer with built-in NVIDIA Jetson Xavier NX module with 16 GB RAM. In an aluminum housing, it has the JetPack installed. Seeed Studio 110061401
zł4,941.88
4 weeks
No product available!

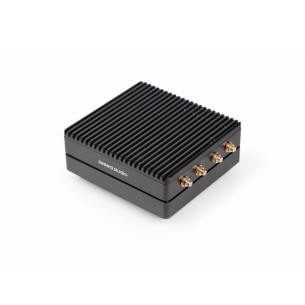

reComputer J3011B with the NVIDIA Jetson Orin Nano 8GB module offers AI performance of up to 67 TOPS in super mode and an extensive set of interfaces for wired and wireless communication. A compact solution for deployments in smart city systems, industry, and energy. Seeed Studio 114993487
