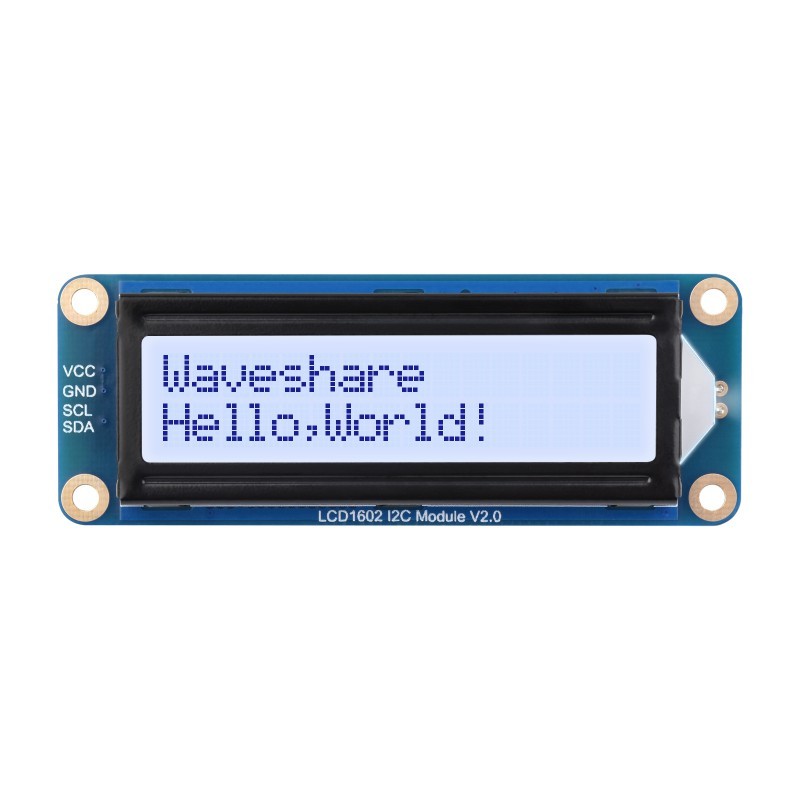

LCD1602 I2C module gray 2×16 alphanumeric - Waveshare 30495
ID: 1197702
5902186303775
zł36.16
Tax included
zł29.40 tax excl.
LCD1602 I2C Module Waveshare 30495 (gray) with a two-line 16×2 character display, adjustable backlight, and I2C interface offers a cost-effective and GPIO-saving solution for presenting text information in microcontroller projects. Compatibility with popular platforms and low power consumption make it a versatile component for HMI systems, measurement devices, and automation.
Description
The LCD1602 I2C module features a 16×2 character display with a gray background and black characters, enabling compact text data presentation. Communication via the I2C interface requires only two signal lines, making it ideal for applications with a limited number of available GPIO pins.
The module is compatible with both 3.3 V and 5 V power supplies, offering versatility and easy integration with platforms such as Raspberry Pi, Raspberry Pi Pico, Jetson Nano, ESP32, Arduino, and STM32. The AiP31068 controller manages the display, while the SN3193 controller enables software-adjustable backlight brightness.
Features
- Character count: 16 × 2
- Interface: I2C
- Power supply: 3.3 V ~ 5 V
- LCD controller: AiP31068
- Backlight controller: SN3193
- Backlight color: gray
- Character color: black
- Backlight adjustment: yes
- Operating temperature range: -20°C ~ +70°C
- Display size: 64.5 × 16.0 mm
- Module dimensions: 87.0 × 32.0 × 13.0 mm
- Connector: PH2.0 4PIN (VCC, GND, SCL, SDA)
Included
- LCD1602 I2C Module (Gray) x1
- PH2.0 4PIN cable x1
1197702
Data sheet
- Screen type
- LCD alfanumeric
- Diagonal (inch)
- Nie dotyczy
- Resolution
- 2 x 16 characters
- Interface
- I2C
- Touch
- No
