NeoPixel stick with 8 individually addressable 5050 WWA LEDs providing warm white, cool white and amber light. The module uses an 800kHz protocol, operates from approximately 4–6V and supports daisy-chaining multiple sticks through a single data line. Adafruit 6509

24h
Available
Available quantity: 3
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

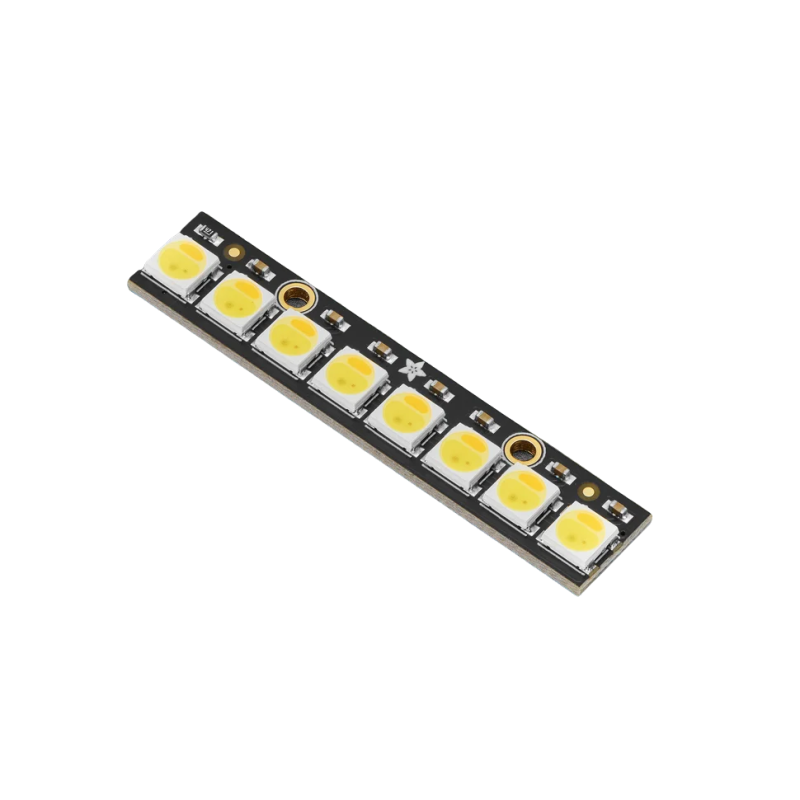

The LED module Adafruit NeoPixel Stick 8 × 5050 WWA contains 8 individually addressable NeoPixel 5050 LEDs arranged in a linear configuration on a PCB. The WWA version provides three light channels: warm white, cool white and amber. The module can be used for decorative lighting, indicators, signaling and projects requiring adjustable white-light characteristics.

Each LED includes an integrated driver, allowing every light point to be controlled independently through a single data line. Multiple sticks can be daisy-chained by connecting the data output of one module to the input of the next, allowing a larger number of LEDs to be controlled from a single microcontroller pin.

NeoPixel communication uses an 800kHz timing-sensitive protocol. The PWM frequency is approximately 400Hz. Real-time microcontrollers such as AVR, Arduino, PIC and other platforms supporting the NeoPixel protocol can be used for control.

The module is designed for a nominal 5V DC supply, with the manufacturer specifying an operating range of approximately 4–6V. Each LED uses approximately 12mA constant-current drive. Mounting holes on the PCB simplify installation in enclosures and prototype assemblies.

Features

  • Type: addressable NeoPixel LED stick
  • Number of LEDs: 8
  • LED type: 5050 WWA
  • Light tones
    • Warm white
    • Cool white
    • Amber
  • Control: individually addressable LEDs
  • Control interface: single data line
  • Protocol frequency: 800kHz
  • PWM frequency: approximately 400Hz
  • Daisy-chain support
  • Nominal supply voltage: 5V DC
  • Supply voltage range: approximately 4–6V
  • Drive current per LED: approximately 12mA
  • Integrated LED drivers
  • PCB mounting holes
  • Manufacturer: Adafruit
  • Product ID: 6509
