RGB digital diode WS2813B 5050 with dual signal input – PLCC-6
search
  • RGB digital diode WS2813B 5050 with dual signal input – PLCC-6
  • RGB digital diode WS2813B 5050 with dual signal input – PLCC-6
  • RGB digital diode WS2813B 5050 with dual signal input – PLCC-6
ID: 579640
5902186329652
zł1.89
Tax included

zł1.54 tax excl.

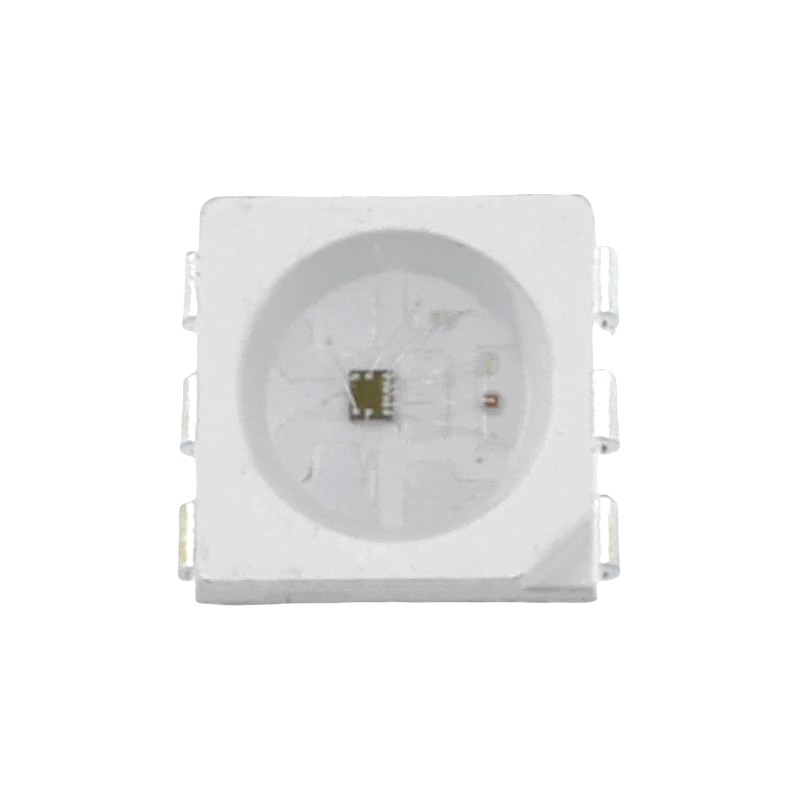

The WS2813B PLCC-6 LED diode integrates an RGB chip and controller in a single 5050 package, supports a dual signal line with transmission continuity function, and a 24-bit color depth. Used in lighting installations, peripheral devices, and multimedia systems.

24h
Available
Available quantity: 199

Description

WS2813B LEDs in a PLCC-6 package integrate an RGB chip and control circuit in a standard 5050 size, enabling the creation of externally digitally controlled pixels. The circuit supports dual signal lines (DIN and BIN), which ensures continuity of data transmission even in the event of a single pixel failure. The built-in signal shaping correction circuit eliminates distortions and enables signal transmission over a distance of more than 5 m without additional amplifying circuits.

The WS2813B supports 24-bit color depth (256 levels per channel), providing a full palette of 16,777,216 colors and a refresh rate of up to 2 kHz – sufficient for operation with HD cameras without flicker. The data transmission protocol is based on NZR mode with one input and output signal and an internal data latch circuit. The maximum transmission speed is 800 kb/s, and at 30 fps it is possible to cascade at least 1024 pixels. The lack of need for external components, such as capacitors, simplifies circuit design.

Used in decorative lighting, peripheral devices, computer equipment, entertainment systems, and consumer electronics.

Properties

  • Supply voltage: 3.7 V – 5.3 V
  • Maximum idle current: < 0.6 mA
  • Brightness: red 300–600 mcd, green 800–1500 mcd, blue 200–400 mcd
  • Wavelength: red 620–630 nm, green 510–520 nm, blue 465–475 nm
  • Transmission time: up to 300 ns
  • Data protocol: NZR, single-range
  • Reset time: > 280 μs
  • Dimensions: 5.0 × 5.4 × 1.65 mm
  • Dimensional tolerance: ±0.05 mm
  • Pin configuration: 6 pins (DIN, DO, BIN, BO, VCC, GND)
579640

Data sheet

Voltage
3,7 - 5,3 V
Colour
RGB
