NeoPixel Ring 16 × 5050 WWA LEDs 5V - Adafruit 6527
ID: 1210196
zł53.31
Tax included
zł43.34 tax excl.
NeoPixel LED ring with 16 individually addressable 5050 WWA LEDs providing warm white, cool white and amber light. The module operates from 5V, uses a single data line and supports daisy-chaining multiple rings. Adafruit 6527
Description

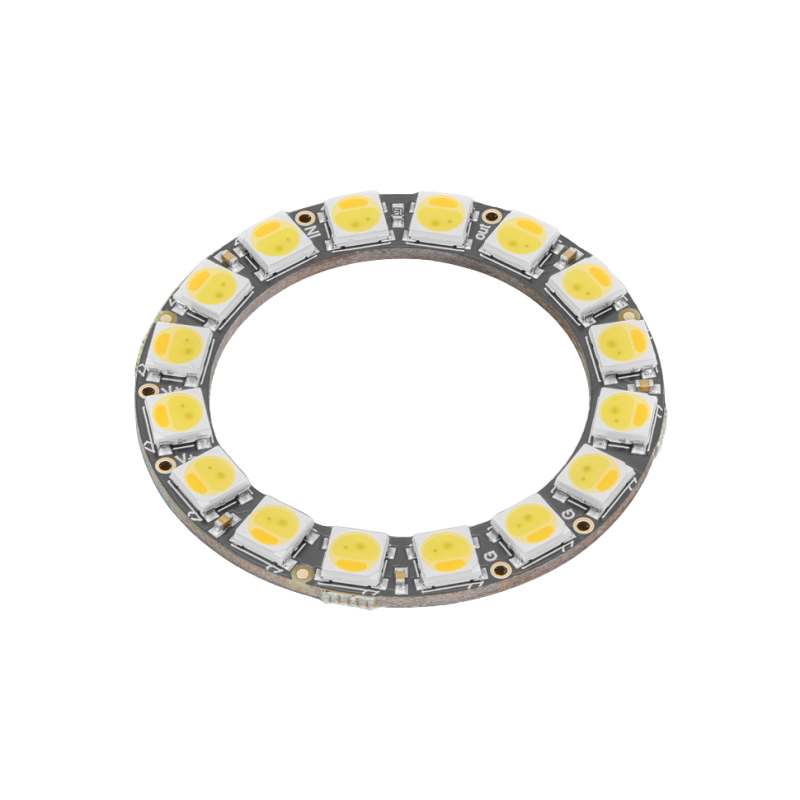

The LED ring Adafruit NeoPixel Ring 16 × 5050 WWA contains 16 individually addressable NeoPixel 5050 LEDs arranged on a circular PCB. The WWA version provides three light tones: warm white, cool white and amber, making it suitable for decorative lighting, indicators and projects requiring adjustable white-light characteristics.
Each LED includes an integrated driver, allowing individual control of every light point through a single data line. Multiple rings can be daisy-chained by connecting the data output of one module to the input of the next, allowing a larger number of LEDs to be controlled from a single microcontroller pin.
The module operates from a 5V DC supply. Each LED uses approximately 18mA constant-current drive. NeoPixel communication requires precise timing, so the manufacturer recommends a real-time microcontroller. The Adafruit NeoPixel library provides support for Arduino-based projects.
The ring measures approximately 44.3mm in outer diameter, about 3.1mm thick and weighs approximately 5.5g. Its compact form makes it suitable for control-panel illumination, indicators, wearable electronics, models and compact lighting installations.
Features
- Type: NeoPixel LED ring
- Number of LEDs: 16
- LED type: 5050 WWA
- Light tones
- Warm white
- Cool white
- Amber
- Control: individually addressable LEDs
- Control interface: single data line
- Daisy-chain support
- Supply voltage: 5V DC
- Drive current per LED: approximately 18mA
- Dimensions: approximately 44.3 × 44.3 × 3.1mm
- Weight: approximately 5.5g
- Manufacturer: Adafruit
- Product ID: 6527
1210196
Data sheet
- Voltage
- 5 V
- Colour
- Biały (regulowany)
- Outer diameter
- 44,3 mm
