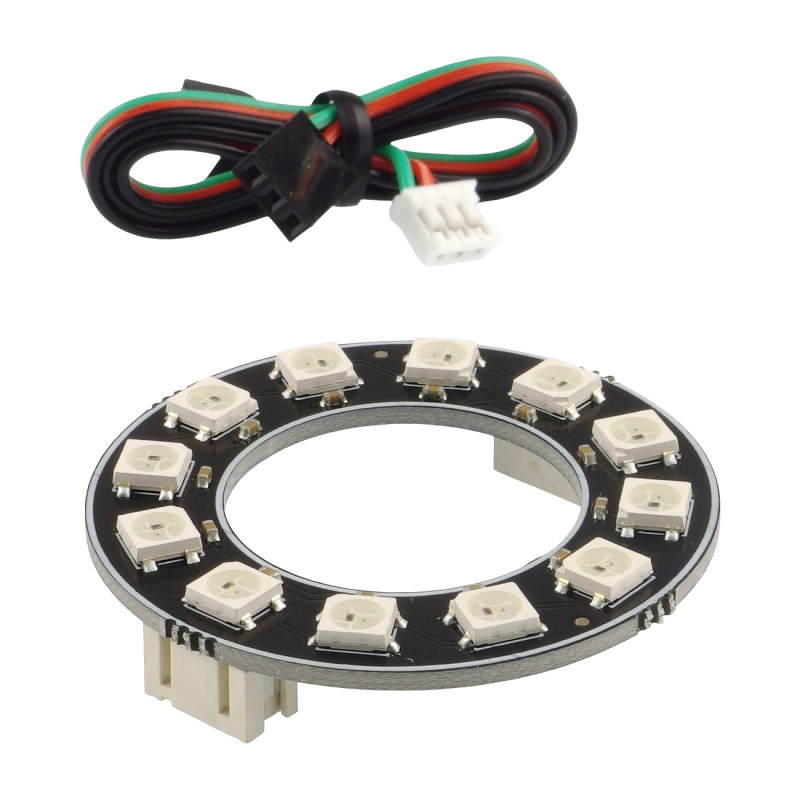

WS2812-12 RGB LED Ring - RGB light ring with WS2812B diodes
ID: 1178682
5902186310216
zł31.09
Tax included
zł25.28 tax excl.
Ring light with 12 RGB diodes WS2812B type controlled by serial signal. The module can be powered with the voltage from 3.3 V to 5 V, only one signal line is required to control it. DFRobot DFR0888-12
Description
The ring is based on RGB WS2812B diodes. They use a built-in driver that communicates via a special digital protocol, thanks to which only one pin of the microcontroller is enough to operate the module. The matrix has input and output connectors, they can be connected in series, as well as connected with a tape or other module with WS2812B diodes. The board is powered with the voltage from 3.3 V to 5 V and is equipped with a Gravity connector. Perfect as an electronic compass direction indicator.
Features
- 12 RGB WS2812B LEDs
- Supply voltage: from 3.3 V to 5 V
- Current consumption: up to 100 mA
- Each of the primary colors of the diode (R, G, B) can adopt up to 256 levels of brightness
- The possibility of obtaining a color in one of over 16.7 million color shades
- Laminate color: black
- Gravity connector
- Outer diameter: 47 mm
- Inner diameter: 26 mm
Kit contains
- WS2812-12 RGB LED Ring
- 30 cm Gravity cable
1178682
Data sheet
- Voltage
- 3,3 - 5 V
- Colour
- RGB
- Outer diameter
- 47 mm
Manufacturer
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
Responsible person
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
