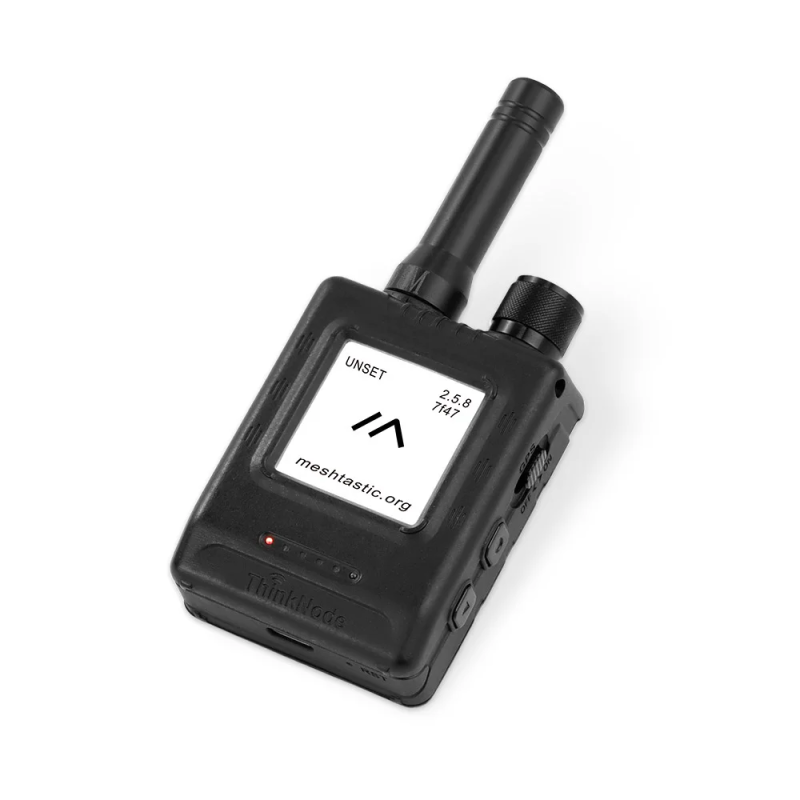

A mobile LoRa transceiver compatible with Meshtastic and MeshCore, equipped with GPS supporting GPS, GLONASS, BeiDou, and QZSS. The device utilizes a powerful ESP32-S3 microcontroller and SX1262 transceiver, ensuring stable, long-range communication in the 868 MHz band. The 1.54" EPD screen allows for convenient data display with very low power consumption, and the 1200 mAh battery ensures long operation in the field. Elecrow ThinkNode M5 Walkie-Talkie

24h
Available
Available quantity: 27

Description

ThinkNode M5 Walkie-Talkie Pro is an advanced LoRa transceiver compatible with Meshtastic and MeshCore, combining the functions of a field communicator, GPS tracker, and intelligent mesh-network module. The device is based on a powerful ESP32-S3 microcontroller, providing high computing performance and stable wireless communication.


Thanks to the built-in GPS module supporting GPS, GLONASS, BeiDou, and QZSS, users can track their location in real time, even in remote areas. The clear 1.54” EPD display allows convenient viewing of network status, messages, positioning, and system data while maintaining very low power consumption. The device works seamlessly with the official Meshtastic app, enabling configuration management, message sending, location sharing, and mesh network analysis. With its integrated LoRa antenna and high-performance SX1262 transceiver, ThinkNode M5 ensures long-range communication in the 868 MHz band with strong resistance to interference. The built-in 1200 mAh battery provides many hours of outdoor operation, making the device an ideal tool for travelers, rescue teams, and off-grid users.

The durable ABS construction ensures resistance to outdoor conditions while maintaining compact size and low weight. With an RTC module, the device supports fast GPS hot-start and can wake from low-power modes. ThinkNode M5 can function as an independent communicator in emergency situations, providing connectivity where cellular networks are unavailable. Its intuitive interface with dedicated buttons enables convenient operation even while wearing gloves, which is especially useful in extreme environments. The device is suitable for group communication, field monitoring, logistics, expeditions, and outdoor activities. With expansion capabilities and support for various wireless protocols, ThinkNode M5 is an excellent platform for both hobbyists and professionals.


Features

  • Meshtastic Compatibility
  • MeshCore Compatibility in Companion Mode
  • Reliable LoRa transmission powered by SX1262
  • Supported positioning systems: GPS, GLONASS, BeiDou, QZSS
  • 1.54” EPD display, minimum resolution 200×200 px
  • ESP32-S3 processor: dual-core LX7 up to 240 MHz, 512 KB RAM + 8 MB PSRAM
  • Built-in 4 MB Flash memory
  • External LoRa antenna for the 868 MHz band
  • Bluetooth LE / 5.4 for device configuration
  • RTC with fast start and wake-up functionality
  • Built-in 1200 mAh battery, USB-C charging
  • Low power consumption: approx. 34 μA in power-saving mode
  • Connectors:
    • USB-C
    • RP-SMA for LoRa antenna
  • Integrated buzzer, LED indicators, and control buttons
  • Durable ABS enclosure, mobile and compact design
  • Operating temperature: –10°C to 50°C
  • Dimensions: 82 × 51.6 × 26.3 mm

Kit contains

  • ThinkNode M5 LoRaWAN Gateway
  • USB-A to USB-C cable
  • LoRa RP-SMA antenna
