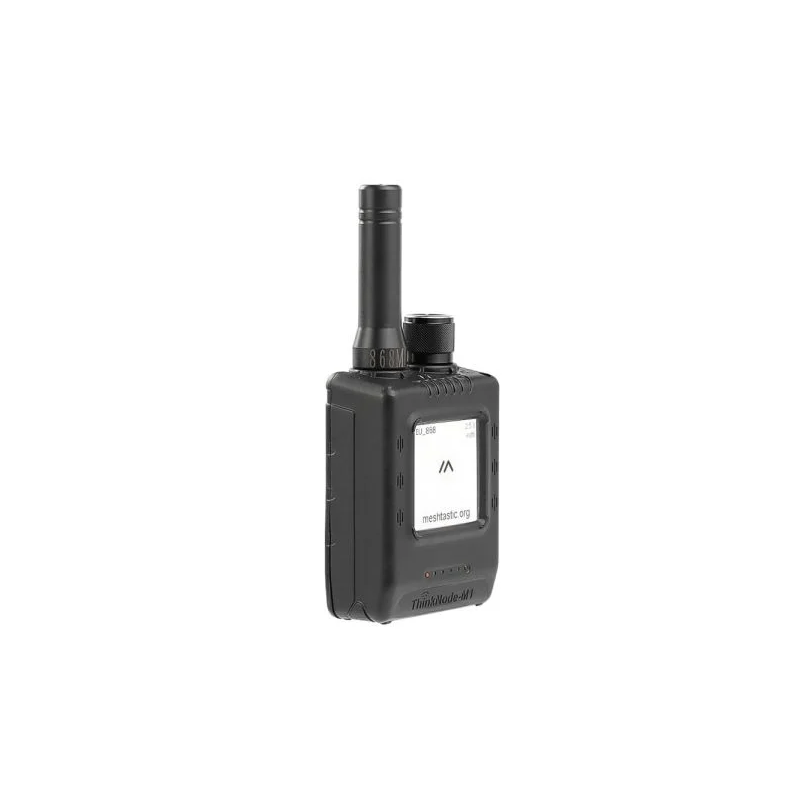

ThinkNode M1 - LoRa Meshtastic MeshCore mobile transceiver
ID: 1201154
zł289.00
Tax included
zł234.96 tax excl.
A LoRa transceiver with an nRF52840 processor and an SX1262 radio, offering stable field communication and full Meshtastic and MeshCore compatibility. The device is equipped with a GPS module supporting GPS, GLONASS, BeiDou, and QZSS, and a clear 1.54" EPD display, ideal for operation in direct sunlight. A 1200 mAh battery provides over 48 hours of operation, and an external RP-SMA antenna allows for greater range and better signal quality. Elecrow ThinkNode M1 Walkie-Talkie
Description
ThinkNode M1 is an advanced, compact LoRa transceiver designed for users who need stable, long-range communication without cellular network access. The device uses a powerful nRF52840 processor and an SX1262 radio module, ensuring reliable connectivity within the Meshtastic protocol. With a built-in GPS module supporting GPS, GLONASS, BeiDou and QZSS, the M1 enables precise positioning even in challenging outdoor conditions. The transceiver is equipped with a 1.54" low-power EPD display, delivering excellent readability in full sunlight and allowing constant monitoring of essential information. The integrated 1200 mAh battery provides over 48 hours of operation, making the device ideal for field activities. M1 is fully compatible with the Meshtastic app, enabling configuration, message exchange, map viewing and network monitoring.
The device is enclosed in a durable and compact housing, making it suitable for expeditions, rescue operations and community communication. With an external LoRa antenna, users can achieve longer range and improved signal stability. ThinkNode M1 also supports RTC, enabling fast startup and precise time synchronization. High component integration ensures reliable operation in environments lacking telecommunications infrastructure.
The M1 can operate as an independent communicator, improving group coordination, while its long battery life enhances user safety. Thanks to support for alternative firmware such as MeshCore, the device offers even greater flexibility and adaptability. The entire design focuses on stability, ease of use and maximum functionality. ThinkNode M1 is a versatile partner for wireless communication, ideal for outdoor, hobby and professional applications.
Features
- nRF52840 processor with ARM Cortex-M4F core at 64 MHz
- 256 KB RAM, 3 MB external Flash
- Fully compatible with Meshtastic firmware
- Supports the MeshCore protocol in the following modes:
- Companion
- Repeater
- Room Server
- LoRa SX1262 transceiver, EU868 / US915 bands
- LoRa transmit power: +22 dBm
- 1.54" EPD (E-ink) display, 200×200 resolution, SSD1681 driver
- GPS module: GPS / GLONASS / BeiDou / QZSS
- 1200 mAh battery, over 48 hours of runtime
- Low power consumption: 85 mA (active), approx. 5.6 µA (low-power mode)
- BLE 5.0 for configuration via Meshtastic app
- Connectors: USB-C, RP-SMA for LoRa antenna
- RTC support, buzzer, LED indicators
- Durable ABS housing, compact design
- Operating temperature: –10 to 50°C
- Dimensions: 82 × 51.6 × 26.3 mm
Kit contains
- ThinkNode M1
- USB-A to USB-C cable
- LoRa antenna
