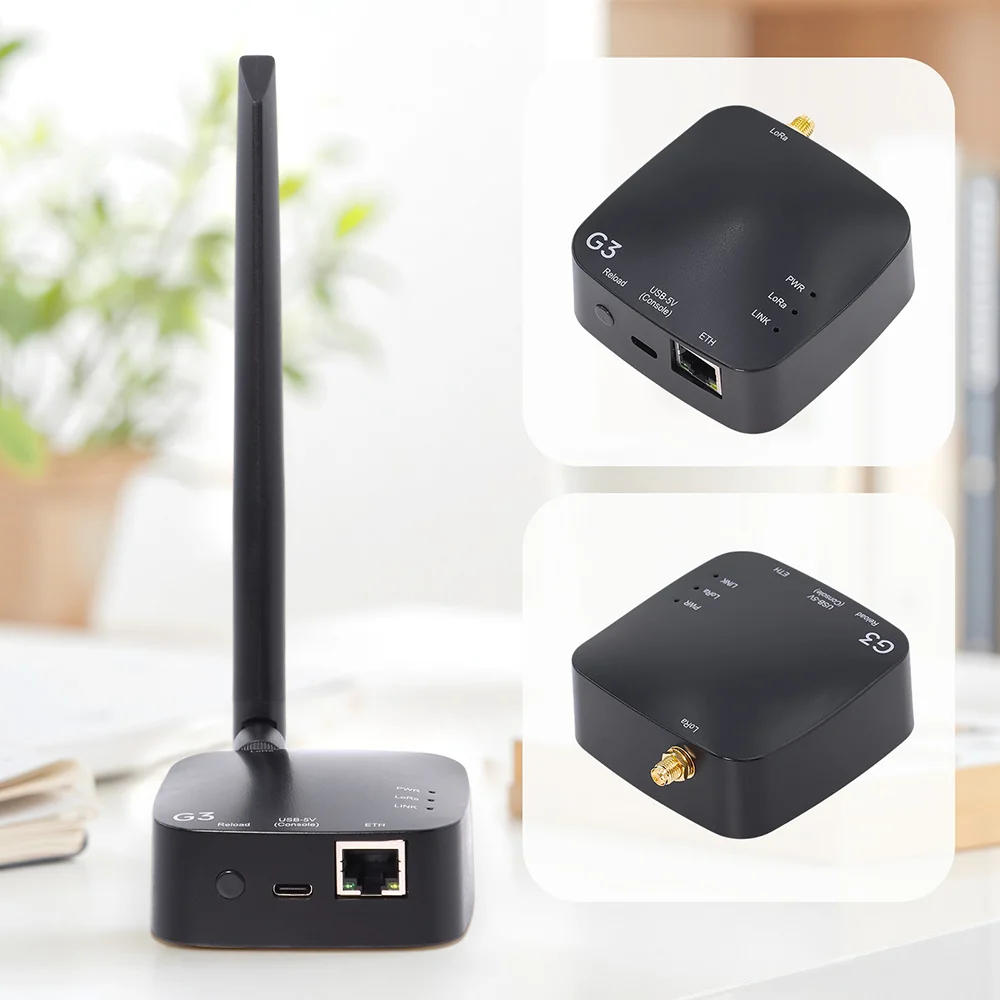

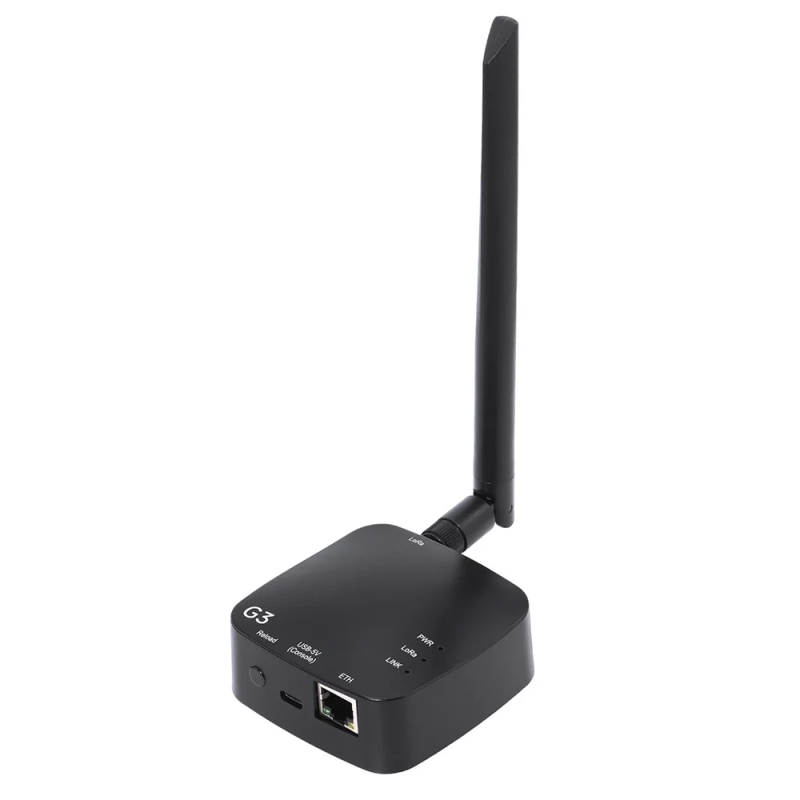

ThinkNode G3 - LoRaWAN gateway with ESP32-S3 module
ID: 1201724
zł130.96
Tax included
zł106.47 tax excl.
A LoRaWAN gateway with an ESP32-S3 processor and a Semtech SX1262 transceiver, ensuring stable, long-range transmission in IoT networks. The device supports WiFi and Ethernet connections, offers LoRa/IP protocol conversion, and easy configuration via an app or computer. Thanks to a built-in TCXO crystal, LED indicators, and reset buttons, the gateway ensures reliable operation and device status monitoring. Elecrow ThinkNode G3
Description
ThinkNode G3 is a compact and efficient LoRaWAN gateway designed for IoT and smart home applications. The device features a dual-core 240 MHz ESP32-S3 processor and a Semtech SX1262 module, providing stable long-range signal transmission with low power consumption. ThinkNode G3 supports multiple network connection options, including WiFi and Ethernet, allowing flexible deployment in various network environments. The device offers an easy configuration interface via phone or computer, as well as remote firmware updates, simplifying system management.
The G3 supports LoRa/IP protocol conversion, ensuring reliable communication between devices and the cloud. With a modern design and multifunctional base, the gateway can be mounted on walls, ceilings, or placed on a desk. ThinkNode G3 is suitable for smart cities, precision agriculture, industry, environmental monitoring, and building automation systems. It is compatible with programming languages MicroPython, C/C++ and development environments ESP-IDF and Arduino IDE, enabling easy integration and custom project development.
The device is equipped with a built-in TCXO crystal for stable transmission frequency and low power consumption, allowing long-term operation without interference. ThinkNode G3 also provides device status monitoring via LED indicators and buttons for restart and factory reset. It is essential for environmental monitoring, logistics, supply chain management, and emergency situations where reliable data transmission is critical.
With its compact size and lightweight design, the gateway is easy to carry and install anywhere. It supports multiple frequencies US915/EU868/AU915MHz and ensures stable communication even in distributed IoT networks. ThinkNode G3 is a professional solution for engineers, technology enthusiasts, and companies requiring a stable, low-power, and reliable LoRaWAN access point.
Features
- Processor: ESP32-S3 dual-core, 240 MHz
- Memory: 512 KB SRAM, 8 MB PSRAM
- Flash memory: 8 MB, ROM 384 KB
- LoRa transceiver: Semtech SX1262 (US915/EU868/AU915MHz)
- Wireless communication: WiFi 2.4GHz, Bluetooth Low Energy 5.0
- Interfaces: Ethernet RJ45, USB-C, RP-SMA (LoRa), RP-SMA (spare 4G)
- Power supply: 5V/1A via USB or lithium battery
- Power consumption: 110 mA (MCU + LoRa)
- Housing: ABS, compact design

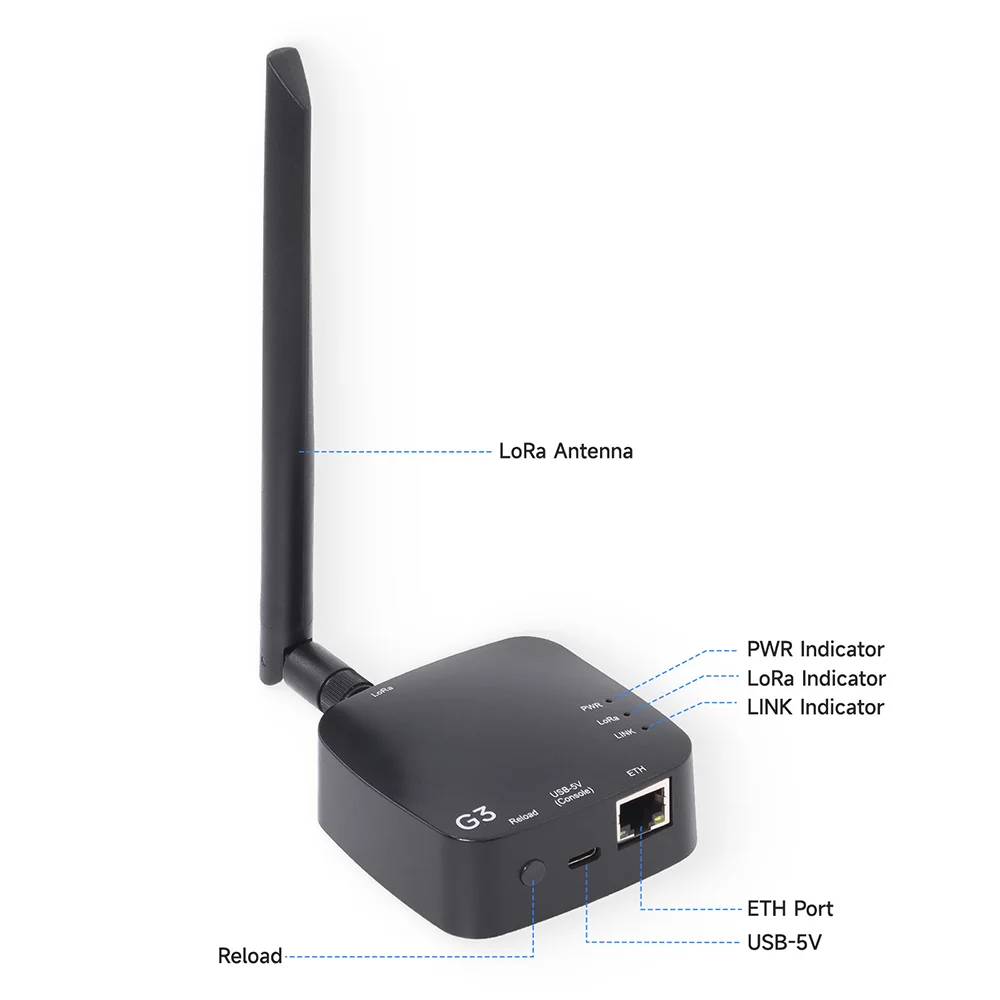

- Indicators: LED – power, LoRa, LINK
- Buttons: restart, factory reset
- Operating temperature: -20~70°C
- Storage temperature: -40~80°C
- Humidity: 10%-95% at 40°C
- Dimensions: 75 × 75 × 30 mm
- Weight: 66 g
Kit contains
- ThinkNode G3 LoRaWAN Gateway
- USB-A to Type-C cable
- Mounting base
- LoRa antenna
1201724
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
