RA-08H LoRaWan Node - development board with RP2040 microcontroller and 868MHz LoRa module
ID: 1201687
5902186331938
zł59.96
Tax included
zł48.75 tax excl.
A communication module based on the Raspberry Pi RP2040 microcontroller, designed for data transmission in the 868 MHz band. It supports point-to-point LoRa and LoRaWAN operation, offering long range and low power consumption. The board is equipped with six Crowtail interfaces, an integrated battery charging circuit, and the ability to be powered by a solar panel. Compatibility with the Arduino IDE and MicroPython makes it an ideal platform for building IoT nodes, weather stations, and environmental monitoring systems. Elecrow RA-08H LoRaWan Node
Description
RA-08H LoRaWAN Node is a high-performance communication module designed for data transmission in the 868 MHz band. The device combines the power of the dual-core Raspberry Pi RP2040 microcontroller with the capabilities of the RA-08H module, offering wireless communication across the 803–930 MHz frequency range. The board supports both LoRa point-to-point communication and LoRaWAN networking, making it a versatile solution for IoT applications, smart homes, agriculture, environmental monitoring, and logistics.
With its integrated lithium battery charging and discharging circuit and a dedicated interface for solar panel charging, the module is ideal for outdoor and mobile use. It features six Crowtail interfaces (2x analog, 2x digital, 1x UART, 1x I2C) that allow easy connection of over 150 compatible sensor and accessory modules. This enables quick creation of complete LoRa nodes such as a weather station or remote monitoring system. The module can be programmed using Arduino IDE or MicroPython, offering flexible development options. RA-08H LoRaWAN Node Board is an ideal tool for makers, engineers, and hobbyists who need a reliable platform for building long-range, low-power IoT applications.
Features
- Microcontroller: Raspberry Pi RP2040 (dual-core ARM Cortex-M0+ @ 133 MHz)
- Memory: 264 KB SRAM, 4 MB Flash
- LoRa module: RA-08H with 128 KB Flash and 16 KB SRAM
- LoRa frequency range: 803–930 MHz
- Supported communication: LoRa point-to-point and LoRaWAN
- Antenna interface: SMA or IPEX (first generation)
- 6 Crowtail interfaces (2x analog, 2x digital, 1x UART, 1x I2C)
- 2x10 general-purpose GPIO pins
- Power interfaces: USB Type-C port, battery connector, solar panel connector
- Power supply: 5V/1A (USB)
- Built-in lithium battery charging circuit
- Compatibility: over 150 Crowtail modules
- Programming environments: Arduino IDE / MicroPython
- Dimensions: 35 x 50 mm
Kit contains
- RA-08H LoRaWAN Node Board
- LoRa antenna (868 MHz / 915 MHz)
- Goldpin connector
- USB-C cable
1201687
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like

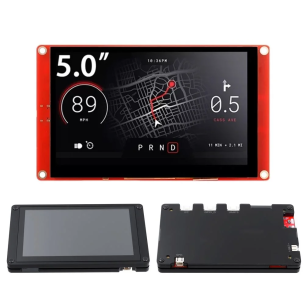

A touchscreen display with an embedded ESP32-S3-WROOM-1-N4R8 module, combining high performance with application flexibility. The 5-inch TFT-LCD screen with a resolution of 800x480 px and capacitive touch ensures precise operation and a clear image. The device offers Wi-Fi and Bluetooth connectivity, supports LVGL, openHASP, and the popular Arduino IDE, PlatformIO, and MicroPython environments. Thanks to USB-C, TF, UART, and I2C connectors, it is ideal for IoT projects, automation, and intelligent control systems. Elecrow CrowPanel 5.0"-HMI
