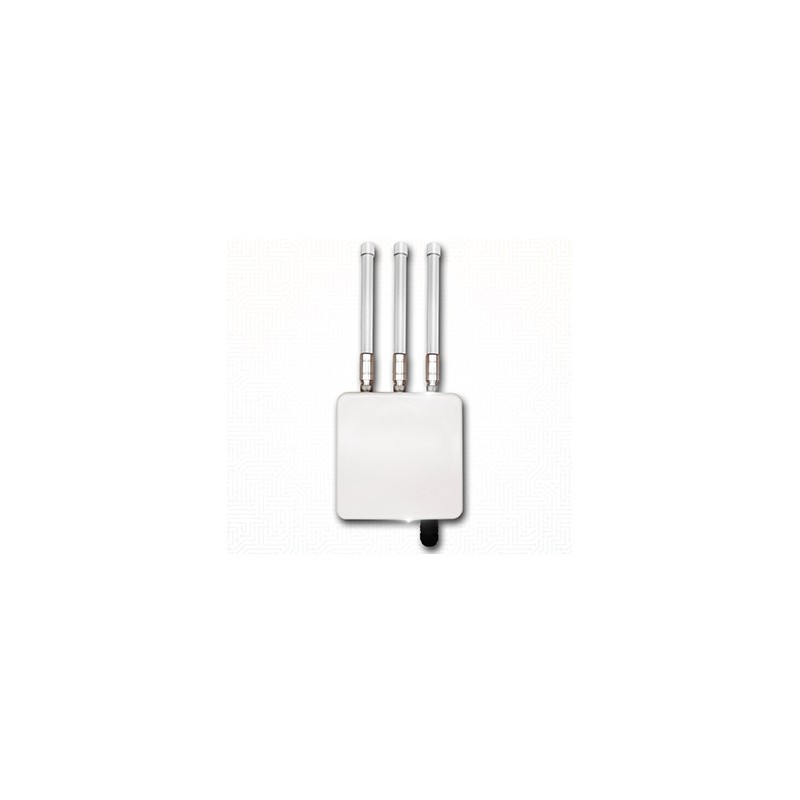

ED-GWL2110-0864-EU - LoRa gateway with 8GB RAM, 4G LTE and 64GB SD card
ID: 1195105
zł1,688.57
Tax included
zł1,372.82 tax excl.
The LoRa gateway based on the BCM2711 processor (ARM Cortex-A72, 1.5 GHz) with 8 GB RAM and 64 GB of memory on a micro SD card provides high performance and spaciousness, ideal for supporting IoT applications. Equipped with 4G/LTE communication, GNSS, HDMI and Gigabit Ethernet ports, and support for LoRa WAN (868 MHz), it offers reliable communication in harsh industrial conditions, and its IP65 housing guarantees protection against atmospheric factors. Edatec ED-GWL2110-0864-EU
Description
LoRa Gateway is an advanced communication device based on the BCM2711 processor, a quad-core ARM Cortex-A72 (ARM v8) 64-bit at 1.5 GHz. With efficient 8 GB RAM and a 64 GB micro SD card, the gateway provides ample space for data storage and handling demanding applications. There is also an option to expand memory via an additional SD card. The device is equipped with an HDMI port and Gigabit Ethernet, ensuring fast network connections and versatility in integration with other systems.
The 4G/LTE module, supporting Unicom and Telecom mobile networks, provides flexibility in communication across various locations. Support for the LoRa WAN protocol allows communication in long-range IoT networks. The LoRa gateway operates on the 868 MHz frequency band (EU868), which complies with EU regulations. The gateway is also equipped with a GNSS system supporting GPS L1 C/A, BeiDou B1I, and GLONASS L1, enabling precise location tracking. There is also a Serial (TTL) port for system console management and a Real Time Clock (RTC) powered by a CR1220 battery to ensure continuous time tracking. The device is housed in a weather-resistant aluminum enclosure with an IP65 protection rating, making it suitable for operation in harsh industrial conditions. Power is supplied via POE with a voltage range of 40V to 57V.
Features
- CPU: BCM2711 4-core, ARM Cortex-A72 (ARM v8), 1.5 GHz, 64-bit processor
- RAM: 8 GB
- Micro SD Card: 64 GB
- Optional additional SD card
- HDMI port
- Gigabit Ethernet
- 4G/LTE module supporting Unicom and Telecom mobile networks
- Supports LoRa WAN protocol
- Supported frequency bands: 868 MHz (EU868)
- GNSS:
- GPS L1 C/A: 1575.42 ±1.023 MHz
- BeiDou B1I: 1561.098 ±2.046 MHz
- GLONASS L1: 1597.78~1605.66 MHz
- Serial (TTL) port for system console management
- Real Time Clock: CR1220 battery powered
- User button:
- RGB LED
- Watchdog
- Encryption module
- Weatherproof aluminum enclosure, IP65 protection
- Power: POE 40V to 57V
- Operating temperature: -25°C to 60°C
- Dimensions: 195 x 195 x 65 mm
Kit contains
- LoRa Gateway
- LoRa Antenna
1195105
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
