Portable LoRa device based on the nRF52840 microcontroller combines an SX1262 868 MHz LoRa transceiver, a 1.54" E-Paper display, an L76K GNSS positioning module, and a BME280 environmental sensor in a compact ABS enclosure with a built-in 850 mAh battery. Factory-installed Meshtastic firmware allows immediate deployment in mesh networks without manually flashing the software. The kit includes an 868 MHz LoRa antenna and a USB Type-C cable. The device is designed for autonomous mesh nodes, long-range communication, GPS positioning, and mobile IoT applications. LILYGO TTGO T-Echo 868 MHz BME280 Meshtastic Firmware

24h
Available
Available quantity: 1

Description

The LILYGO TTGO T-Echo 868 MHz BME280 Black Meshtastic Firmware device is designed for projects requiring low-power LoRa communication and decentralized mesh networking. The hardware integrates an nRF52840 microcontroller, an SX1262 LoRa transceiver operating in the 868 MHz band, a 1.54" monochrome E-Paper display with a resolution of 200 × 200 pixels, an L76K GNSS positioning module, and a BME280 sensor for temperature, atmospheric pressure, and humidity measurements. Factory-installed Meshtastic firmware allows immediate use of the open-source LoRa communication platform without additional firmware configuration.


Factory-installed Meshtastic firmware and 868 MHz LoRa communication

The SX1262 transceiver provides long-range, low-power LoRa communication in the 868 MHz band, enabling the creation of autonomous mesh nodes and direct device-to-device communication without relying on existing network infrastructure. The device also supports Bluetooth 5, Thread, Bluetooth Mesh, Zigbee, ANT, and IEEE 802.15.4. Additional features include an L76K GNSS receiver supporting GPS, GLONASS, BeiDou, and QZSS, a low-power E-Paper display, an 850 mAh rechargeable battery with USB Type-C charging, two hardware buttons, and a capacitive touch button.

The manufacturer provides Meshtastic project documentation, a T-Echo hardware button guide, the InkHUD project for E-Paper-based devices.


T-Echo device operation

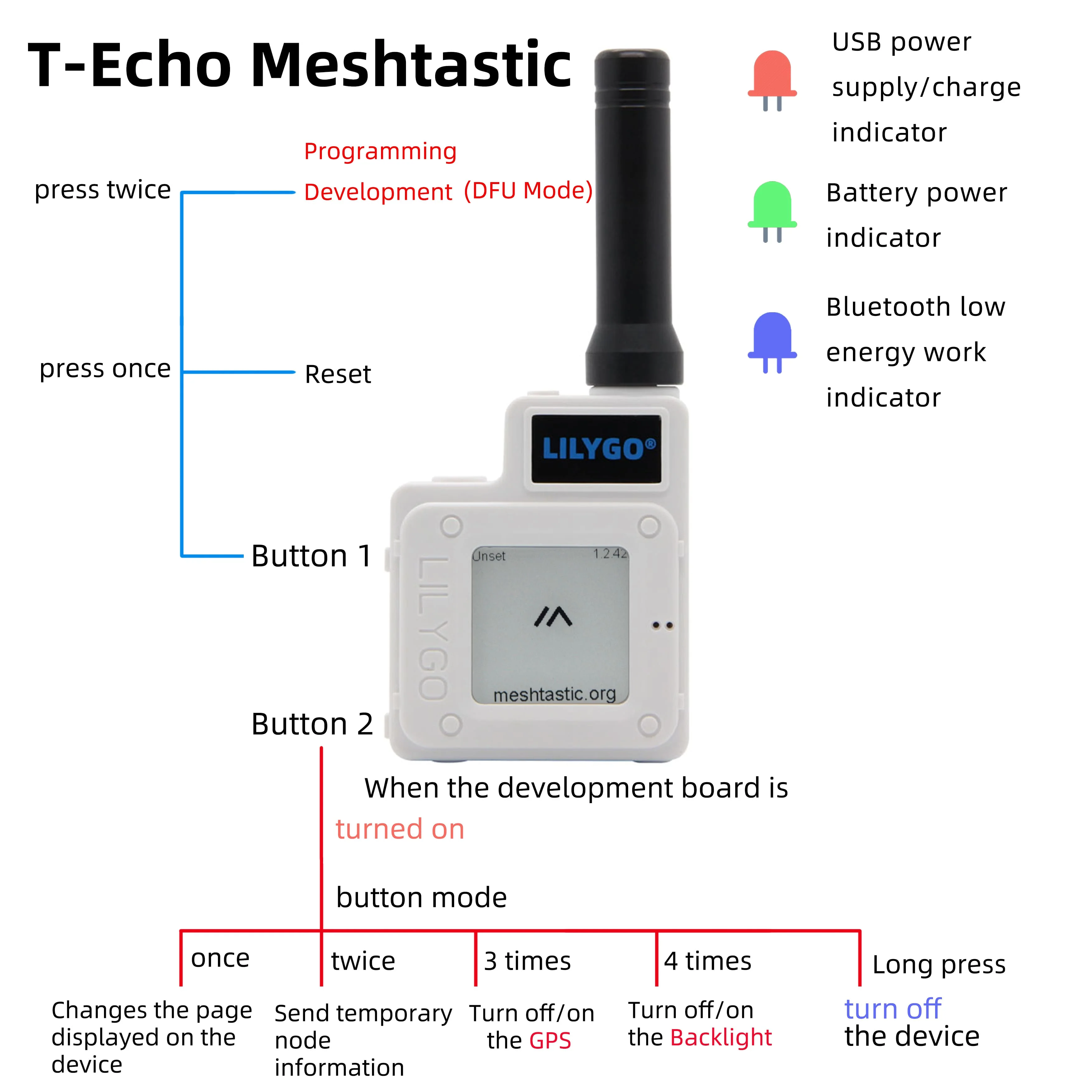

After power-up, the device is operated using two hardware buttons located on the enclosure. Button 1 performs a device reset, while pressing it twice enters DFU (Device Firmware Update) mode for firmware updates or programming. Button 2 controls functions available within the Meshtastic firmware, allowing operation without using the mobile application.

Successive presses of Button 2 switch between display pages, send temporary node information, enable or disable the GNSS receiver, and control the display backlight. Pressing and holding the button powers the device off. Three status LEDs indicate USB power, battery status, and Bluetooth Low Energy activity, making it easy to monitor the operating state of the device.

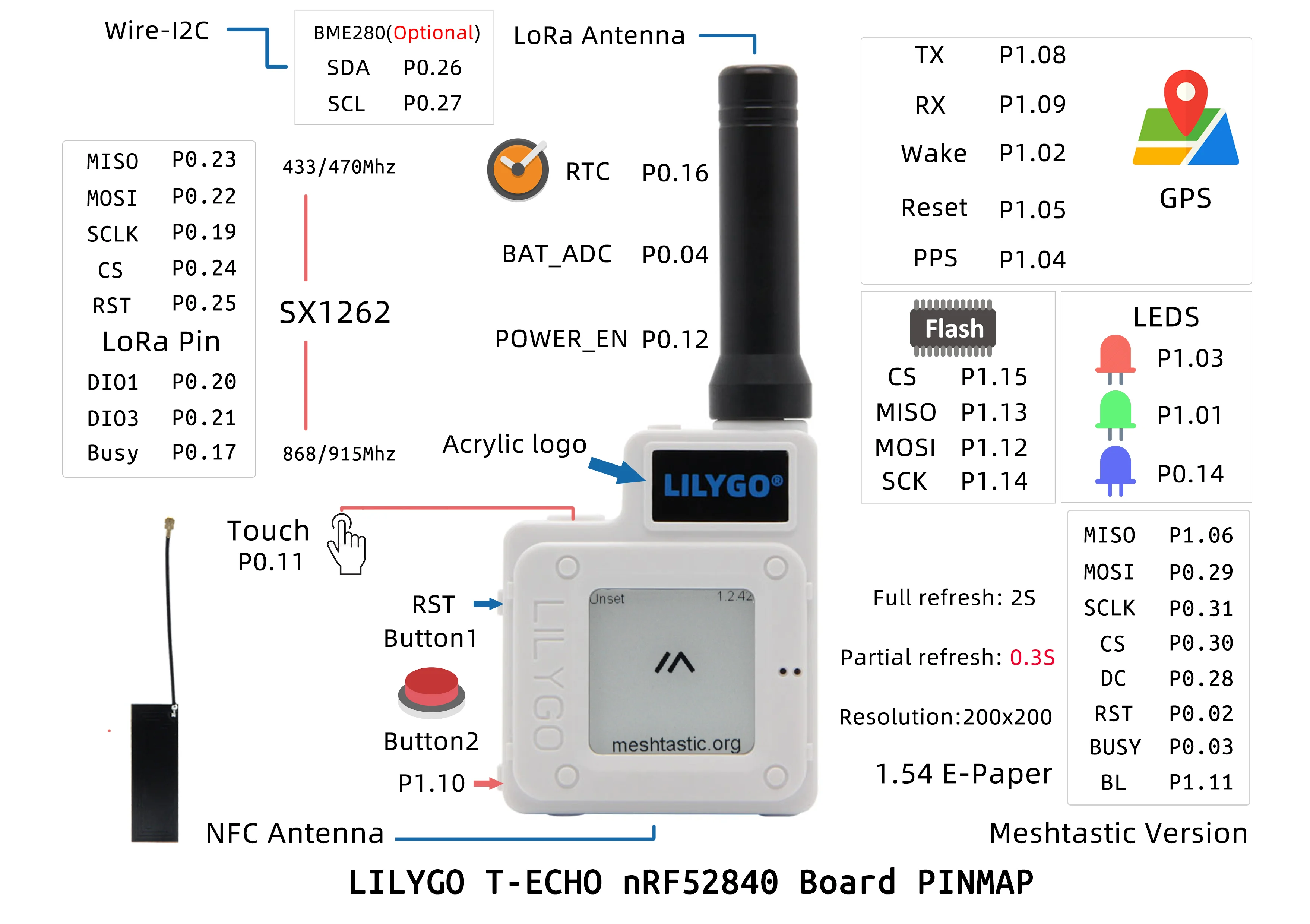

The pinout diagram below simplifies integration of the device into custom hardware projects.


Features

  • nRF52840 microcontroller
  • 2 MB Flash memory
  • 256 KB RAM
  • Factory-installed Meshtastic firmware
  • SX1262 LoRa transceiver
  • 868 MHz LoRa frequency band
  • Bluetooth 5 connectivity
  • Thread support
  • Bluetooth Mesh support
  • Zigbee support
  • ANT support
  • IEEE 802.15.4 support
  • 1.54" E-Paper display
  • 200 × 200 pixel display resolution
  • 2-level grayscale
  • Full display refresh in approximately 2 s
  • Partial display refresh in approximately 0.3 s
  • L76K GNSS module
  • GPS, GLONASS, BeiDou, and QZSS support
  • BME280 temperature, pressure, and humidity sensor
  • 850 mAh Li-Po battery
  • USB Type-C charging
  • UART, SPI, TWI, PDM, I2S, and QSPI interfaces
  • Two hardware buttons
  • Capacitive touch button
  • Built-in RTC
  • ABS enclosure
  • Black color

Kit includes

  • LILYGO TTGO T-Echo 868 MHz BME280 Black Meshtastic Firmware
  • 868 MHz LoRa antenna
  • USB Type-C cable
