ID: 1207194
zł276.76
Tax included

zł225.01 tax excl.

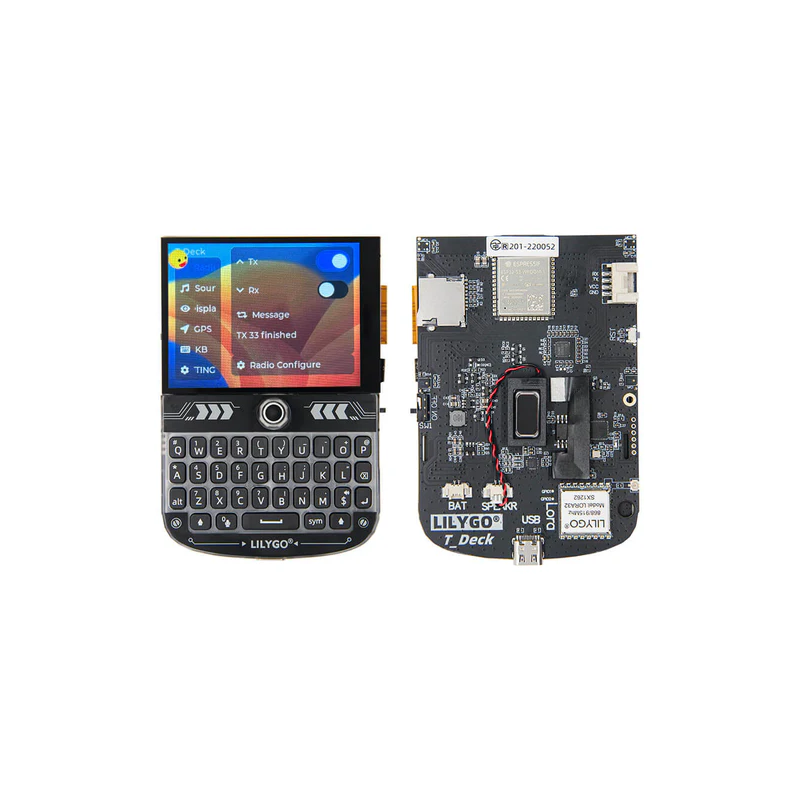

Portable development device based on the ESP32-S3 microcontroller combines an SX1262 868 MHz LoRa transceiver, a 2.8" IPS color display, a full QWERTY keyboard, and a trackball controller in a compact enclosure. Factory-installed LILYGO Factory Firmware allows immediate use without manually flashing the base firmware. The package includes an 868 MHz LoRa FPC antenna, a power cable, and a 1×6 pin header. The device is designed for LoRa communication terminals, portable messaging devices, IoT projects, and custom applications based on the ESP32-S3 microcontroller. LILYGO TTGO T-Deck 868 MHz Black LILYGO Factory Firmware

24h
Available
Available quantity: 11

Description

The LILYGO TTGO T-Deck 868 MHz Black LILYGO Factory Firmware device is designed for projects requiring long-range LoRa communication and the advanced capabilities of the ESP32-S3 microcontroller. The hardware integrates an ESP32-S3FN16R8 dual-core processor, an SX1262 LoRa transceiver operating in the 868 MHz band, a 2.8" ST7789 IPS color display with a resolution of 320 × 240 pixels, and a full QWERTY keyboard with a built-in trackball controller. Factory-installed LILYGO Factory Firmware allows the device to be used immediately without installing the firmware yourself.


868 MHz LoRa terminal with IPS display and keyboard

The SX1262 transceiver provides low-power LoRa communication in the 868 MHz band, making the device suitable for portable communication terminals, telemetry systems, and custom long-range wireless applications. The module supports 2.4 GHz Wi-Fi and Bluetooth 5 LE connectivity and features 16 MB Flash memory, 8 MB PSRAM, a built-in microphone, speaker, microSD card slot, and a Grove connector for connecting additional sensors and expansion modules.

The manufacturer provides a GitHub repository containing documentation, example projects, and development resources to help users get started with the T-Deck platform and develop custom applications.


The illustration beside this section shows the location of the main hardware components:

  • 2.8" IPS display
  • QWERTY keyboard
  • Trackball controller
  • ESP32-S3 microcontroller
  • SX1262 LoRa transceiver operating in the 868 MHz band
  • microSD card slot
  • Microphone
  • Speaker
  • Grove connector
  • Reset button
  • LoRa antenna connector
  • USB Type-C power connector

The pinout diagram below simplifies integration of the device into custom hardware projects. The keyboard print color may differ from the one shown in the product images!


Features

  • ESP32-S3FN16R8 dual-core LX7 microcontroller
  • Factory-installed LILYGO Factory Firmware
  • 16 MB Flash memory
  • 8 MB PSRAM
  • SX1262 LoRa transceiver
  • 868 MHz LoRa frequency band
  • Transmit power up to +22 dBm
  • 2.4 GHz Wi-Fi
  • Bluetooth 5 Low Energy
  • 2.8" IPS display
  • ST7789 display controller
  • 320 × 240 pixel resolution
  • Wide viewing angle
  • Physical QWERTY keyboard
  • Trackball controller
  • microSD card slot
  • Microphone
  • Speaker
  • Grove connector
  • USB Type-C interface
  • Arduino IDE support
  • PlatformIO support
  • MicroPython support
  • Battery voltage monitoring (Battery ADC)
  • Black color

Kit includes

  • LILYGO TTGO T-Deck 868 MHz Black LILYGO Factory Firmware
  • 868 MHz LoRa FPC antenna
  • Power cable
  • 1 × 6 pin header
