LILYGO T8-S3 - ESP32-S3 WiFi and Bluetooth Development Board
ID: 583662
5906623461080
zł76.09
Tax included
zł61.86 tax excl.

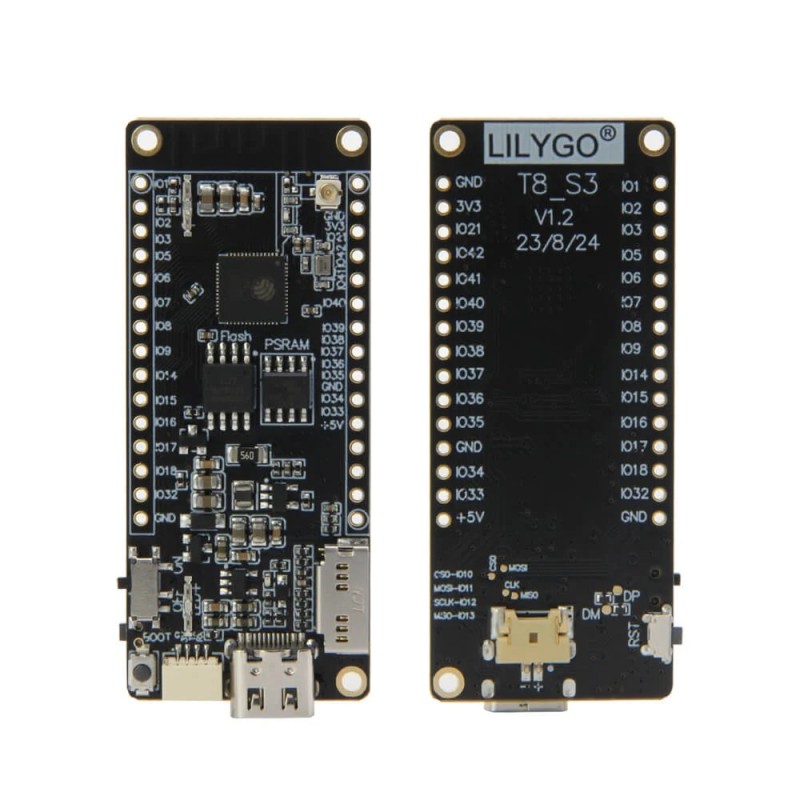

LILYGO T8-S3 V1.2 development board featuring a dual-core ESP32-S3 microcontroller running at 240 MHz, 16 MB Flash memory and 8 MB PSRAM. Supports 2.4 GHz WiFi and Bluetooth 5.0 LE, and includes a microSD card slot, USB Type-C connector, GPIO pins, WiFi antenna and 3.7 V Li-Po battery connector. LILYGO T8-S3 [H669]
Description
Development board featuring an ESP32-S3 microcontroller, designed for electronic projects using WiFi and Bluetooth Low Energy communication. The LILYGO T8-S3 V1.2 (H669) uses a dual-core Xtensa LX7 processor running at up to 240 MHz, with 16 MB Flash memory and 8 MB PSRAM. The ESP32-S3 provides 2.4 GHz WiFi and Bluetooth 5.0 LE connectivity, while GPIO pins allow sensors and other electronic components to be connected.
Building wireless measurement systems - enables sensor data to be collected and transmitted over WiFi networks. Developing IoT devices allows controllers and communication modules to be designed for integration with local automation systems. Logging measurement data - uses the built-in microSD card slot to store files and measurement results. Bluetooth Low Energy communication enables data exchange with compatible mobile devices and other BLE modules.
The USB Type-C connector provides power and communication with a computer. The board also features a 3.7 V Li-Po battery connector, a battery voltage monitoring circuit, RESET and BOOT buttons, and a WiFi antenna. Programming can be performed using Arduino IDE, ESP-IDF and PlatformIO with C/C++ or MicroPython. GPIO pins are arranged along both edges of the board, facilitating connections to wires and prototyping components.
Features
- Microcontroller and memory
- Manufacturer: LILYGO
- Model: T8-S3
- Manufacturer code: H669
- Board revision: V1.2
- Microcontroller: ESP32-S3
- Processor: dual-core Xtensa LX7, up to 240 MHz
- Flash memory: 16 MB
- PSRAM: 8 MB
- SRAM: 512 KB
- Wireless communication
- WiFi: 2.4 GHz, IEEE 802.11 b/g/n
- Bluetooth: 5.0 LE
- Built-in WiFi antenna
- IPEX connector for an external WiFi antenna
- Microcontroller interfaces: GPIO, UART, SPI, I2C, I2S, PWM, ADC
- Interfaces and onboard components
- USB connector: USB Type-C
- Memory card slot: microSD

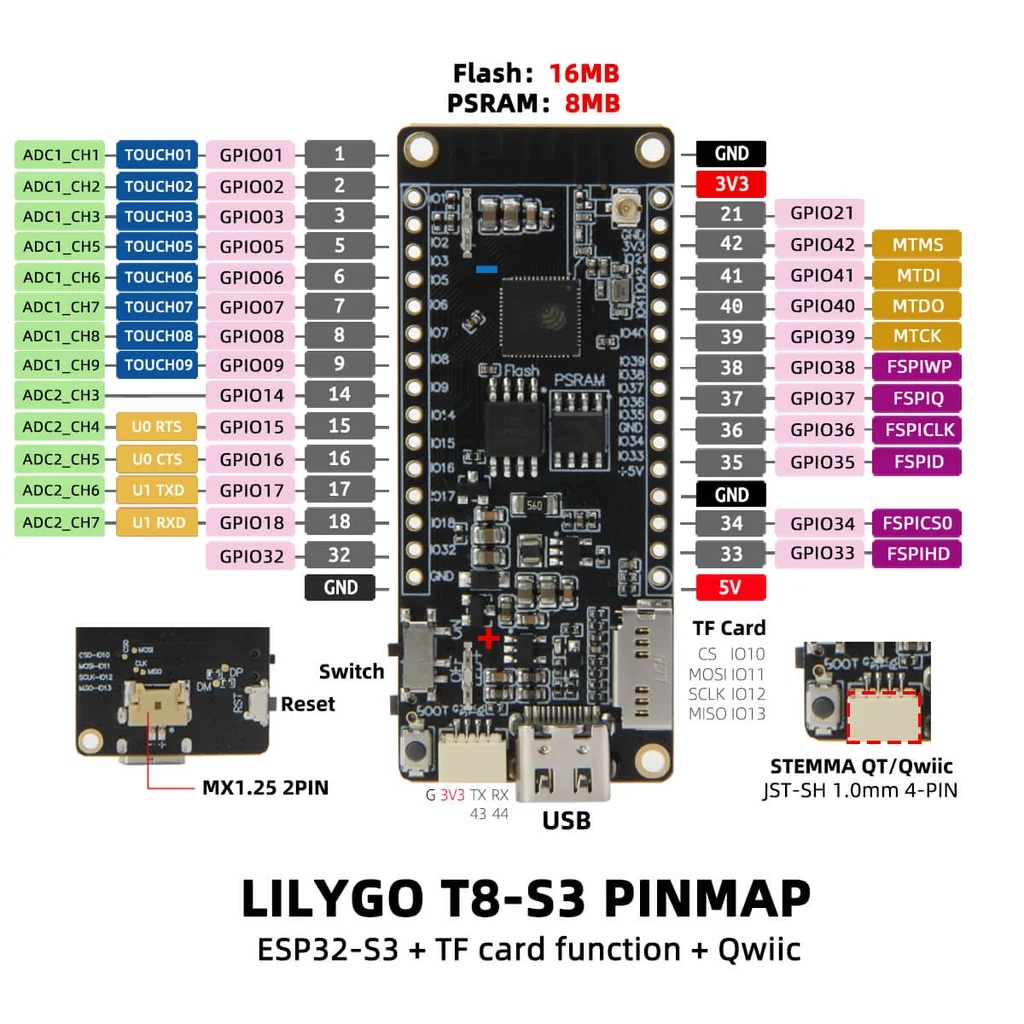

- GPIO pins along the board edges
- RESET button
- BOOT button
- Battery voltage monitoring circuit
- Power supply and programming
- Power supply via USB Type-C: 5 V DC
- Li-Po battery support: 3.7 V
- Battery connector: 2-pin JST, 1.25 mm pitch
- Supported programming languages: C/C++, MicroPython
- Development environments: Arduino IDE, ESP-IDF, PlatformIO
- Mechanical specifications
- Board dimensions: approximately 62 x 26 mm
Kit includes
- LILYGO T8-S3 development board x 1
- 15-pin male header strip x 2
- Power cable with 2-pin connector x 1
- 130 mm flexible LED strip x 1
