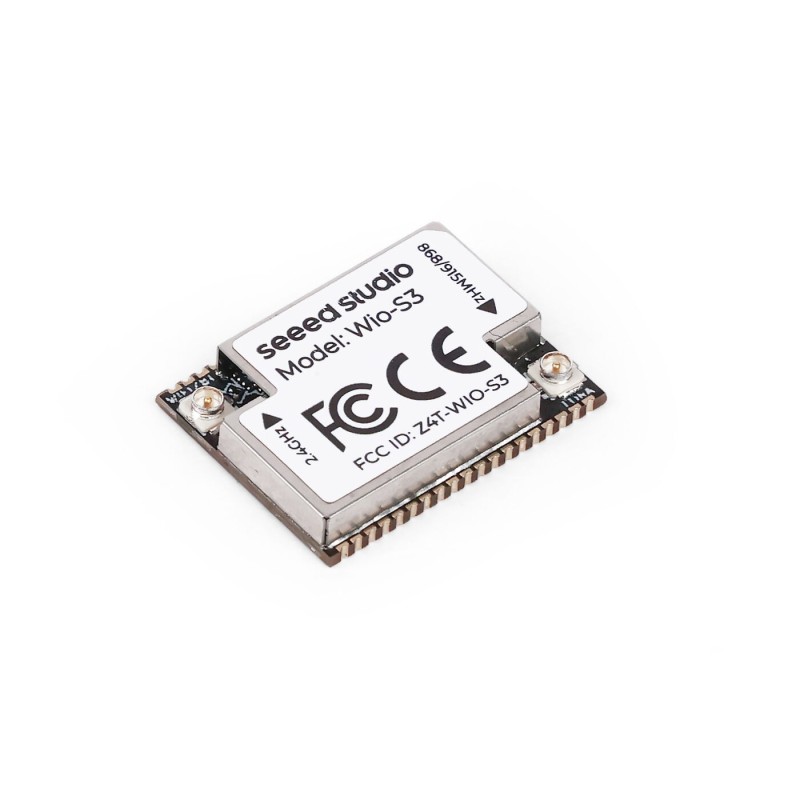

Wireless communication module for IoT devices combining a dual-core ESP32-S3R8 microcontroller with an SX1262 LoRa transceiver; supports LoRaWAN in EU868 and US915 bands, 2.4 GHz WiFi and Bluetooth LE 5.0; 16 MB Flash and 8 MB PSRAM; LoRa output power up to 20.9 dBm; sensitivity down to -137 dBm; IPEX antenna connector; 3.0-3.6 V supply voltage; 38-pin SMT package; dimensions 21.6 x 16.5 x 3.3 mm. Seeed Studio 100020327

24h
Available
Available quantity: 2
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

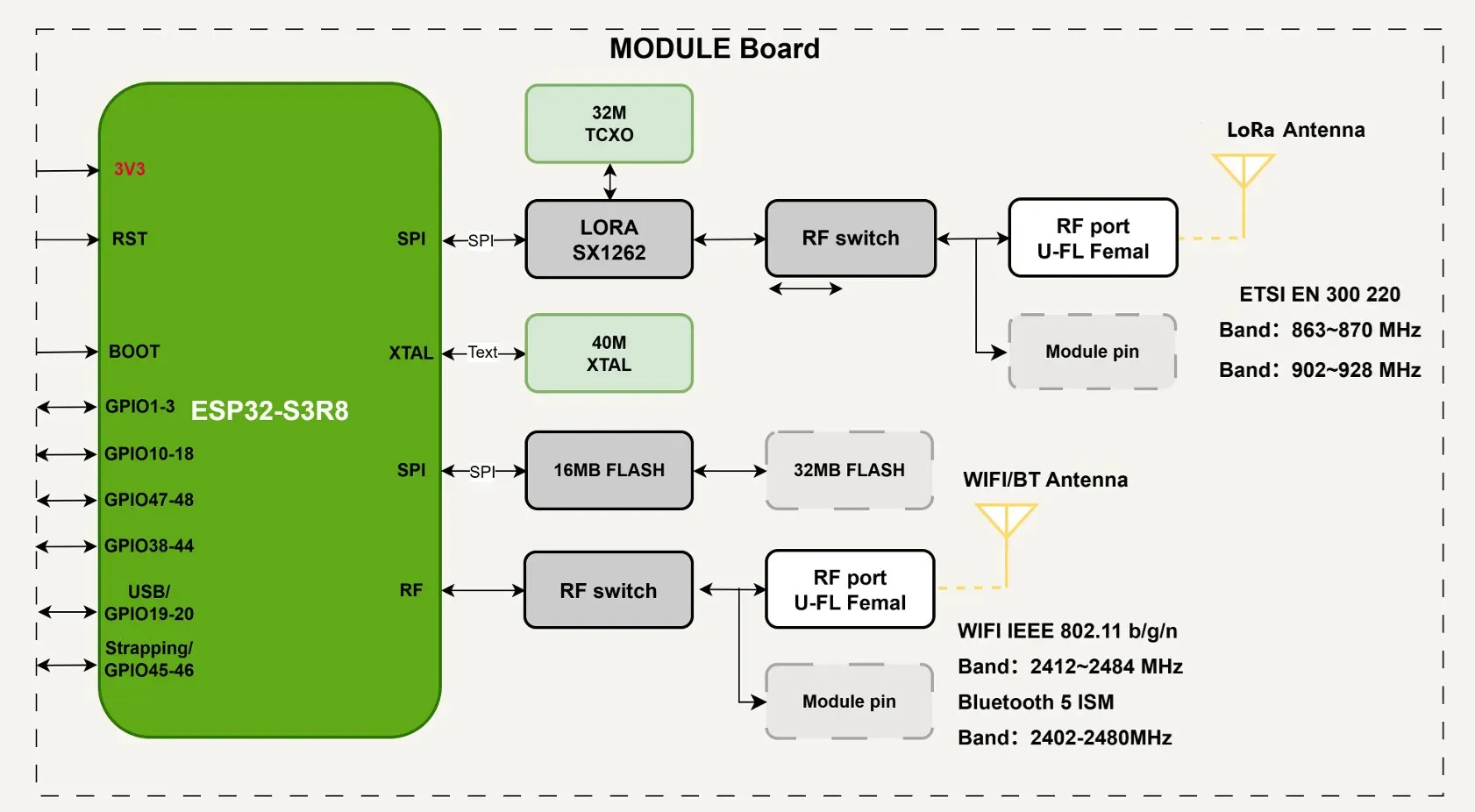

Wireless communication module for integration with IoT devices, telemetry systems and embedded control systems. Seeed Studio Wio-S3 100020327 combines the ESP32-S3R8 with a dual-core Xtensa LX7 processor and an SX1262 LoRa transceiver, providing LoRaWAN connectivity in the EU868 and US915 bands, 2.4 GHz WiFi and Bluetooth LE 5.0. The module provides 16 MB of Flash memory and 8 MB of PSRAM, supporting more advanced data processing and Edge AI tasks. Version 100020327 features an IPEX connector for connecting an external antenna.

The LoRa radio provides a transmit power of up to 20.9 dBm at 868 MHz and 20.74 dBm at 915 MHz, while receiver sensitivity reaches -137 dBm at SF12 and 125 kHz bandwidth. The integrated TCXO improves frequency stability over a wide temperature range. The module can operate with LoRaWAN platforms including The Things Network and ChirpStack, while command firmware and SDK support both rapid communication setup and custom firmware development.


The compact SMT design with dimensions of 21.6 x 16.5 x 3.3 mm provides UART, I2C, SPI, USB and 12-bit ADC interfaces. The supply voltage range is 3.0 V to 3.6 V, while the minimum sleep current is 9.3 µA. The combination of long-range communication, WiFi, BLE and ESP32-S3 processing capabilities enables the Wio-S3 to be used in sensor nodes, data loggers, industrial automation, smart agriculture, wearable devices and AIoT systems.

Features

  • IC and memory
    • Microcontroller: ESP32-S3R8
    • Processor: dual-core 32-bit Xtensa LX7
    • Flash memory: 16 MB
    • PSRAM: 8 MB
    • SRAM: 512 KB
    • LoRa transceiver: SX1262
    • TCXO: integrated
  • Wireless connectivity
    • LoRaWAN: EU868, US915
    • WiFi: 2.4 GHz
    • Bluetooth: BLE 5.0
    • Maximum LoRa output power at 868 MHz: 20.9 dBm
    • Maximum LoRa output power at 915 MHz: 20.74 dBm
    • Sensitivity at SF12, BW 125 kHz, 868 MHz: typ. -137 dBm
    • Sensitivity at SF12, BW 125 kHz, 915 MHz: typ. -136.5 dBm
    • RF ports: 2 - WiFi/Bluetooth and LoRa
    • Antenna connector: IPEX
  • Interfaces
    • UART: 3
    • I2C: 2
    • SPI: 1
    • USB: 1
    • ADC: 2 x 12-bit
    • NRST: manual reset input
    • BOOT: manual boot mode input
  • Electrical parameters
    • Supply voltage: 3.0-3.6 V, typ. 3.3 V
    • Minimum sleep current: 9.3 µA
    • Minimum standby current: 1.43 mA
    • Transmitter + MCU current at 868 MHz and 16 dBm: 113 mA
    • Transmitter + MCU current at 868 MHz and 22 dBm: 125 mA
    • Transmitter + MCU current at 915 MHz and 22 dBm: 127 mA
    • Receiver + MCU current at 868 MHz, BW 125 kHz: 5.5 mA
    • Receiver + MCU current at 915 MHz, BW 125 kHz: 5.7 mA
  • Construction

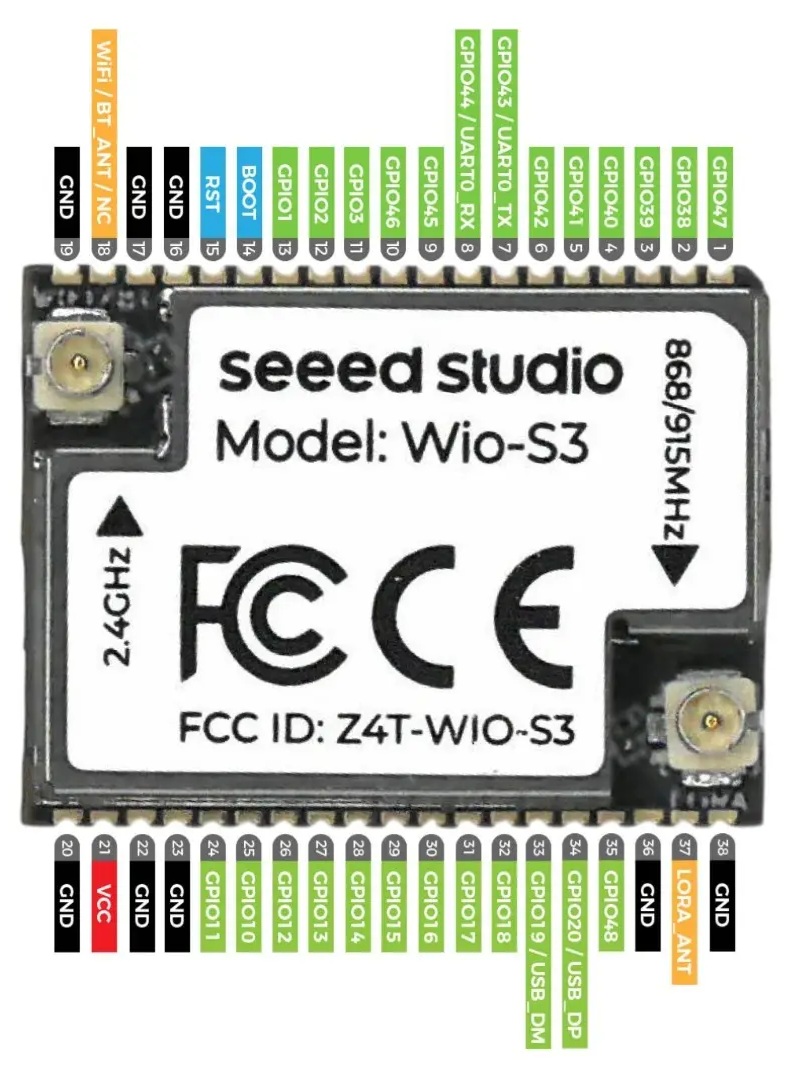

    • Number of pins: 38
    • Mounting: SMT
    • Dimensions: 21.6 x 16.5 x 3.3 mm
    • Operating temperature: -40°C to 85°C
    • Certifications: CE, FCC, TELEC

Kit includes

  • Seeed Studio Wio-S3 100020327 module with IPEX connector
1207174
