ID: 1208419
zł125.00
Tax included

zł101.63 tax excl.

Open-source LoRa USB adapter based on the CH341A and Semtech SX1262 chips, designed to turn Linux or macOS devices into Meshtastic network nodes. Supports EU868 and US915 bands, an external SMA antenna and Web UI management. Powered directly from the USB port with no additional power supply required. Elecrow LMM15202D

4 weeks
Awaiting delivery

Description

USB adapter that adds LoRa communication and Meshtastic support to computers and other compatible devices. It combines a CH341A bridge with the Semtech SX1262 radio transceiver, supporting EU868 and US915 frequency bands with transmit power up to +22dBm. An external LoRa antenna is connected through an SMA connector, while the adapter is powered directly from the USB bus.



When connected to a Linux or macOS device, Meshstick can work with the meshtasticd service and operate as a Meshtastic node, LoRa relay or network gateway. Supported architectures include x86-64, arm64 and armhf, allowing the adapter to work with devices such as Raspberry Pi, industrial computers, OpenWRT routers, Steam Deck and x86 computers. Node configuration and operation can be handled through the Web UI, while the onboard 24C02 EEPROM stores a unique serial number for device identification.

Features

  • LoRa communication
    • LoRa chip: Semtech SX1262
    • Frequency bands: EU868 / US915
    • Maximum transmit power: +22dBm
    • Antenna connector: SMA
    • External LoRa antenna
  • Meshtastic and compatibility
    • Meshtastic support
    • Works with the meshtasticd service
    • Web UI management
    • Supported architectures: x86-64, arm64, armhf
    • Compatible with Linux and macOS
    • Works with devices including Raspberry Pi, industrial computers, software routers, OpenWRT routers, Steam Deck and x86 computers
  • Hardware and power
    • USB-SPI bridge: CH341A
    • Interface: USB 2.0
    • Powered directly from the USB bus
    • No additional power supply required
    • EEPROM: 24C02 with unique serial number
    • Open-source hardware design

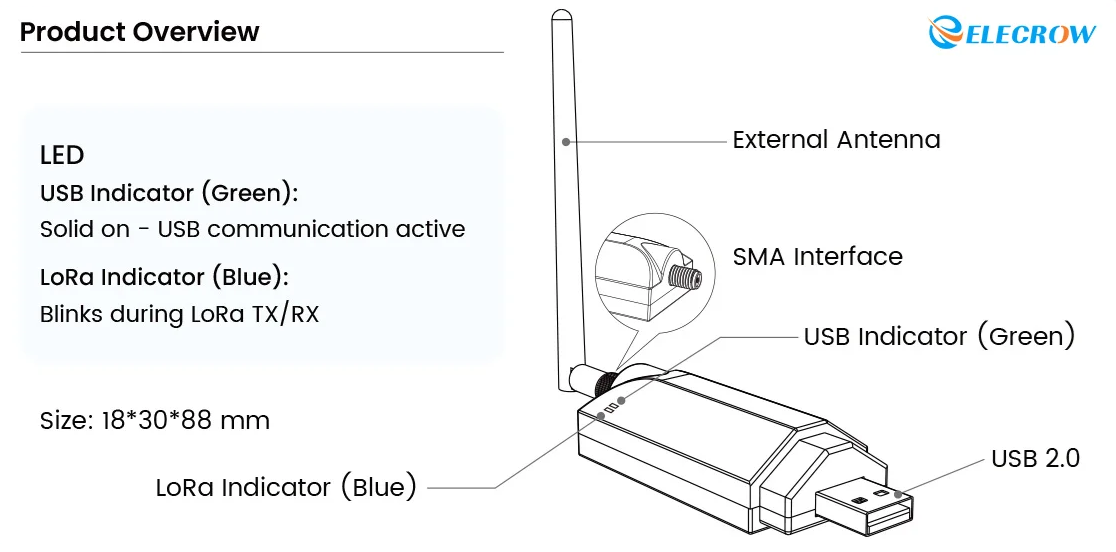

  • Construction
    • Translucent black plastic enclosure
    • Dimensions: 88 × 30 × 18 mm without antenna
    • Weight: 36.6 g including antenna

Kit includes

  • Meshstick
  • Antenna
  • Quick Start Guide
