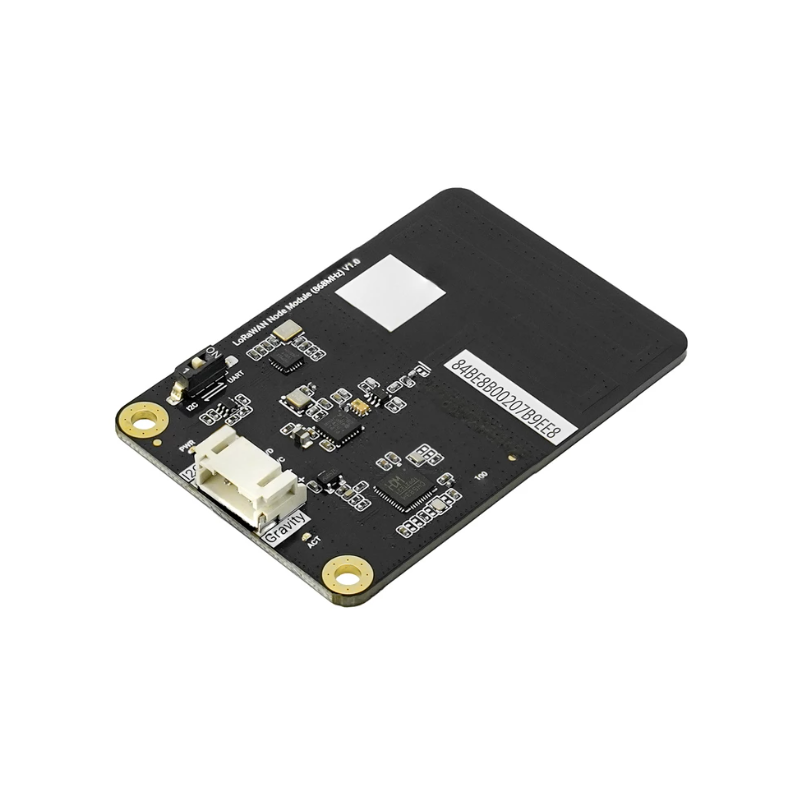

DFRobot DFR1115-868 Module – Gravity: LoRaWAN Node (EU868) – SX1262, 4 km range, for IoT
ID: 1201302
5902186330085
zł63.59
Tax included
zł51.70 tax excl.
DFRobot DFR1115-868 module based on the SX1262 enables stable long-range wireless communication in IoT networks, supporting LoRa and LoRaWAN. It operates in the EU868 band, offering low power consumption, full compatibility with popular platforms, and easy integration through I2C/UART interfaces. It is well-suited for agricultural, environmental, and educational applications.
Description
The DFRobot DFR1115-868 wireless communication module from the Gravity series is designed for long-range, energy-efficient data transmission in outdoor IoT applications. It uses LoRa modulation technology and the SX1262 RF chip, operating in the European 868 MHz frequency band. It supports both LoRa mode (P2P communication) and the LoRaWAN network protocol (Class A/C) with integration to platforms such as TTN and ChirpStack. The module enables data transmission up to 1.2 km in urban environments and up to 4 km in open areas. The built-in PCB antenna and low power consumption make it an ideal solution for sensor nodes in agriculture, environmental monitoring, and smart outdoor systems.
Properties
- Supply voltage: 3.3–5 V DC
- Communication interface: I2C / UART
- Connector: PH2.0–4P (power + data transmission)
- Compatibility with 3.3 V and 5 V logic levels
- Supported platforms: Arduino, ESP32, micro:bit
- Supported protocols: LoRa P2P, LoRaWAN (Class A/C, OTAA/ABP)
- RF chip: Semtech SX1262
- Operating frequency: 868 MHz (EU868)
- Modulation: LoRa
- Bandwidth: 125 kHz
- Transmission power: up to +16 dBm
- Receiver sensitivity: –137 dBm (SF12 / BW125 kHz)
- Transmission range: up to 1.2 km (urban area), up to 4 km (open area)
- Power consumption: low, optimized for battery operation
- Module dimensions: 42 × 62 mm
- Mounting hole spacing: 35 mm, hole diameter 3.0 mm
- Net weight: 10 g
- Applications: crop monitoring, weather stations, irrigation control, outdoor IoT network prototyping
Included
- Gravity: LoRaWAN Node (868 MHz) module
- PH2.0–4P connection cable
1201302
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
