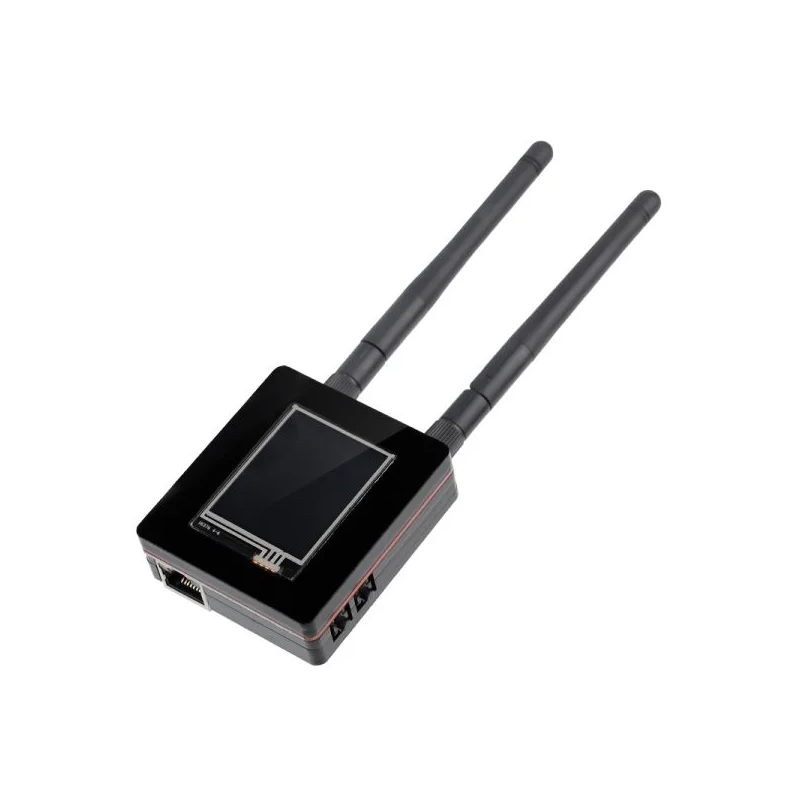

LoRaWAN Gateway - LoRaWAN gateway with ESP32 module and 1.18" LCD display
ID: 1201163
5902186332386
zł149.90
Tax included
zł121.87 tax excl.
A single-channel IoT gateway operating in the 868 MHz band, designed for building and testing long-range LoRaWAN networks. Based on the ESP32 WROOM-32 microcontroller, the device offers WiFi and Ethernet connectivity and works with the RA-01H radio module, providing communication distances of up to approximately 1.5 km outdoors. The gateway supports the LoRaWAN 1.0.3 standard and is compatible with The Things Network platform, enabling easy cloud integration. It features a built-in color TFT display, USB-C power supply, and an acrylic enclosure.
Description
LoRaWAN Gateway is a compact, single-channel communication gateway designed for building long-range IoT networks in the 868 MHz band. The device is intended as an ideal educational and entry-level solution for users who want to learn LoRaWAN technology and start working with their own network infrastructure. At its core is the powerful ESP32 WROOM-32 with a dual-core processor, providing stable operation and support for both wireless WiFi and wired Ethernet communication. The built-in RA-01H radio module enables long-distance communication, reaching up to 1.5 km in open areas. The gateway supports the LoRaWAN 1.0.3 standard and is compatible with popular LoRa sensors, allowing the creation of complete monitoring and data acquisition systems.
Thanks to integration with The Things Network, the device can be easily managed and data transmissions can be monitored in the cloud. The module features a 1.8-inch color TFT display that provides real-time information on operating status, IP address, and data transmission. Power supply and programming are handled via a USB-C connector, ensuring user convenience. Additional LEDs indicate operating and communication status. All components are housed in an attractive acrylic enclosure that protects the electronics and simplifies installation. The module is well suited for smart home projects, industrial automation, precision agriculture, and environmental monitoring systems.
Features
- Microcontroller: ESP32 WROOM-32, dual-core 32-bit LX6 processor @ 240 MHz
- LoRa module: RA-01H, frequency band 803–930 MHz (868 MHz version)
- Number of channels: 1
- Supported protocol: LoRaWAN 1.0.3
- Display: 1.8” SPI TFT LCD 128×160, ST7735S driver
- Connectivity: WiFi 2.4 GHz and Ethernet 10/100 Mbps (RJ45)
- Development environment: Arduino, MicroPython
- Communication range: up to 1.8 km in open areas, approx. 1 km in built-up areas
- Enclosure: protective acrylic case
- Power supply: USB-C, 5 V DC
- Interfaces:
- USB-C
- Ethernet
- BOOT button
- RESET button
- 2 LEDs
- Operating temperature: −10 °C to +65 °C
- Dimensions: 65 × 58 mm
Kit contains
- LoRaWAN Gateway Module (ESP32 + RA-01H)
- LoRa 868 MHz antenna
- WiFi antenna
- USB cable
