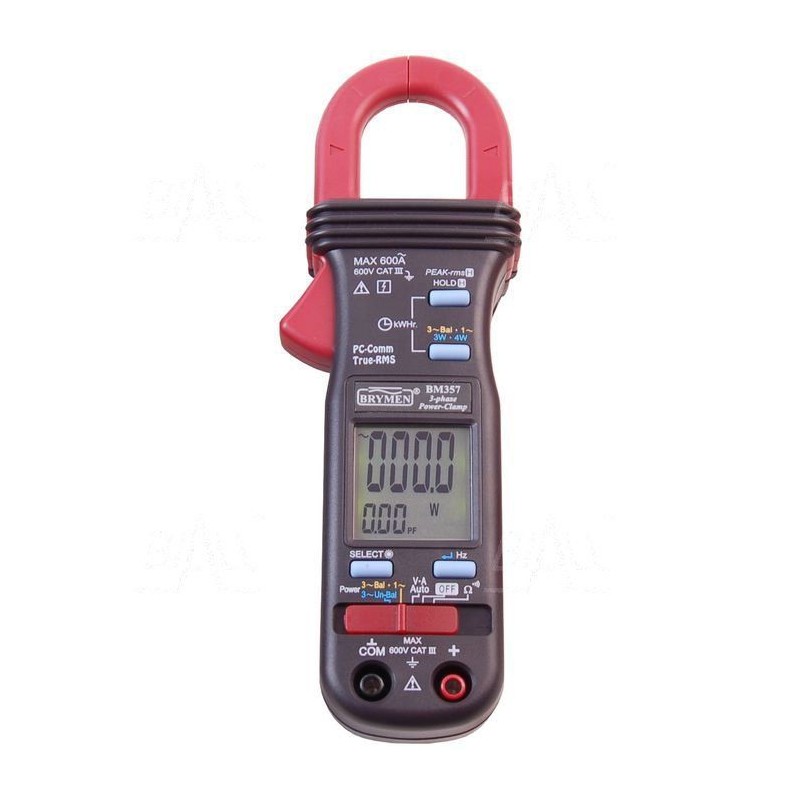

Brymen BM357s - 600A clamp meter
ID: 1199582
zł639.60
Tax included
zł520.00 tax excl.
True RMS clamp multimeter for accurate AC current measurements up to 600 A and AC/DC voltage up to 600 V. The device offers kWh energy recording, three-phase power measurements, a peak-RMS function, and a quick continuity test. Meets CAT III 600 V safety standards, has 6 kV surge protection, and a backlit display, making it an ideal choice for professionals. Brymen BM357s
Description
The clamp meter BM357s Compact PowerClamp™ DMM is an advanced measuring tool that combines a compact design, high functionality, and reliability. Equipped with narrow clamp jaws, it allows easy access to wires in hard-to-reach places, while its lightweight and ergonomic design ensures comfortable operation.
The device offers full power measurement functions, including energy recording in kWh and power measurements in three-phase systems with unbalanced loads. Thanks to True RMS technology, it guarantees accurate measurements for distorted current and voltage waveforms. The clamp meter provides AC current measurement up to 600 A and AC/DC voltage up to 600 V with a basic accuracy of 0.5%. It also features the AutoVA function, which automatically selects the measurement mode (ACA, ACV, or DCV), reducing operation time. The Peak-RMS function captures inrush values lasting as little as 65 ms, which is particularly useful for analyzing motor start-up currents. Additional options include frequency measurement for voltage and current, resistance measurement up to 999.9 Ω with 0.1 Ω resolution, and a fast continuity test with an audible signal (250 μs).
The BM357s clamp meter complies with LVD CAT III 600V safety standards and EMC requirements, and it is equipped with overvoltage protection up to 6 kV, ensuring user safety and device longevity. The backlit display allows work in dark environments, while the Data Hold function facilitates measurement analysis. The housing is made of high-impact, flame-retardant material, ensuring durability and safety. BM357s is an ideal tool for electricians and engineers who need a compact, multifunctional meter for field work.
Features
- AC current measurement range: up to 600 A
- AC/DC voltage measurement range: up to 600 V
- Accuracy: 0.5%
- Resistance measurement: up to 999.9 Ω (resolution 0.1 Ω)
- True RMS – accurate measurements for distorted waveforms
- Peak-RMS function: captures pulses from 65 ms
- Current and voltage frequency measurement: 5 to 500 Hz
- Energy recording in kWh for single-phase and three-phase systems
- AutoVA function – automatic measurement mode selection
- Fast continuity test (250 μs) with audible indication
- Backlit LCD display for dark environments
- PC communication interface (requires additional adapter)
- Safety category: LVD CAT III 600V
- Overvoltage protection: up to 6 kV
- Automatic power-off: after 30 min of inactivity
- Power supply: 2 x AAA batteries
- Compact and durable flame-retardant housing
- Dimensions: 189 x 78 x 40 mm
- Weight: 192 g
Kit contains
- BM357s clamp meter
- Test leads
- Protective case
- 2 x AAA batteries
- User manual
1199582
Data sheet
- Zakres pomiarowy napięcia DC
- 400 mV/4 V/40 V/400 V/600 V
- Zakres pomiarowy napięcia AC
- 4 V/40 V/400 V/600 V
- Zakres pomiarowy natężenia DC
- Brak
- Zakres pomiarowy natężenia AC
- 600 A
- Zakres pomiarowy rezystancji
- 1 kΩ
- Zakres pomiarowy pojemności
- Brak
- Zakres pomiarowy częstotliwości
- 20Hz-500Hz
- Pomiar temperatury
- Nie
- Regulacja zakresu pomiarowego
- Automatyczna
- True RMS
- Tak
- Funkcja Hold
- Tak
- Tester ciągłości obwodu
- Akustyczyny
- Tester diod
- Tak
- Pomiar hFE tranzystorów
- Nie
- Buzzer
- Tak
- Wskaźnik rozładowanej baterii
- Tak
- Automatyczny wyłącznik
- Tak
- Podświetlenie wyświetlacza
- Tak
- Battery type
- AAA
- Length
- 189,9 mm
- Width
- 78 mm
- Thickness
- 40 mm
- Weight
- 191 g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Brymen BM869s is an advanced multimeter that, thanks to its high accuracy and advanced functions, is an ideal tool for professional applications. Equipped with functions such as Beep-Jack™, VFD V & Hz, CREST 1ms and many others, it ensures safety and precision in every measurement. Perfect for applications in electronics, industrial automation and electromechanical equipment servicing. Brymen BM869s
zł1,150.00
24h
Available quantity: 2
Available

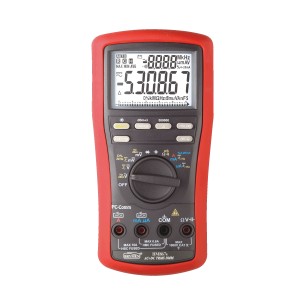

A multimeter that supports voltage measurements up to 1000 V and current up to 10 A, including AC, DC, and AC+DC in True RMS technology, offers MIN/MAX/AVG functions, diode testing, fast continuity testing, and capacitance measurement up to 25 mF. It complies with the CAT IV 1000 V safety standard, is surge-resistant up to 12 kV, and features a backlit LCD with dual display, making it a reliable tool for professionals. Brymen BM867s
