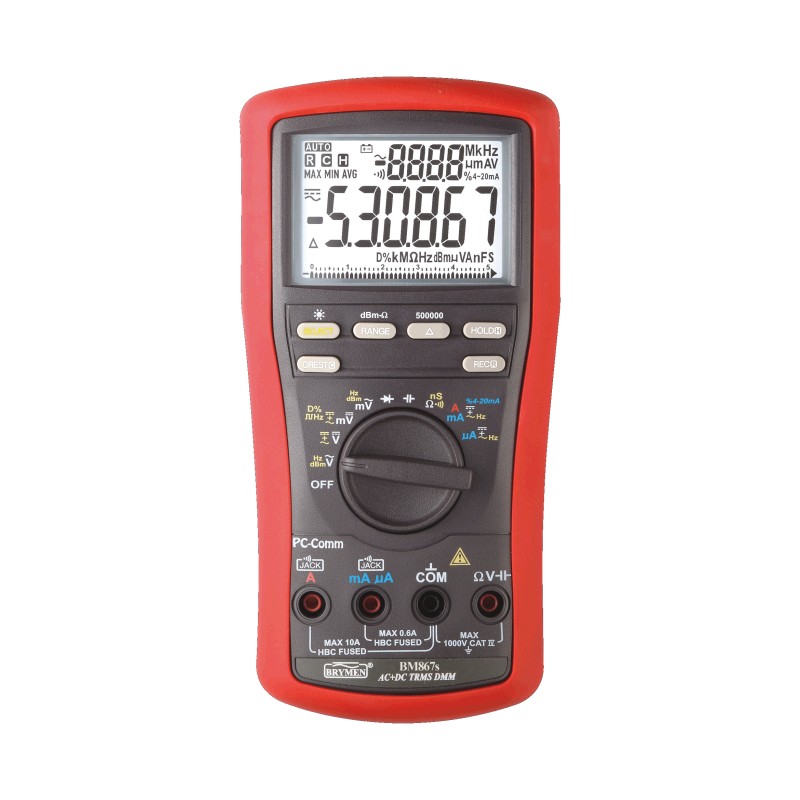

Brymen BM867s - 1000V 10A digital multimeter
ID: 1199581
zł811.78
Tax included
zł659.98 tax excl.
A multimeter that supports voltage measurements up to 1000 V and current up to 10 A, including AC, DC, and AC+DC in True RMS technology, offers MIN/MAX/AVG functions, diode testing, fast continuity testing, and capacitance measurement up to 25 mF. It complies with the CAT IV 1000 V safety standard, is surge-resistant up to 12 kV, and features a backlit LCD with dual display, making it a reliable tool for professionals. Brymen BM867s
Description
The BM867s Multimeter is an advanced measuring device offering 0.03% accuracy and resolution down to 1 μV for DC voltage measurements. Equipped with a large, backlit LCD display with an analog bar graph, it provides quick and clear parameter readings. The dual display feature allows simultaneous display of voltage and frequency or other key values. BM867s performs AC, DC, and AC+DC voltage measurements using True RMS technology, ensuring high accuracy even for non-sinusoidal signals. The device includes features such as MIN/MAX/AVG value recording, capacitance measurement up to 25 mF in X-Speed mode, current and frequency measurement, diode test, fast continuity test with an audible signal, and conductivity measurement down to nS. The Beep-Jack function warns of incorrect test lead connections, minimizing the risk of damage.
The BM867s also supports 4–20 mA loop measurement and power calculation in dBm with 20 programmable reference impedances. The meter is resistant to surges up to 12 kV (1.2/50 μs impulse) and meets CAT IV 1000 V safety standards, making it a safe tool for professionals. With its ergonomic design, removable protective holster with probe holder, and built-in stand, it offers comfort and convenience in any environment. An optional USB interface allows data transfer to a computer for analysis using dedicated software. This is an excellent choice for electricians, service technicians, and engineers who require maximum accuracy, a wide range of functions, and top-level safety.
Features
- DC voltage measurement range: 0.01 mV...500 mV / 5 V / 50 V / 500 V / 1000 V
- DC voltage accuracy: ±(0.03% + 2 digits)
- AC voltage measurement range: 0.01 mV...500 mV / 5 V / 50 V / 500 V / 1000 V
- AC voltage accuracy: ±(0.8% + 60 digits)
- DC current measurement range: 0.01 µA...500 µA / 5 mA / 50 mA / 500 mA / 5 A / 10 A
- DC current accuracy: ±(0.1% + 20 digits)
- AC current measurement range: 0.01 µA...500 µA / 5 mA / 50 mA / 500 mA / 5 A / 10 A
- AC current accuracy: ±(1% + 40 digits)
- Resistance range: 0.01 Ω...500 Ω / 5 kΩ / 50 kΩ / 500 kΩ / 5 MΩ / 50 MΩ
- Resistance accuracy: ±(0.1% + 6 digits)
- Capacitance range: 10 pF...50 nF / 500 nF / 5 µF / 50 µF / 500 µF / 5 mF / 25 mF
- Capacitance accuracy: ±(2.5% + 3 digits)
- Frequency range: 10 Hz...200 kHz
- Frequency accuracy: ±(0.02% + 4 digits)
- Duty cycle measurement: 0.1%...99.99%
- 4–20 mA loop measurement: 0...100%
- True RMS measurement: AC, AC+DC
- Diode test: current 0.4 mA, voltage 2 V
- Continuity test: audible signal for 20 Ω < R < 200 Ω
- Display type: dual backlit LCD
- Bar graph: 41 segments, refresh rate 60/s
- Sampling rate: 5/s
- Power supply: 1 x 9 V 6F22 battery
- Dimensions: 103 × 64.5 × 208 mm
- Weight: 635 g
- Interface: USB (Type A)
- Standards: EN61010, safety category CAT IV 1000 V
Kit contains
- BM867s Multimeter
- Test leads
- Protective holster
- Battery
- User manual
1199581
Data sheet
- Zakres pomiarowy napięcia DC
- 200mV/2000mV/20V/200V/1000 V
- Zakres pomiarowy napięcia AC
- 600mV/6V/60V/600V/1000V
- Zakres pomiarowy natężenia DC
- 200μA/2mA/20mA/200mA/10A
- Zakres pomiarowy natężenia AC
- 600μA/6000μA/60mA/600mA/10A
- Zakres pomiarowy rezystancji
- 50MΩ
- Zakres pomiarowy pojemności
- 25mF
- Zakres pomiarowy częstotliwości
- 2 kHz - 200 kHz
- Pomiar temperatury
- Nie
- Regulacja zakresu pomiarowego
- Automatyczna
- True RMS
- Tak
- Funkcja Hold
- Tak
- Tester ciągłości obwodu
- Akustyczyny
- Tester diod
- Tak
- Pomiar hFE tranzystorów
- Nie
- Buzzer
- Tak
- Wskaźnik rozładowanej baterii
- Tak
- Automatyczny wyłącznik
- Tak
- Podświetlenie wyświetlacza
- Tak
- Battery type
- 6F22
- Length
- 208 mm
- Width
- 103 mm
- Thickness
- 64,5 mm
- Weight
- 635 g
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Brymen BM869s is an advanced multimeter that, thanks to its high accuracy and advanced functions, is an ideal tool for professional applications. Equipped with functions such as Beep-Jack™, VFD V & Hz, CREST 1ms and many others, it ensures safety and precision in every measurement. Perfect for applications in electronics, industrial automation and electromechanical equipment servicing. Brymen BM869s
zł1,150.00
24h
Available quantity: 2
Available

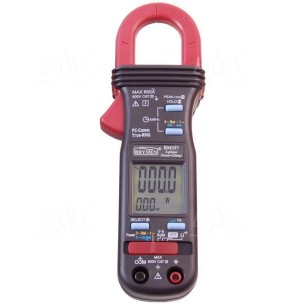

True RMS clamp multimeter for accurate AC current measurements up to 600 A and AC/DC voltage up to 600 V. The device offers kWh energy recording, three-phase power measurements, a peak-RMS function, and a quick continuity test. Meets CAT III 600 V safety standards, has 6 kV surge protection, and a backlit display, making it an ideal choice for professionals. Brymen BM357s
