- New

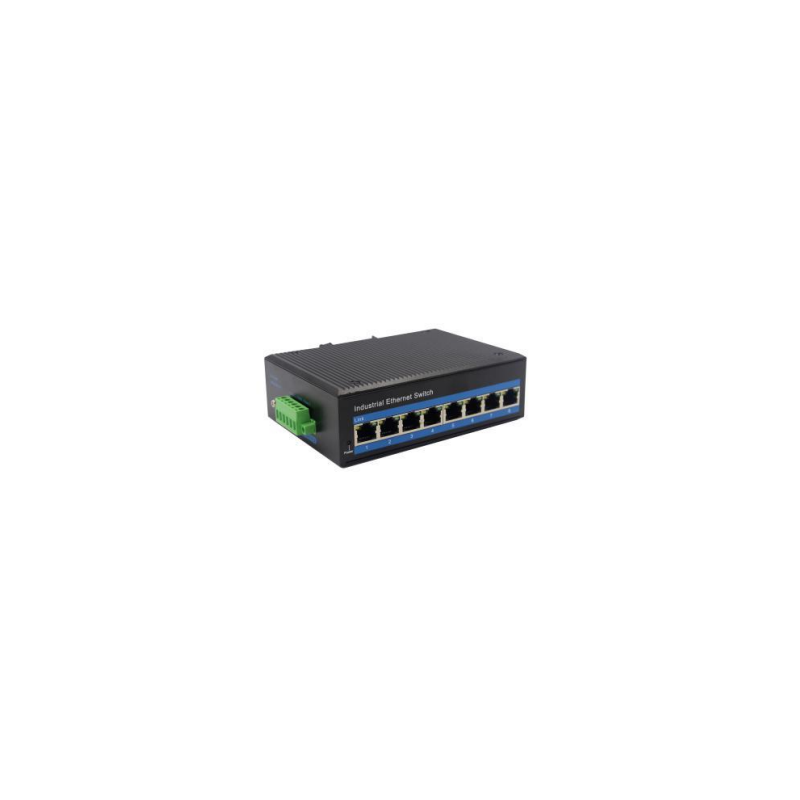

USR-ISG008P – Industrial PoE+ switch, 8-port, 10/100/1000Base-TX, IP40
ID: 1189729
zł485.35
Tax included
zł394.59 tax excl.
Industrial switch USR-ISG008P with 8 PoE+ ports in a metal IP40 enclosure ensures reliable data transmission and power supply for end devices in industrial applications. The compact enclosure, wide operating temperature range, and redundant power supply make it a suitable solution for automation systems, monitoring, and IoT infrastructure.
Description
The industrial switch USR-ISG008P equipped with 8 RJ-45 10/100/1000Base-TX ports with PoE+ function compliant with IEEE 802.3af/at enables data transmission and power supply up to 30 W per port. Designed for use in industrial environments such as production halls, monitoring systems, or transportation infrastructure. The slim metal enclosure meets the IP40 ingress protection rating, ensuring resistance to dust and electromagnetic interference.
The device operates in a wide temperature range from -40°C to 85°C and supports redundant DC power supply in the range of 12–52 V as well as PoE power 48–57 V DC. The design allows mounting on a DIN rail or wall, facilitating installation in control cabinets. The switch supports Store-and-Forward architecture, Auto-MDI/MDI-X detection, flow control, and automatic MAC address learning. Thanks to compliance with industrial standards, it ensures stable and safe operation even in demanding conditions.
Properties
- Ethernet ports: 8 × 10/100/1000Base-TX RJ-45 (auto-MDI/MDI-X)
- PoE ports: 8 × IEEE 802.3af/at (ports 1–8), up to 30 W per port
- Power supply: 12–52 V DC (redundant), PoE: 48–57 V DC
- Throughput: 20 Gbps
- Packet buffer: 512 KB
- MAC table: 2K
- Frame size: max. 1522 bytes
- Operating temperature: -40°C to 85°C
- Storage temperature: -40°C to 85°C
- Humidity: 5–95% (non-condensing)
- Enclosure: metal, IP40 rating
- Mounting: DIN rail or wall mount
- Dimensions: 143 × 101 × 44 mm
- Product weight: 0.52 kg
- Weight with packaging: 0.62 kg
- Protections: ESD 6 kV (Ethernet), EFT 6 kV (power)
- Certifications: FCC, EN55022, IEC61000-4 (EMC series)
