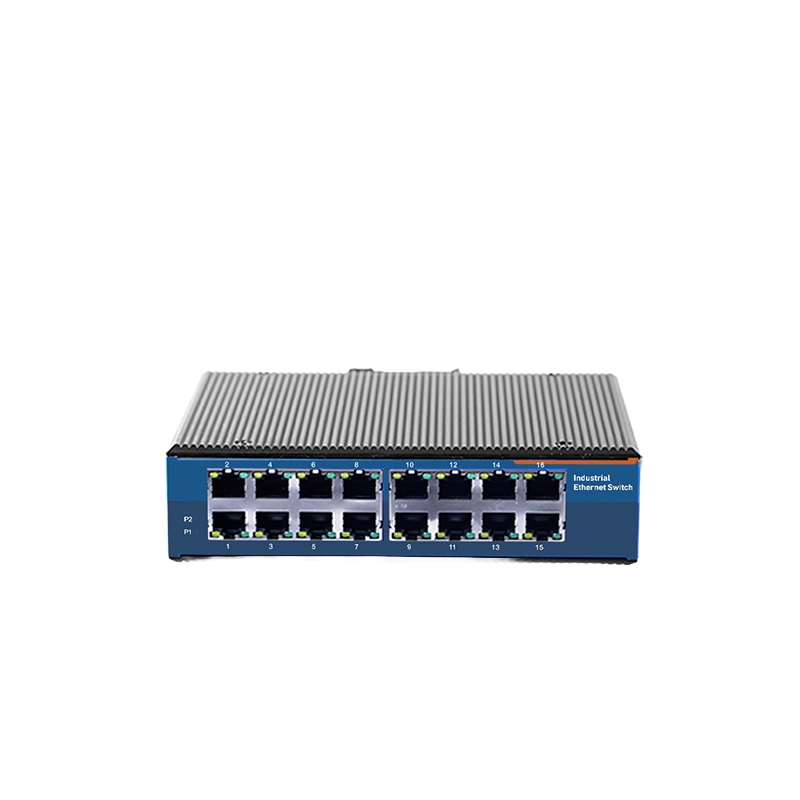

USR-ISG016 – Industrial 16-port switch, 10/100/1000Base-T(X), IP40
search
  • USR-ISG016 – Industrial 16-port switch, 10/100/1000Base-T(X), IP40
ID: 1189730
zł869.00
Tax included

zł706.50 tax excl.

USR-ISG016 is a 16-port, unmanaged Ethernet switch for industrial applications, offering high reliability in environments with extreme conditions. Thanks to gigabit transmission, a metal IP40 enclosure, and a wide power supply range, it is suitable for automation, transportation, energy, and control systems.

4 weeks
Awaiting delivery
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The USR-ISG016 switch belongs to a series of industrial, unmanaged Layer 2 switches designed to operate in harsh environmental conditions. Equipped with 16 RJ-45 10/100/1000Base-T(X) ports, it provides communication at full gigabit speed. The device supports auto-negotiation, full- and half-duplex modes, and auto MDI/MDI-X function. Thanks to its plug-and-play design, it requires no configuration, which simplifies deployment in industrial installations, automation, transportation, and energy sectors.

The enclosure made of metal, compliant with the IP40 protection rating, protects the electronics from dust and contaminants. The switch features a wide DC power supply range of 12–52 V and resistance to reverse polarity and overloads. It operates reliably in temperatures ranging from -40°C to +85°C. The device's lifetime (MTBF) exceeds 300,000 hours.

Properties

  • Ethernet ports: 16 × 10/100/1000Base-T(X) RJ-45
  • Throughput: 56 Gbps
  • MAC table: 8K
  • Packet buffer: 4 Mb
  • Forwarding rate: 23.8 Mpps
  • Switching latency: <10 µs
  • Power supply: 12–52 V DC (6-pin screw terminal)
  • Power consumption: <15 W
  • Operating temperature: -40°C to +85°C
  • Storage temperature: -40°C to +85°C
  • Humidity: 5–95% (non-condensing)
  • Enclosure: metal, IP40
  • Mounting: DIN rail 35 mm
  • Dimensions: 179 × 134 × 46 mm
  • Weight: 0.9 kg
  • MTBF: >300,000 h
  • Certifications: CE, FCC, RoHS
