Industrial Ethernet switch with 8 ports 100/1000M, characterized by a solid aluminum housing with IP40 protection, which provides dust resistance and effective heat dissipation. With a wide operating temperature range (-40℃ to +85℃), redundant power supply (9.6V - 60V DC) and 6KV surge protection, it is an ideal solution for demanding industrial environments such as monitoring systems, rail transport and renewable energy. PUSR USR-ISG008

24h
Available
Available quantity: 13
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

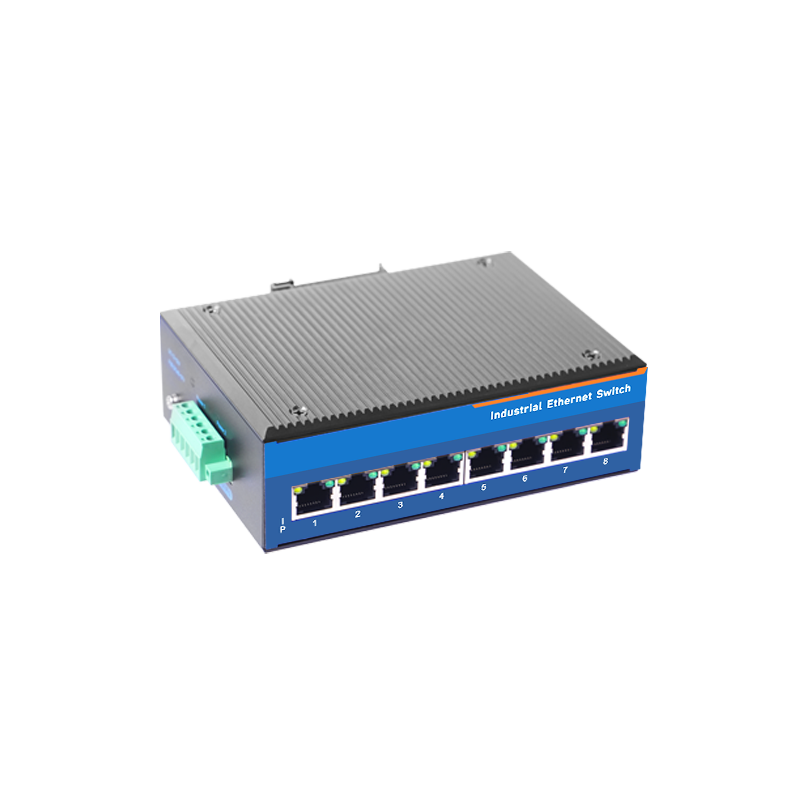

The USR-ISG008 is an industrial-grade, unmanaged Ethernet switch with 8 ports supporting 100/1000M speeds, designed for operation in harsh environments. Its aluminum metal housing and IP40 protection rating make it resistant to dust while effectively dissipating heat without requiring fans. The device supports a wide operating temperature range (-40℃ to +85℃), making it an ideal choice for industrial applications. The switch is equipped with redundant power input (9.6V - 60V DC), ensuring stable operation even in the event of a power failure. Additionally, it features 6KV surge protection, reverse polarity protection, and short-circuit protection. With support for DIN rail mounting, installation is quick and convenient. This model is widely used in smart installations, rail transport, monitoring systems, renewable energy, and other industrial environments requiring reliable and weather-resistant network solutions.


Features

  • Data throughput: 16G
  • Transmission mode: store and forward
  • MAC addresses: 4K
  • Packet buffer size: 1 Mbits
  • Number of Ethernet ports: 8 x 10/100/1000Mbps
  • Interfaces: RJ45, auto MDI/MDIX, auto negotiation
  • Supported cables: UTP Category 5
  • Network standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x flow control, IEEE 802.3ab 1000BaseTX
  • Power connector: 1 removable 5-pin terminal
  • Power consumption: <5W
  • Overcurrent protection
  • Reverse polarity protection
  • Mounting type: DIN rail
  • EMC protection:
    • ESD: IEC 61000-4-2, Level 3 (air discharge ±8kV, contact discharge ±6kV)
    • EFT: IEC 61000-4-4, Level 3
    • Surge: IEC 61000-4-5, Level 3
  • Power supply: DC 9.6V to 60V
  • Operating temperature: -40℃ to +85℃
  • Relative humidity: 5% - 95% (non-condensing)
  • Enclosure: IP40, aluminum
  • Dimensions: 118 x 96 x 47.5 mm
  • Weight: 430 g
