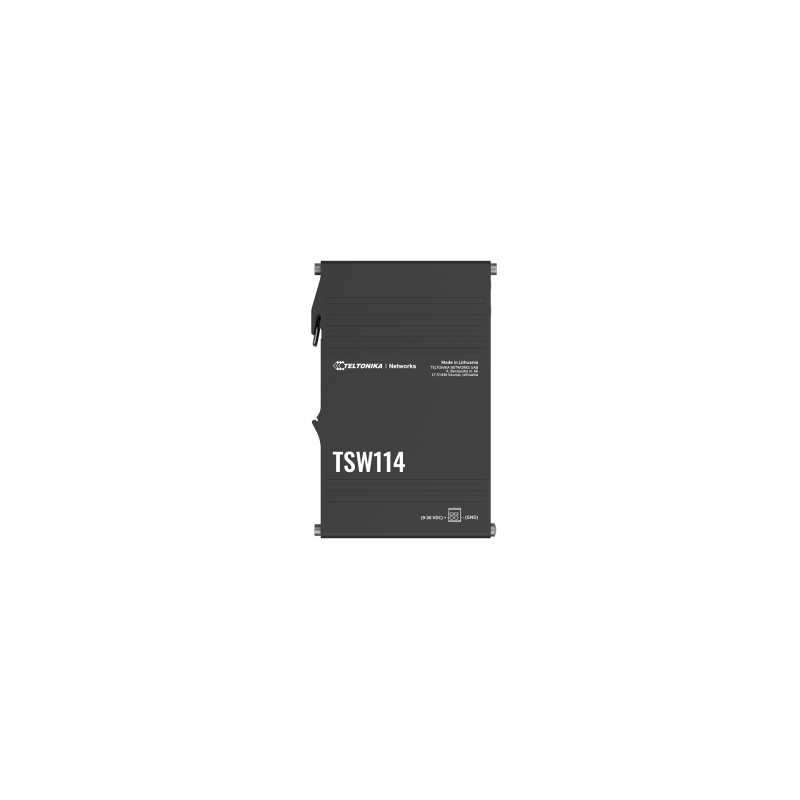

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208104
4779051840298
zł168.30
Tax included

zł136.83 tax excl.

Industrial Ethernet switch for building wired networks in automation and control cabinets; 5 x Gigabit Ethernet 10/100/1000 Mbps; front-facing Ethernet ports; integrated DIN rail mount; Plug and Play; 10 Gbps non-blocking bandwidth; 128 KB packet buffer; 2K MAC address table; Jumbo Frame support up to 9216 B; passive PoE powering through ETH1; 9-30 VDC power supply; anodised aluminium housing; IP30; operating temperature from -40°C to 75°C. Teltonika TSW114

2 weeks
Awaiting delivery

Description

Industrial Ethernet switch designed for building wired network connections in automation, control cabinets, monitoring systems, and industrial installations. Teltonika TSW114 provides five Gigabit Ethernet 10/100/1000 Mbps ports with Auto MDI/MDIX support and compatibility with IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az standards. All Ethernet ports are located on the front of the housing, simplifying cable routing and access to connectors after installation in a control cabinet. Plug and Play operation requires no configuration, while 10 Gbps non-blocking bandwidth, a 128 KB packet buffer, a 2K MAC address table, and Jumbo Frame support up to 9216 B provide suitable parameters for data transmission between Gigabit Ethernet devices.

The integrated DIN rail mount enables installation without an additional DIN rail mounting kit, while compact dimensions of 113.1 x 27.4 x 80.5 mm reduce the required space inside a control cabinet. The switch can be powered with 9-30 VDC through a 2-pin industrial DC connector or via passive PoE through the ETH1 port in Mode B; passive PoE is not compatible with IEEE 802.3af, IEEE 802.3at, or IEEE 802.3bt. Power consumption reaches 0.3 W at idle and a maximum of 2.3 W. The anodised aluminium housing, IP30 ingress protection rating, and operating temperature range from -40°C to 75°C support deployment in automation, control systems, monitoring installations, and industrial wired networks.

Features

  • Ethernet
    • 5 x RJ45 10/100/1000 Mbps ports
    • Gigabit Ethernet
    • Auto MDI/MDIX
    • IEEE standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    • Front-facing Ethernet ports
    • Plug and Play
  • Switching performance
    • Non-blocking bandwidth: 10 Gbps
    • Packet buffer: 128 KB
    • MAC address table: 2K entries
    • Jumbo Frame support: up to 9216 B
  • Power supply
    • Power connector: 2-pin industrial DC
    • Input voltage: 9-30 VDC
    • Passive PoE powering through ETH1
    • Passive PoE: Mode B, 9-30 VDC
    • Passive PoE not compatible with IEEE 802.3af, IEEE 802.3at, or IEEE 802.3bt
    • Idle power consumption: 0.3 W
    • Maximum power consumption: 2.3 W
  • Interfaces and indicators
    • 5 x RJ45 10/100/1000 Mbps ports
    • 1 x 2-pin industrial DC power connector
    • 1 x Power LED
    • 10 x Ethernet status LEDs
    • 1 x grounding screw
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 113.1 x 27.4 x 80.5 mm
    • Weight: 174 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 5% to 95%, non-condensing
    • Integrated DIN rail mount
    • Wall or flat-surface mounting with an additional mounting kit

Kit Includes

  • Teltonika TSW114 switch
  • 2-pin power connector
  • Quick Start Guide
1208104

Data sheet

Switch Type
Unmanaged
Number of Ethernet Ports
5
Ethernet Speed
10/100/1000 Mb/s
PoE
Yes
Number of PoE Ports
None
Number of SFP Slots
None
VLAN
Yes
DIN Rail Mounting
Yes
Power supply voltage
9 - 30 V DC
Tightness class
IP30
