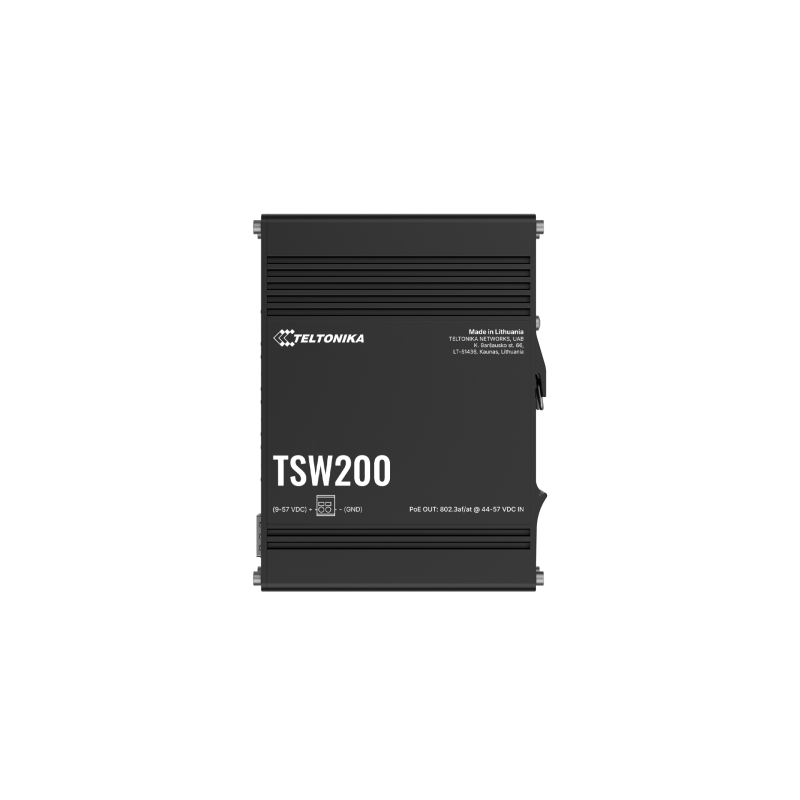

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208105
4779051843671
zł383.74
Tax included

zł311.98 tax excl.

Industrial Ethernet switch for building wired networks and powering PoE devices in automation, monitoring, and industrial installations; 8 x Gigabit Ethernet 10/100/1000 Mbps with PoE+; 2 x SFP ports for fibre-optic connections; IEEE 802.3af and 802.3at; up to 30 W per port; total PoE power budget of 240 W; 20 Gbps non-blocking bandwidth; Jumbo Frames up to 9216 B; 7-57 VDC power supply; aluminium housing; integrated DIN rail mount; IP30; operating temperature from -40°C to 75°C. Teltonika TSW200

2 weeks
Awaiting delivery

Description

Industrial Ethernet switch designed for building wired networks and centrally powering PoE devices in automation, monitoring systems, IoT installations, and industrial infrastructure. Teltonika TSW200 provides eight Gigabit Ethernet 10/100/1000 Mbps ports with PoE and PoE+ support and two SFP ports for fibre-optic communication. The Ethernet ports support IEEE 802.3af and IEEE 802.3at standards, providing up to 30 W per port with a total PoE power budget of 240 W. The available power output allows IP cameras, access points, telemetry equipment, and other network devices to receive data and power over Ethernet without separate power cabling. Two SFP ports enable fibre-optic network connections for communication over longer distances.

The 20 Gbps non-blocking bandwidth and 128 KB packet buffer, combined with a 2K MAC address table and Jumbo Frame support up to 9216 B, provide suitable parameters for data transmission between Gigabit Ethernet devices. The switch operates from a 7-57 VDC power supply, while PoE-Out requires an input voltage from 44 V to 57 VDC. Short-circuit and overload protection safeguard the PoE outputs. The anodised aluminium housing, integrated DIN rail mount, IP30 ingress protection rating, and operating temperature range from -40°C to 75°C support installation in control cabinets, automation systems, monitoring installations, and distributed industrial networks.

Features

  • Ethernet
    • 8 x RJ45 10/100/1000 Mbps ports
    • Gigabit Ethernet
    • Auto MDI/MDIX
    • IEEE standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    • IEEE 802.3z standard for fibre-optic communication
  • SFP
    • 2 x SFP ports
    • Fibre-optic connection support
    • Support for longer-distance network connections
  • PoE
    • 8 x PoE+ ports on ports 1-8
    • PoE standard: IEEE 802.3af, PoE Type 1
    • PoE+ standard: IEEE 802.3at, PoE+ Type 2
    • Maximum PoE power per port: 30 W
    • Total PoE power budget: 240 W
    • PoE short-circuit protection
    • PoE overload protection
  • Switching performance
    • Non-blocking bandwidth: 20 Gbps
    • Packet buffer: 128 KB
    • MAC address table: 2K entries
    • Jumbo Frame support: up to 9216 B
  • Power supply
    • Power connector: 2-pin industrial DC
    • Input voltage: 7-57 VDC
    • PoE-Out input voltage range: 44-57 VDC
    • Reverse polarity protection: up to -80 V
    • Idle power consumption: 1.81 W
    • Maximum power consumption without PoE load: 5.5 W
    • Maximum power consumption with PoE: 245.5 W
  • Interfaces and indicators
    • 8 x RJ45 10/100/1000 Mbps ports
    • 2 x SFP ports
    • 1 x 2-pin industrial DC power connector
    • 1 x Power LED
    • 16 x Ethernet status LEDs
    • 2 x SFP status LEDs
    • 1 x grounding screw
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 132 x 44.2 x 95.1 mm
    • Weight: 517 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 5% to 95%, non-condensing
    • Integrated DIN rail mount
    • Wall or flat-surface mounting with an additional mounting kit

Kit Includes

  • Teltonika TSW200 switch
  • 2-pin power connector
  • Quick Start Guide
1208105

Data sheet

Switch Type
Unmanaged
Number of Ethernet Ports
8
Ethernet Speed
10/100/1000 Mb/s
PoE
Yes
Number of PoE Ports
8
Number of SFP Slots
2
VLAN
No
DIN Rail Mounting
Yes
Power supply voltage
7 - 57 V DC
Tightness class
IP30
