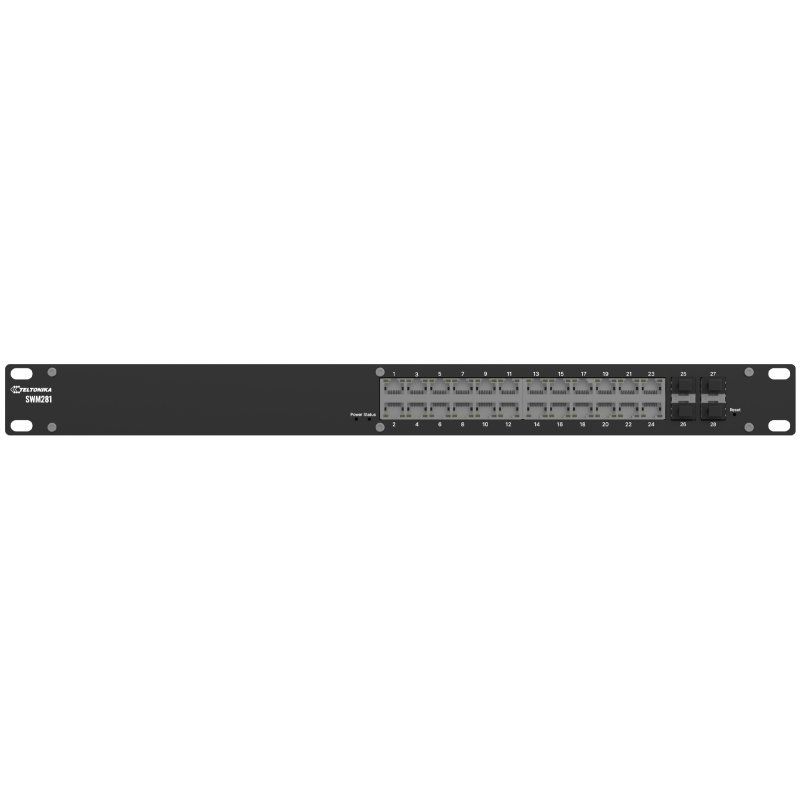

Main view
search
  • Main view
  • Rear view
  • Angled view
  • Angled view
  • Top view
ID: 1208067
4779051846252
zł795.93
Tax included

zł647.10 tax excl.

Managed L2+ Ethernet switch for extensive industrial networks and automation infrastructure; 24 x Gigabit Ethernet 10/100/1000 Mbps; 4 x SFP ports; L2 and L3 functionality; BGP, OSPF v2, RIP v1/v2 and EIGRP routing; VLAN; STP/RSTP; LACP; MRP; EtherNet/IP; QoS; 802.1X; 56 Gbps non-blocking bandwidth; 83.33 Mpps forwarding rate; Jumbo Frames up to 10000 B; management via WebUI, SSH, SNMP and RMS; 100-240 VAC power supply; 19" rack-mount housing; IP30. Teltonika SWM281

24h
Available
Available quantity: 1

Description

Managed Ethernet switch designed for building extensive wired networks in industrial automation, plant infrastructure, control systems and installations requiring a large number of connections. Teltonika SWM281 provides 24 Gigabit Ethernet 10/100/1000 Mbps ports and 4 dedicated SFP ports, enabling connections between local devices and fibre-optic links over longer distances. Layer 2 functionality includes VLAN, STP/RSTP, Loop Protection, Port Isolation, Port Mirroring, IGMP Snooping and IEEE 802.3ad LACP link aggregation. MRP support in client and manager roles together with EtherNet/IP facilitates integration with industrial network infrastructure.

Layer 3 functionality includes static IPv4 and IPv6 routing as well as BGP, OSPF v2, RIP v1/v2 and EIGRP dynamic routing. QoS mechanisms provide traffic prioritisation based on port, DSCP, IEEE 802.1p and TOS, while Rate Limiting, Storm Control and Port-Based Traffic Shaping support bandwidth management. Security mechanisms include RADIUS and TACACS+ authentication, IEEE 802.1X network access control and MAC address filtering. Cable Diagnostic, Ping, Traceroute and Nslookup tools support network diagnostics and troubleshooting.

A non-blocking bandwidth of 56 Gbps and forwarding rate of 83.33 Mpps provide the capacity required for handling high traffic volumes between multiple connected devices. The switch uses a Realtek 500 MHz processor, 128 MB of DDR3 RAM and the OpenWrt-based SwmOS operating system. Management options include WebUI, SSH, SNMP and Teltonika RMS, while FOTA provides firmware update capabilities. The 483 mm wide housing supports installation in a 19" rack, while direct 100-240 VAC, 50/60 Hz input eliminates the need for an external DC power supply. SWM281 can be deployed in telecommunications cabinets, automation systems, plant networks and installations combining numerous Ethernet devices with fibre-optic infrastructure.

Features

  • Ethernet
    • 24 x RJ45 10/100/1000 Mbps ports
    • Gigabit Ethernet
    • Auto MDI/MDIX
    • IEEE standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3ad
  • SFP
    • 4 x dedicated SFP ports
    • Fibre-optic connection support
  • L2 features
    • VLAN
    • STP/RSTP
    • Loop Protection
    • Port Isolation
    • Port Mirroring
    • Forwarding Table
    • IGMP Snooping
    • Multicast Querier
    • IEEE 802.3ad LACP port aggregation
    • IEEE 802.3az EEE management
    • MRP Client
    • MRP Manager
    • EtherNet/IP
    • LLDP
  • Routing and L3 features
    • Static IPv4 routing
    • Static IPv6 routing
    • BGP dynamic routing
    • OSPF v2 dynamic routing
    • RIP v1/v2 dynamic routing
    • EIGRP dynamic routing
    • DHCP Server
    • DHCP Client
    • DHCP Static Leases
    • DHCPv6 Client
    • Static IPv6 address
  • QoS and traffic management
    • Port Priority
    • DSCP Priority
    • IEEE 802.1p Priority
    • TOS
    • SP, WFQ and WRR scheduling methods
    • Rate Limiting
    • Storm Control
    • Port-Based Traffic Shaping
  • Security
    • IEEE 802.1X Port-Based Network Access Control
    • IEEE 802.1X Client and Server
    • RADIUS
    • TACACS+
    • MAC address filtering
    • IP and login attempt blocking
    • VLAN separation
  • Management and diagnostics
    • WebUI via HTTP/HTTPS
    • SSH v1 and v2
    • SNMP v2 and v3
    • Teltonika RMS
    • FOTA
    • Teltonika Networks Web API
    • CLI
    • Cable Diagnostic
    • Ping
    • Traceroute
    • Nslookup
    • System Log
    • Event Log
    • Firmware update availability notifications
  • System
    • Operating system: OpenWrt-based SwmOS
    • Processor: Realtek 500 MHz MIPS-4KEc
    • RAM: 128 MB DDR3
    • Flash memory: 16 MB Serial Flash
    • BusyBox Shell
    • Lua
    • C
    • C++
    • Package Manager
    • SDK
  • Switching performance
    • Non-blocking bandwidth: 56 Gbps
    • Forwarding rate: 83.33 Mpps
    • Packet buffer: 512 KB
    • MAC address table: 8K entries
    • Jumbo Frame support: up to 10000 B
  • Power supply
    • Power connector: C14
    • Input voltage: 100-240 VAC
    • Frequency: 50/60 Hz
    • Idle power consumption: 5.5 W
    • Maximum power consumption: 20 W
  • Interfaces and indicators
    • 24 x RJ45 10/100/1000 Mbps ports
    • 4 x SFP ports
    • 1 x C14 power connector
    • 1 x Power LED
    • 48 x Ethernet status LEDs
    • 4 x SFP status LEDs
    • 1 x Status LED
    • 1 x Reset button
    • 1 x grounding screw
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 483 x 44 x 234 mm
    • Weight: 1853 g
    • Ingress protection rating: IP30
    • Operating temperature: 0°C to 50°C
    • Operating humidity: 10% to 90%, non-condensing
    • 19" rack mounting

Kit includes

  • Teltonika SWM281 switch
  • Power cable
  • Rack mounting kit
  • Quick Start Guide
1208067

Data sheet

Switch Type
Managed
Number of Ethernet Ports
24
Ethernet Speed
10/100/1000 Mb/s
PoE
No
Number of PoE Ports
None
Number of SFP Slots
4
VLAN
Yes
DIN Rail Mounting
No
Power supply voltage
100 - 240 V AC
Tightness class
IP30
