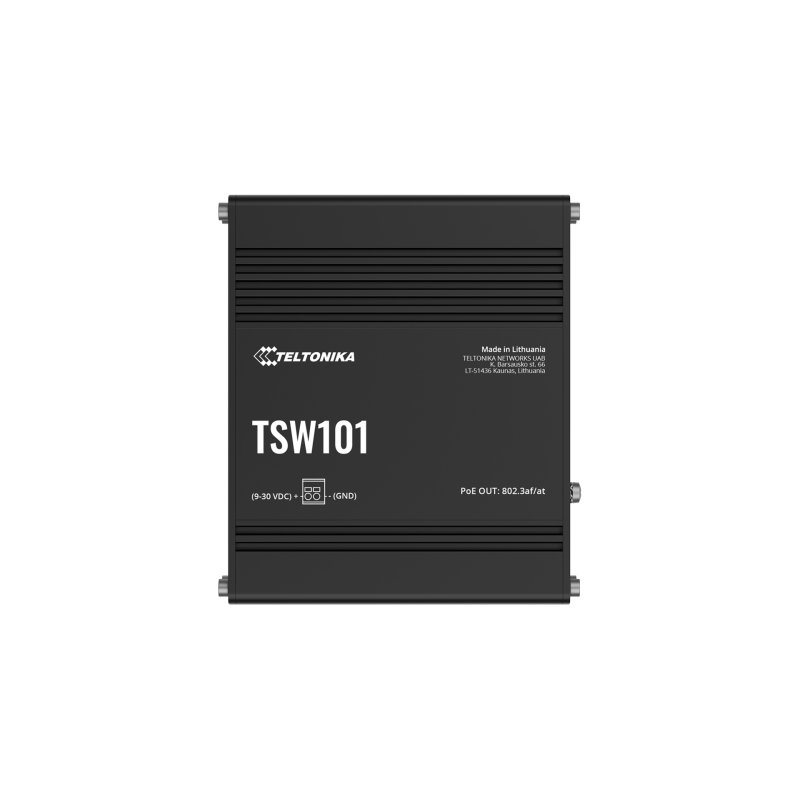

Main view
search
  • Main view
  • Angled view
  • Angled view
  • Side view
  • Side view
ID: 1208102
4779051840113
zł271.14
Tax included

zł220.44 tax excl.

Automotive Ethernet switch for wired networking and powering PoE devices in vehicles; 5 x Gigabit Ethernet 10/100/1000 Mbps; 4 x PoE+ ports; IEEE 802.3af and 802.3at; up to 30 W per port; total PoE power budget of 60 W; 10 Gbps bandwidth; Jumbo Frame support up to 9216 B; Plug and Play; 9-30 VDC power supply directly from 12 V or 24 V vehicle electrical systems; aluminium housing; IP30; operating temperature from -40°C to 75°C. Teltonika TSW101

24h
Available
Available quantity: 1

Description

Automotive Ethernet switch designed for establishing wired network connections and powering end devices in vehicles and mobile industrial systems. Teltonika TSW101 provides five Gigabit Ethernet 10/100/1000 Mbps ports, four of which support PoE and PoE+ according to IEEE 802.3af and IEEE 802.3at standards. Each PoE port can deliver up to 30 W, with a total power budget of 60 W. Connected devices such as IP cameras, access points, telemetry equipment and other network devices can receive power and data through a single Ethernet cable. Plug-and-Play operation requires no configuration, while 10 Gbps non-blocking bandwidth, a 2K-entry MAC address table and Jumbo Frame support up to 9216 B provide suitable parameters for data transmission between Gigabit Ethernet devices.

The 9-30 VDC input voltage range allows direct operation from 12 V or 24 V vehicle electrical systems without an additional power supply, with the same voltage range supported for PoE-Out. Power consumption reaches 0.64 W at idle, up to 2.31 W without PoE load and up to 62.3 W with PoE. An anodised aluminium housing, IP30 ingress protection rating and operating temperature range from -40°C to 75°C support deployment in vehicles, mobile surveillance systems, public and specialised transport, and installations requiring simultaneous Ethernet data transmission and power delivery.

Features

  • Ethernet
    • 5 x RJ45 10/100/1000 Mbps ports
    • Gigabit Ethernet
    • Auto MDI/MDIX
    • IEEE standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    • Maximum Ethernet cable length: 100 m
  • PoE
    • 4 x PoE+ ports on ports 1-4
    • PoE standard: IEEE 802.3af, PoE Type 1
    • PoE+ standard: IEEE 802.3at, PoE+ Type 2
    • Power mode: Alternative A
    • Maximum PoE power per port: 30 W
    • Total PoE power budget: 60 W
  • Switching performance
    • Non-blocking bandwidth: 10 Gbps
    • Packet buffer: 128 KB
    • MAC address table: 2K entries
    • Jumbo Frame support: up to 9216 B
  • Power supply
    • Power connector: 2-pin industrial DC socket
    • Input voltage: 9-30 VDC
    • PoE-Out input voltage range: 9-30 VDC
    • Power supply from 12 V or 24 V vehicle electrical system
    • Idle power consumption: 0.64 W
    • Maximum power consumption without PoE load: 2.31 W
    • Maximum power consumption with PoE: 62.3 W
    • No additional PSU required when powered from a vehicle electrical system
  • Interfaces and indicators
    • 5 x RJ45 10/100/1000 Mbps ports
    • 1 x 2-pin industrial DC power connector
    • 1 x Power LED
    • 10 x Ethernet status LEDs
    • 1 x grounding screw
  • Mechanical and environmental specifications
    • Housing: anodised aluminium
    • Dimensions: 115 x 32 x 95 mm
    • Weight: 384 g
    • Ingress protection rating: IP30
    • Operating temperature: from -40°C to 75°C
    • Operating humidity: from 5% to 95%, non-condensing
    • DIN rail, wall or flat-surface mounting with an additional mounting kit

Kit includes

  • Teltonika TSW101 switch
  • 2-pin power connector
  • Quick Start Guide
1208102

Data sheet

Switch Type
Unmanaged
Number of Ethernet Ports
5
Ethernet Speed
10/100/1000 Mb/s
PoE
Yes
Number of PoE Ports
4
Number of SFP Slots
None
VLAN
No
DIN Rail Mounting
No
Power supply voltage
9 - 30 V DC
Tightness class
IP30
