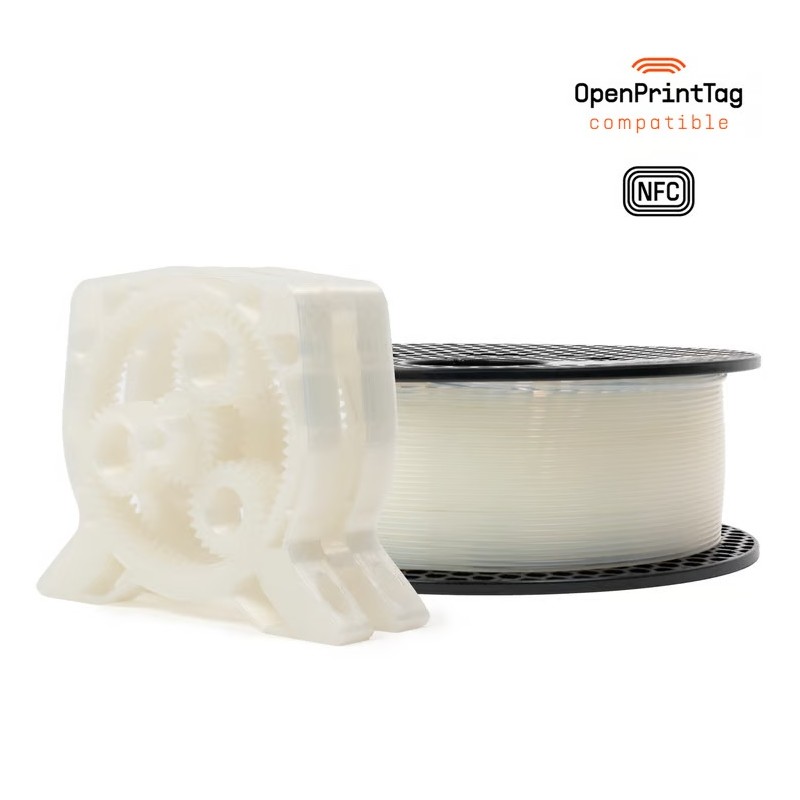

Prusament PA11 Natural 800g NFC Filament 1.75mm

Description

Prusament PA11 Natural 1.75mm 0.80kg NFC filament is designed for FDM/FFF printing of technical parts, gears, moving components and parts requiring resistance to wear and mechanical loads. PA11 belongs to the polyamide family and, according to the manufacturer, combines useful mechanical properties with lower moisture uptake than many other polyamides and a high level of strength consistency across different print directions.

Material density is 1.02g/cm³. Tensile strength of the filament itself reaches 44.8±0.5MPa, while hardness is 70 Shore D. Interlayer adhesion reaches 32±1MPa, and the tensile-strength anisotropy ratio is 0.84. A value closer to 1 indicates more uniform tensile strength across different directions relative to layer orientation. :chatgpt-content-reference{index="4"}

For printed test specimens, tensile strength reached 38.3±0.8MPa in the XY direction and 39.5±0.5MPa in the XZ direction. Tensile modulus was 1.2GPa in both directions, while flexural strength reached 41.4±0.8MPa and 47.2±0.7MPa respectively. Notched Charpy impact strength reached 12.9±2.1kJ/m² for XY specimens and 11.7±1.2kJ/m² for XZ specimens. :chatgpt-content-reference{index="5"}

The recommended nozzle temperature is 275±10°C, the bed temperature is 100±10°C and the chamber temperature is 55±5°C. The manufacturer specifies a maximum volumetric speed of 10mm³/s and cooling fan setting of 15–20%. The recommended build surface is the PA Nylon sheet. These parameters are defined for Prusament PA11 and may require adjustment depending on printer configuration and part geometry. :chatgpt-content-reference{index="6"}

PA11 remains hygroscopic. At 25°C and 30% relative humidity, the manufacturer measured moisture absorption of 0.26% after 24h and 0.46% after 7 days. Heat deflection temperature is 58.7°C at 0.45MPa and 49.9°C at 1.80MPa. The values in the technical data sheet refer to specific test methods and conditions and should be treated as comparative engineering data when designing functional parts. :chatgpt-content-reference{index="7"}

Features

Basic parameters

• Manufacturer: Prusa Polymers
• Series: Prusament
• Material: PA11
• Color: Natural
• Printing technology: FDM/FFF
• Filament diameter: 1.75mm
• Diameter accuracy: ±0.02mm
• Net weight: 0.80kg
• Marking: NFC

Printing parameters

• Nozzle temperature: 275±10°C
• Bed temperature: 100±10°C
• Chamber temperature: 55±5°C
• Maximum volumetric speed: 10mm³/s
• Cooling fan: 15–20%
• Recommended build plate: PA Nylon

Material properties

• Density: 1.02g/cm³
• Moisture absorption after 24h: 0.26% at 25°C and 30% RH
• Moisture absorption after 7 days: 0.46% at 25°C and 30% RH
• Filament tensile strength: 44.8±0.5MPa (ISO 527)
• Hardness: 70 Shore D
• Interlayer adhesion: 32±1MPa
• Tensile-strength anisotropy ratio: 0.84

Printed specimen properties

• Tensile strength XY: 38.3±0.8MPa (ISO 527-1)
• Tensile strength XZ: 39.5±0.5MPa (ISO 527-1)
• Tensile modulus XY: 1.2GPa (ISO 527-1)
• Tensile modulus XZ: 1.2GPa (ISO 527-1)
• Tensile yield point XY: 5.6±0.1%
• Tensile yield point XZ: 5.6±0.1%
• Flexural strength XY: 41.4±0.8MPa (ISO 178)
• Flexural strength XZ: 47.2±0.7MPa (ISO 178)
• Flexural modulus XY: 1.1GPa (ISO 178)
• Flexural modulus XZ: 1.0GPa (ISO 178)
• Notched Charpy impact strength XY: 12.9±2.1kJ/m² (ISO 179-1)
• Notched Charpy impact strength XZ: 11.7±1.2kJ/m² (ISO 179-1)

Thermal properties

• Heat deflection temperature at 0.45MPa: 58.7°C (ISO 75)
• Heat deflection temperature at 1.80MPa: 49.9°C (ISO 75)
