Pololu Adapter for Micro Metal Gearmotors – JST SH-Style Connector Board, 2-Pin, Side-Entry, 10pcs
ID: 1199881
zł22.55
Tax included
zł18.33 tax excl.

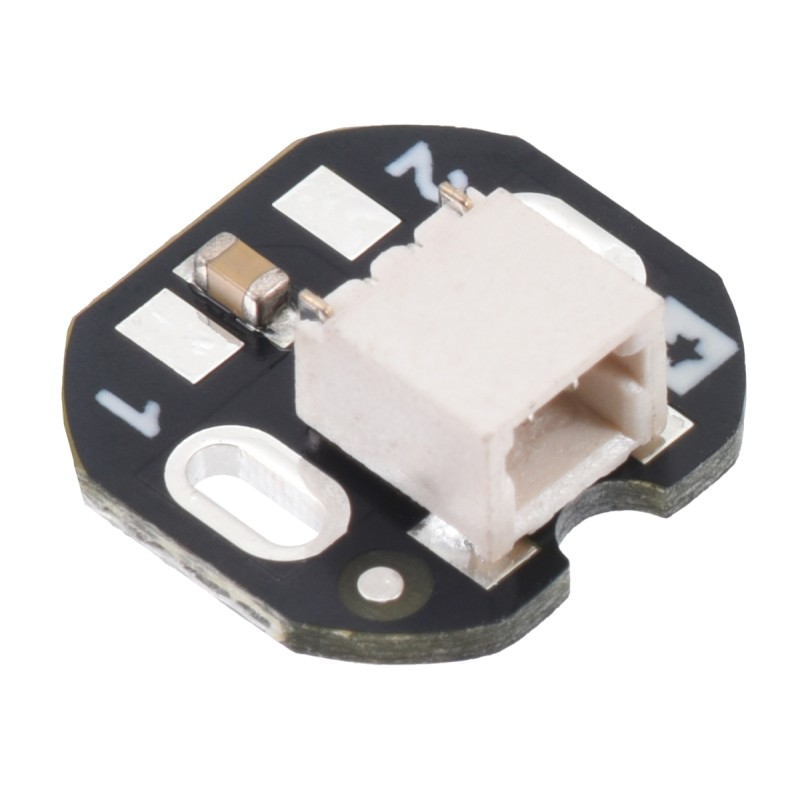

A 10-pack of adapter boards with 2-pin JST SH-type side-entry connectors for Pololu single-shaft micro metal gearmotors. Ideal for compact electronic and robotic designs requiring secure and space-efficient cable connections. Pololu 5099
Description
A set of ten adapter boards with 2-pin male JST SH-type connectors designed for Pololu single-shaft micro metal gearmotors, including HPCB versions. The side-entry orientation routes the cables perpendicular to the motor shaft, making it ideal for installations with limited vertical space. The boards are soldered directly to the motor terminals and fit within the motor’s cross-section. The connectors are compatible with standard female JST SH 2-pin cables, and pin 1 corresponds to the “1” marking on the PCB. Pololu 5099
Properties
- Connector type: JST SH, 2-pin, side-entry
- Compatibility: Pololu single-shaft micro metal gearmotors (not compatible with extended back shaft versions)
- Rated voltage: 50 V
- Rated current: 1 A
- Board dimensions: 10.2 × 9.6 × 5.2 mm
- Weight: 0.2 g
1199881
- Dimension diagrams of the JST SH-Style Connector Boards for Micro Metal Gearmotors (387,04 kB)
- 3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Back-Entry (2,61 MB)
- 3D model of the JST SH-Style Connector Board for Micro Metal Gearmotors, 2-Pin, Side-Entry (2,63 MB)
- 3D models of Micro Metal Gearmotors (57,2 MB)
- Drill guide for the JST SH-Style Connector Boards for Micro Metal Gearmotors (43,42 kB)
