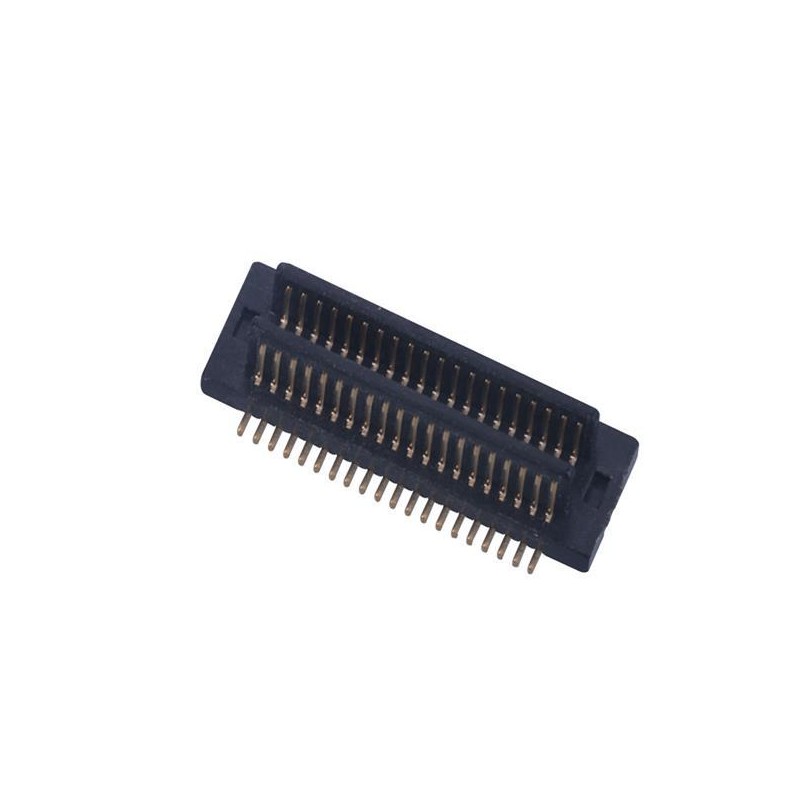

BTB050040-M1D08202 Board-to-Board Connector 0.5mm 2x20P SMT – Atom
ID: 587554
zł4.99
Tax included
zł4.06 tax excl.
Male board-to-board connector 2x20 PIN, 0.5 mm pitch, SMT mounting, mating height 3.0–6.5 mm, 0.3 A/pin, 60 V AC/DC. Atom BTB050040-M1D08202
Description
BTB050040-M1D08202 is a dual-row male board-to-board connector designed for surface-mount (SMT) applications with an ultra-fine 0.5 mm pitch. The 2x20 pin configuration enables a 40-position PCB-to-PCB connection in space-constrained devices such as smartphones, smartwatches, TWS earphones, and other compact electronic products.
The connector features a low-profile design and dual contact points to enhance connection stability. The housing is made of black LCP material compliant with UL94V-0 flammability standards. Contacts are made of phosphor bronze, with selective gold plating in the contact area and tin plating on solder tails. The connector supports reflow soldering up to 260°C. Available mating height ranges from 3.0 to 6.5 mm depending on the version.
Electrical specifications include 60 V AC/DC operating voltage, 0.3 A current rating per pin, 500 V AC dielectric withstanding voltage, and 60–100 mΩ contact resistance. Operating temperature range is -55°C to +85°C with up to 95% RH humidity. Mechanical durability is rated for 30 mating cycles.
Features
- Connector type: Male Board-to-Board
- Number of pins: 40 (2x20)
- Pitch: 0.5 mm
- Mounting type: SMT
- Mating height: 3.0–6.5 mm
- Current rating: 0.3 A per pin
- Operating voltage: 60 V AC/DC
- Dielectric withstanding voltage: 500 V AC
- Contact resistance: 60–100 mΩ
- Insulation resistance: min. 50 MΩ at 250 VDC
- Contact material: Phosphor bronze
- Contact plating: Gold in contact area, tin on solder tails
- Housing material: LCP
- Flammability rating: UL94V-0
- Operating temperature: -55°C to +85°C
- Humidity range: up to 95% RH
- Mating cycles: 30 cycles
- Compliance: RoHS, Halogen free
