- New

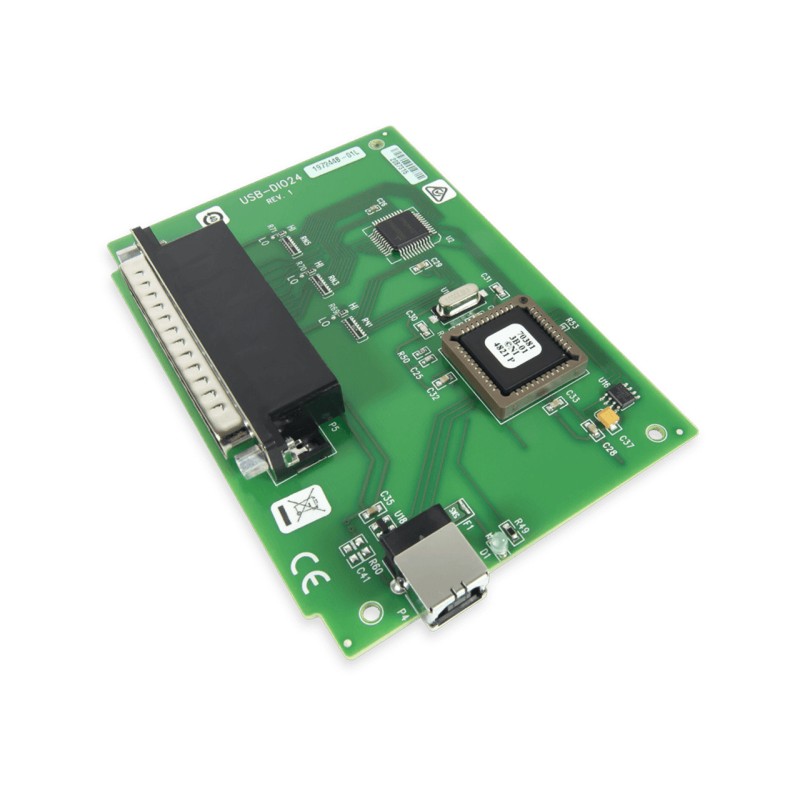

MCC USB-DIO24H/37 (6069-410-055) – High-Current Digital Input/Output Module
ID: 1189991
€245.47
Tax included
€199.57 tax excl.
MCC USB-DIO24H/37 is a digital I/O module with 24 channels, TTL signal support, USB power, and high current handling up to 64 mA. Digilent 6069-410-055
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
The MCC USB-DIO24H/37 is a digital input/output module with 24 channels, designed to support applications requiring precise signal control. Each channel can be configured as either input or output, allowing flexible adaptation to various systems. The module supports input voltages up to 5 V and output currents up to 64 mA. All I/O ports are routed to a 37-pin connector.
With its USB interface, the device offers fast data transfer and power without the need for external power sources. It is compatible with popular operating systems and provides programming support for languages such as Python, C++, C#, Visual Basic.NET, and LabVIEW™, making it a versatile tool for automation, testing, monitoring, and control applications.
Features
- 24 digital I/O channels, configurable as inputs or outputs
- 37-pin connector providing 24 digital I/O, one counter, six ground connections, and two power connections
- TTL signal support with input voltage up to 5 V
- Maximum output current of 64 mA per channel
- USB port for both communication and power
- LED indicators showing device status
Kit Includes
- MCC USB-DIO24H/37 module
- USB cable
1189991
