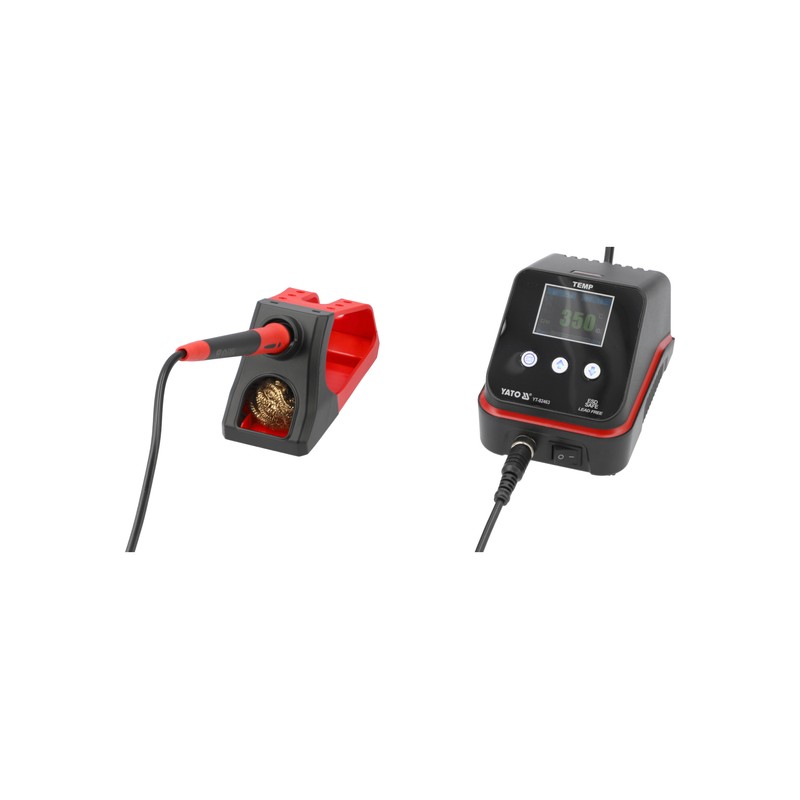

Connected YT‑82463 station with stand – front view
search
  • Connected YT‑82463 station with stand – front view
  • Control panel of the station – screen inactive

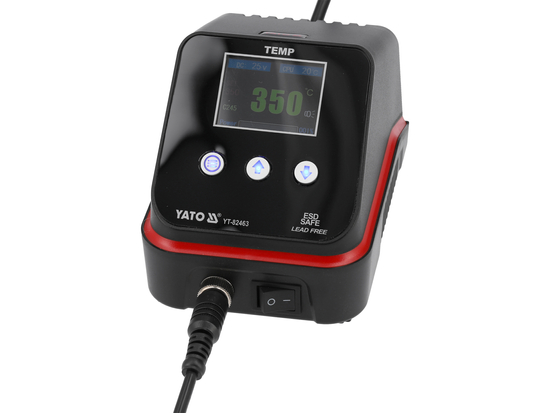

  • Control panel of the station – screen active
  • Stand with tip cleaner – front view
  • YT‑82463 soldering iron – side view
  • K-type soldering tip – close-up
  • YT‑82463 station packaging – general view
ID: 1202110
5906083115653
zł218.17
Tax included

zł177.37 tax excl.

Soldering station with color LCD display, 190 W power, temperature range 90–500 °C, calibration, sleep and auto power-off functions, memory for 3 presets.

24h
Available
Available quantity: 1

Description

The YT‑82463 190 W soldering station with C245 tip compatibility is designed for precision soldering of electronic components and joints in workshop and service environments. Adjustable temperature range of 90–500 °C with ±2 °C stability allows matching working parameters to various materials and soldering techniques. The unit supports quick tip replacement in the iron handle, and the flexible silicone cable is resistant to high temperatures.

                                                         The control panel displays the current and set temperature, operating mode, and the status of additional functions



A color LCD displays both actual and target temperature, while additional functions such as temperature calibration, sleep mode, and automatic power-off (20–999 s) improve thermal control and reduce tip wear. The device stores up to three user-defined temperature presets for faster switching between standard working profiles.

The kit includes the soldering station, soldering iron with C245-K tip, and a stand with integrated brass tip cleaner holder.

Features

  • Maximum power: 190 W
  • Temperature range: 90–500 °C
  • Temperature stability: ±2 °C
  • Tip type: C245
  • Display: color LCD
  • Temperature presets: 3 channels
  • Additional functions: temperature calibration (−80 to +80 °C), sleep mode (20–999 s), auto power-off (20–999 s)
  • Input voltage: 110–240 V AC, 50/60 Hz
  • Iron voltage: 25 V DC
  • Tip-to-ground resistance: < 2 Ω
  • Tip-to-ground potential: < 2 mV
  • Iron cable length: 1.1 m
  • Insulation class: II
  • Protection rating: IPX0
  • Weight: ~0.6 kg
  • Included in the kit: soldering station, soldering iron with C245-K tip, stand with tip cleaner holder
1202110

Data sheet

Station type
Tip soldering iron
Tip soldering iron temperature
90 - 500°C
HotAir temperature
No HotAir
Power
190 W

Manufacturer TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl

Responsible person TOYA S.A. Sołtysowicka 13-15 51-168 Wrocław Poland info@yato.pl
