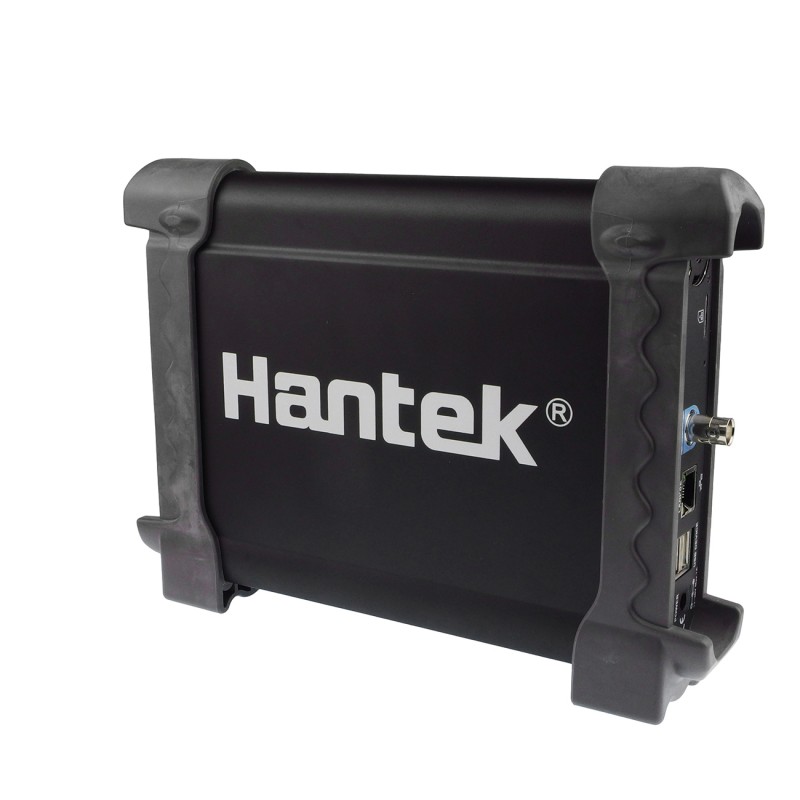

Hantek DSO3204 - 4-channel 200MHz oscilloscope
ID: 1186349
5906623408443
zł2,400.03
Tax included
zł1,951.24 tax excl.
4-channel digital oscilloscope connected to a computer. It offers a frequency bandwidth of 200 MHz and samples up to 1 GS/s. It can work with Windows-based devices. Hantek DSO3204
Description
4-channel digital oscilloscope. It features a wide bandwidth of 200 MHz and a sampling rate of 1 GSa/s. It has no built-in display and requires a computer with dedicated software to work properly. It has 20 built-in measurement functions, PASS/FAIL control and FFT analysis capability. It communicates via the SCPI protocol used in measurement equipment and is powered from 12 to 36 V. The oscilloscope can work with Windows 7, 8, 10 operating systems.
Features
- Number of channels: 4
- Bandwidth: 200MHz
- Sampling rate: 1GSa/s
- Memory depth: 128K
- Rise time: 1.7 ns
- Time base precision: ±50ppm
- Time base range: 2ns/div-1000s/div (sequences 1-2-4)
- Input impedance: 1MΩ 25pF
- Input sensitivity: 1mV/div to 10V/div
- Input coupling: AC/DC/GND
- Vertical resolution: 8-bit
- Maximum input voltage: 400 V
- Trigger mode: Edge, Pulse, Video, Alternative
- Trigger source: CH1, CH2, CH3, CH4, EXT, EXT/10
- Signal processing functions: +, -,x, ÷, FFT, Invert
- Measurement cursors: Cross, Trace, Horizontal, Vertical
- Automatic measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
- USB 2.0 interface
- Power supply: 12 V to 36 V
- Dimensions: 255 x 190 x 45 mm
- Weight: 1 kg
Kit contains
- Cover
- Hantek oscilloscope
- 4 x oscilloscope probe
- Power supply
- USB cable
1186349
Data sheet
- Type of oscilloscope
- Digital
- Bandwidth
- 200 MHz
- Sampling rate
- 1 Gsps
- Memory depth
- 128 MS
- Number of channels
- 4
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
