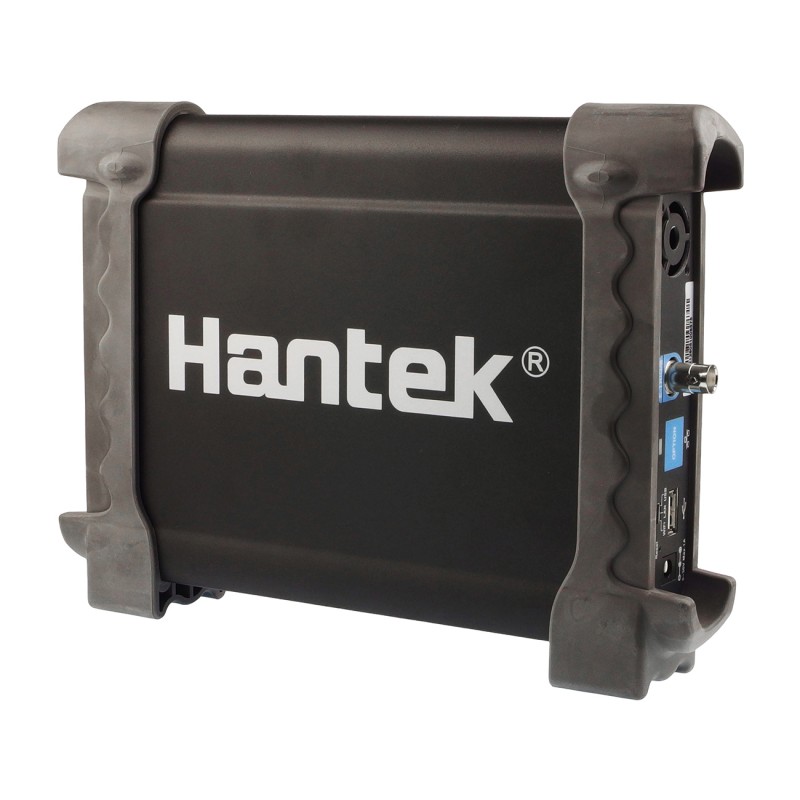

Hantek DSO3064 - 4-channel 60MHz oscilloscope
ID: 1186345
5906623435326
zł1,547.41
Tax included
zł1,258.06 tax excl.
4-channel digital oscilloscope connected to a computer. It offers a frequency band of 60 MHz and sampling up to 200 MS/s. It can work with Windows devices. Hantek DSO3064
Description
4-channel digital oscilloscope with built-in signal generator. It has a bandwidth of 60 MHz and a sampling rate of 200 MSa/s. It has no built-in display, and requires a computer with dedicated software to work properly. It has 20 built-in measurement functions, pass/fail control and FFT analysis capability. It communicates via the USB protocol and is powered with a voltage of 8 to 36 V. The oscilloscope can work with Windows operating systems.
Features
- Number of channels: 4
- Bandwidth: 60MHz
- Sampling rate: 200MSa/s
- Memory Depth: 4K
- Rise time: 5.8 ns
- Time Base Accuracy: ±50ppm
- Time base range: 5ns/div-100s/div
- Input impedance: 1MΩ 25pF
- Input sensitivity: 10mV/div to 5V/div
- Input coupling: AC/DC/GND
- Vertical resolution: 8-bit
- Maximum input voltage: 400V
- Trigger Mode: Edge, Pulse, Video, Alternative
- Trigger source: CH1, CH2, CH3, CH4, EXT
- Signal processing functions: +, -,x, ÷, FFT, Invert
- Measurement cursors: Cross, Trace, Horizontal, Vertical
- Auto Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
- USB 2.0 interface
- Power supply: 8V to 36V
- Dimensions: 255x190x45mm
- Weight: 1 kg
Kit contains
- Case
- Hantek oscilloscope
- 2 x oscilloscope probe
- Charger
- USB cable
1186345
Data sheet
- Type of oscilloscope
- Digital
- Bandwidth
- 60 Hz
- Sampling rate
- 200 MSPS
- Memory depth
- 4 Kpts
- Number of channels
- 4
