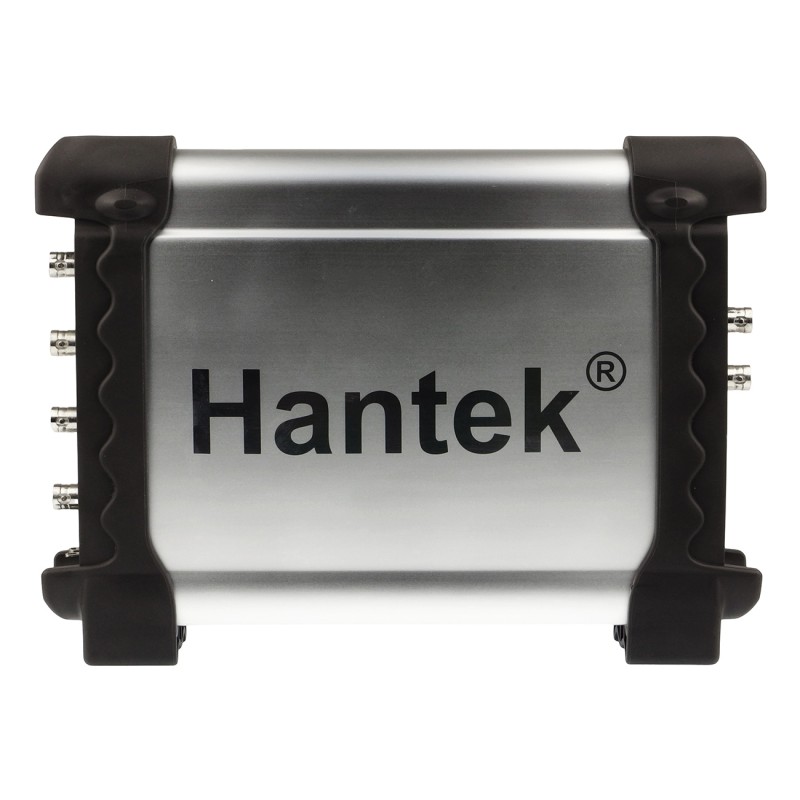

Hantek DSO3064A - 4-channel 60MHz oscilloscope with 25MHz signal generator
ID: 1186346
5906623435333
zł1,945.98
Tax included
zł1,582.10 tax excl.
4-channel digital oscilloscope with built-in signal generator for connection to a computer. It offers a frequency band of 60 MHz and sampling up to 200 MS/s. It can work with Windows devices. Hantek DSO3064A
Description
4-channel digital oscilloscope with built-in signal generator. It has a bandwidth of 60 MHz and a sampling rate of 200 MSa/s. It has no built-in display, and requires a computer with dedicated software to work properly. It has 20 built-in measurement functions, pass/fail control and FFT analysis capability. In addition, the oscilloscope offers a single-channel signal generator with a waveform frequency of up to 25 MHz, which has the ability to generate sine, square, triangle and noise signals. It communicates via the USB protocol and is powered with a voltage of 8 to 36 V. The oscilloscope can work with Windows operating systems.
Features
Oscilloscope
- Number of channels: 4
- Bandwidth: 60MHz
- Sampling rate: 200MSa/s
- Memory Depth: 4K
- Rise time: 5.8 ns
- Time Base Accuracy: ±50ppm
- Time base range: 5ns/div-100s/div
- Input impedance: 1MΩ 25pF
- Input sensitivity: 10mV/div to 5V/div
- Input coupling: AC/DC/GND
- Vertical resolution: 8-bit
- Maximum input voltage: 400V
- Trigger Mode: Edge, Pulse, Video, Alternative
- Trigger source: CH1, CH2, CH3, CH4, EXT
- Signal processing functions: +, -,x, ÷, FFT, Invert
- Measurement cursors: Cross, Trace, Horizontal, Vertical
- Auto Measurement: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
- USB 2.0 interface
- Power supply: 8V to 36V
- Dimensions: 255x190x45mm
- Weight: 1 kg
Generator
- Number of channels: 1
- Vertical resolution: 12 bits
- Maximum frequency: 25MHz
- Wavelength: 4KSa
- Frequency Accuracy: 30ppm
- DC offset: ±3.5V
- Frequency resolution: 0.1%
- Output impedance 50 ohms
Kit contains
- Case
- Hantek DSO3254 oscilloscope
- 2 x oscilloscope probe
- Charger
- USB cable
1186346
Data sheet
- Type of oscilloscope
- Digital
- Bandwidth
- 60 Hz
- Sampling rate
- 200 MSPS
- Memory depth
- 4 Kpts
- Number of channels
- 4
