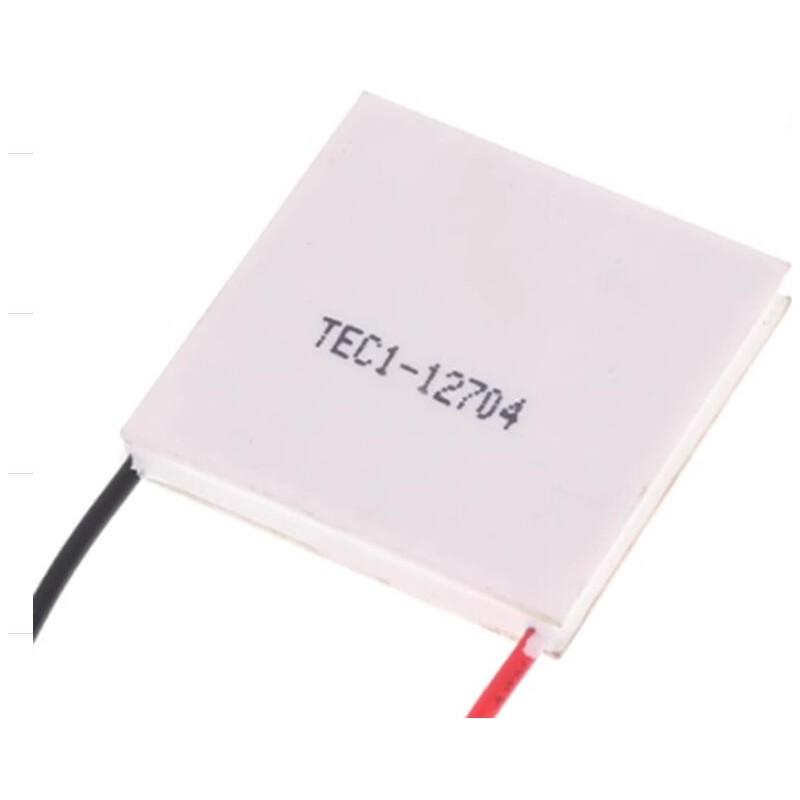

TEC1-12704 - Peltier cell 12V / 4A
ID: 1199522
5902186308299
zł19.68
Tax included
zł16.00 tax excl.
The TEC1-12704 Peltier cell with a cooling capacity of 45 W and dimensions of 40×40×4.0 mm enables efficient cooling at 12 V and 4 A. Thanks to its wide operating temperature range, it is suitable for use in electronics cooling systems, laboratory equipment, and compact refrigerators.
Description
The TEC1-12704 Peltier cell, measuring 40×40×4.0 mm, is designed for cooling and temperature maintenance in small electronic systems, refrigerators, dehumidifiers, and thermostatic systems. Powered by a 12 V DC supply, it draws 4 A, achieving a cooling capacity of 45 W with efficiency suited to small thermal loads. The device can operate in a wide ambient temperature range from –55 °C to +83 °C. Proper heat dissipation on the hot side is required to ensure optimal performance and longevity.
Properties
- Dimensions: 40×40×4.0 mm
- Supply voltage: 12 V DC
- Operating current: 4 A
- Input power: 48 W
- Cooling capacity: 45 W
- Internal resistance: 2.2–2.4 Ω
- Maximum temperature difference: 62 °C
- Number of thermoelectric pairs: 127
- Operating temperature range: –55 °C to +83 °C
- Wire length: 200 mm (22 AWG wire)
1199522
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
