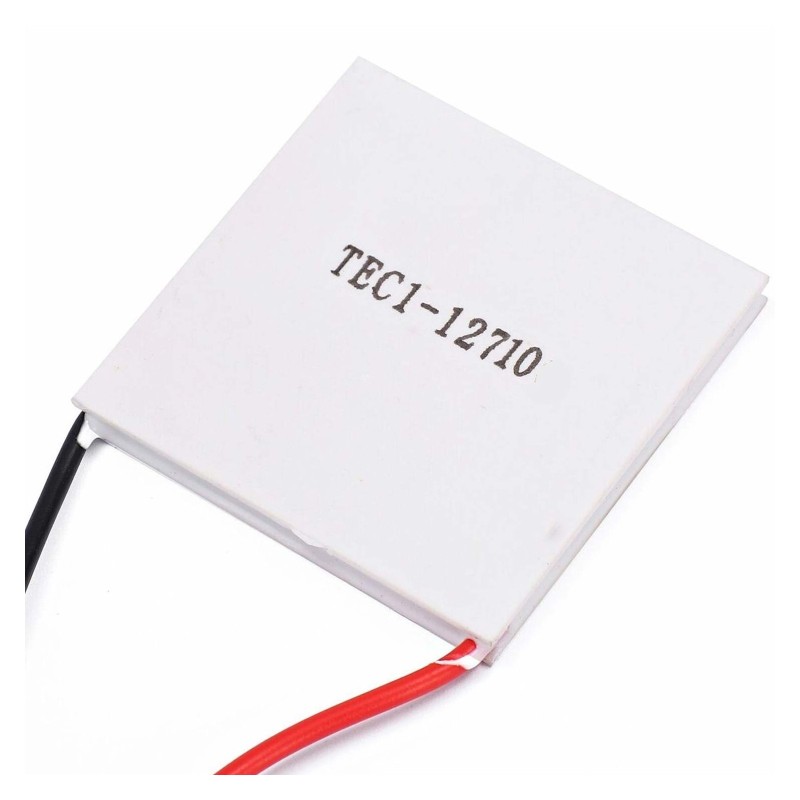

TEC1-12710 – Peltier module 15.8 V / 10.5 A
ID: 234241
5902186304383
zł24.90
Tax included
zł20.24 tax excl.
TEC1-12710 is a high-performance Peltier module with compact dimensions and a cooling power of up to 89 W, designed for active cooling of electronics, optical systems, and other temperature-sensitive applications. Featuring PTFE insulation and an Al₂O₃ ceramic housing, the module offers excellent thermal and chemical resistance.
Description
The TEC1-12710 Peltier module is a thermoelectric cooling and heating element designed for applications requiring active temperature control. It operates based on the Peltier effect, enabling rapid heat transfer from one side of the module to the other. At a maximum voltage of 15.8 V, it reaches a current of up to 10.5 A and a temperature differential (ΔT) of up to 67 °C, with a maximum cooling power of 89 W. The housing is made of Al₂O₃ ceramic for optimal thermal and mechanical insulation. The module is equipped with 15 cm (16 AWG) PTFE-insulated wires, resistant to temperatures up to 138 °C, and BiSn solder joints.
Features
- Type: thermoelectric Peltier module
- Maximum voltage: 15.8 V
- Maximum current: 10.5 A
- Internal resistance: 1.08 Ω
- Maximum temperature difference: 67 °C
- Maximum cooling power: 89 W
- Dimensions: 40 × 40 × 3.3 mm
- Housing material: Al₂O₃ ceramic
- Wires: 16 AWG, 0.15 m length
- Wire insulation: PTFE (Polytetrafluoroethylene)
- Operating temperature: up to 138 °C
- Gross weight: 21.6 g
- Solder material: BiSn
234241
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
