- New

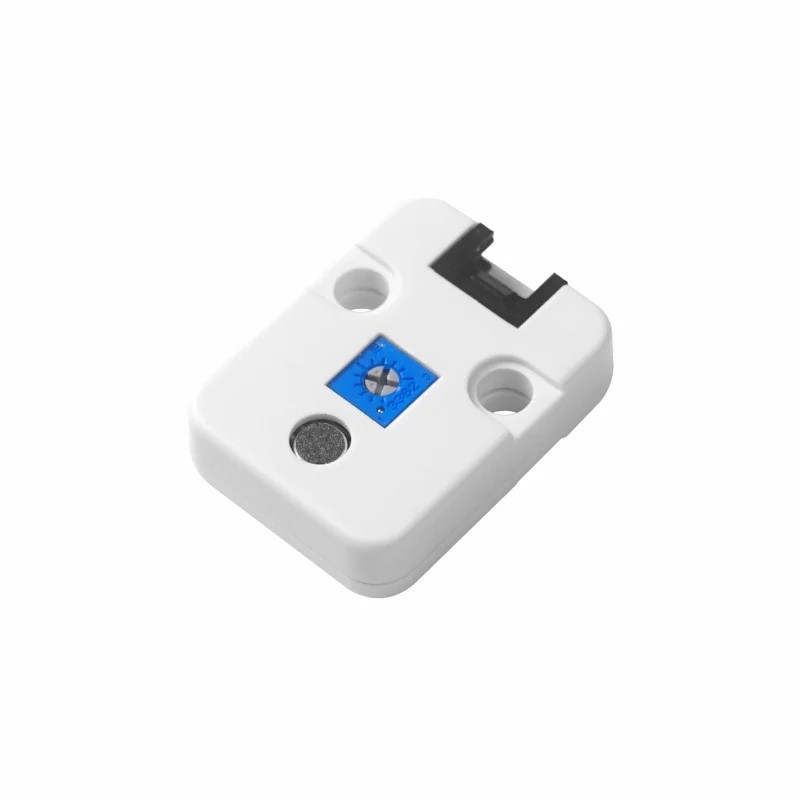

Microphone Module - M5Stack U096
ID: 1200564
5902186332355
zł21.34
Tax included
zł17.35 tax excl.
The Microphone Unit U096 module enables high-fidelity sound detection using a MAX4466 preamplifier and an LM393 comparator with adjustable threshold. It's suitable for applications such as sound switches, acoustic monitoring systems, and educational projects using Arduino or UIFlow platforms. M5Stack U096
Description
The Microphone Unit module, with a built-in omnidirectional electret microphone, detects sound and converts it into analog and digital signals. The built-in MAX4466 preamplifier amplifies the microphone signal, effectively suppressing power supply interference and common-mode noise, ensuring high-quality output even in acoustically disruptive environments.
The LM393 voltage comparator allows you to set the sound detection threshold using an adjustable 10 kΩ potentiometer. This allows you to adjust the sensitivity level to specific application requirements. The module is suitable for projects involving sound-to-electrical signal conversion, as well as for use as a sound trigger in home automation, interactive installations, and acoustic monitoring systems.
Compatibility with Arduino and UIFlow (Blocky, Python) platforms enables easy integration into hobbyist and educational projects.
Features
- Omnidirectional microphone with 52 dB sensitivity
- 40 dB signal-to-noise ratio
- MAX4466 microphone preamplifier
- LM393 voltage comparator with adjustable detection threshold
- Analog and digital output
- HY2.0-4P interface
- Two LEGO™-compatible mounting holes
- 5V power supply
- Compatible with Arduino and UIFlow (Blocky, Python)
Included
- 1x Microphone Unit
- 1x Grove cable
1200564
