Soldered Raspberry Pi Breadboard Breakout - GPIO adapter with cable
ID: 1208295
zł24.66
Tax included
zł20.05 tax excl.
Breadboard adapter for bringing the 40-pin Raspberry Pi GPIO header to a prototyping board. It is compatible with Raspberry Pi models featuring a 40-pin GPIO header and includes factory-soldered pins, additional power and ground connections, a Qwiic connector and a 40-pin ribbon cable. Soldered 333135
Description

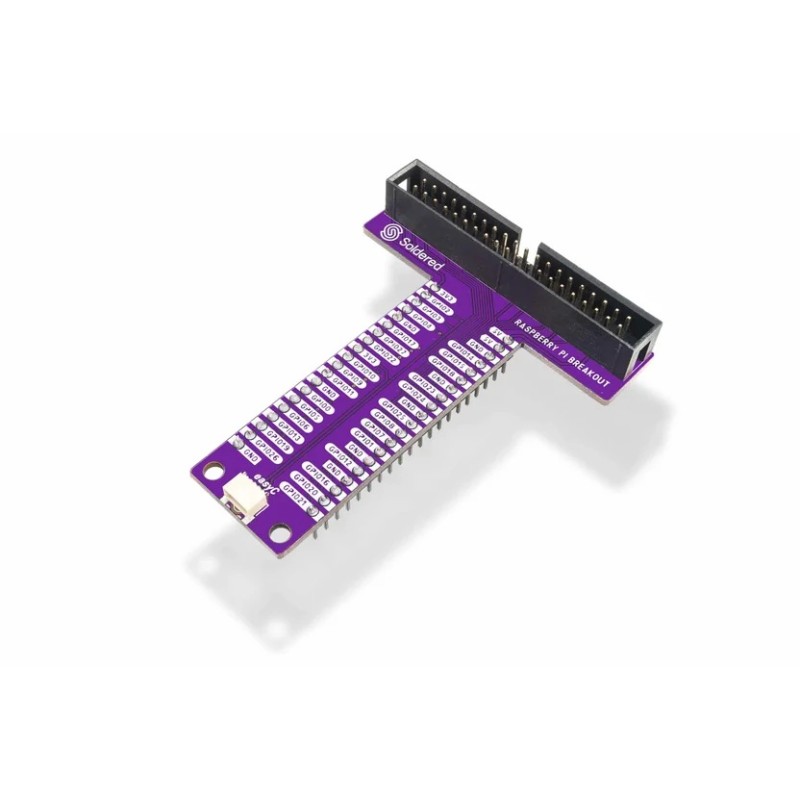

The device Raspberry Pi Breadboard Breakout + Cable by Soldered is a breadboard adapter designed to bring the 40-pin Raspberry Pi GPIO header to a prototyping board. This provides organized access to all GPIO signals without the need to use numerous individual jumper wires.
The board is compatible with all Raspberry Pi models equipped with a 40-pin GPIO header. The pins are factory soldered, allowing the adapter to be used immediately without additional assembly. Its design is suitable for both standard full-size and smaller breadboards, while additional power and ground connections simplify wiring components in prototype circuits.
The adapter also features a Qwiic connector for quick connection of compatible I2C modules. The included 40-pin ribbon cable provides a direct connection between the Raspberry Pi GPIO header and the breakout board.
The board measures 59 × 74mm and features two mounting holes. The pin pitch is 2.54mm, making the adapter compatible with standard solderless breadboards. The hardware is open source, and the manufacturer provides design files and a pinout diagram.
Features
- Compatibility
- Designed for Raspberry Pi
- Compatible with models featuring a 40-pin GPIO header
- Number of broken-out pins: 40
- Pin pitch: 2.54mm
- Compatible with full-size and smaller breadboards
- Connectors and pins
- GPIO connector: 40-pin
- Factory-soldered pins
- Additional power connections
- Additional GND connections
- Qwiic connector
- Compatible with Qwiic / easyC / STEMMA QT I2C modules
- Mechanical parameters
- Board dimensions: 59 × 74mm
- Number of mounting holes: 2
- Pin pitch: 2.54mm
- Additional information
- Open-source hardware design

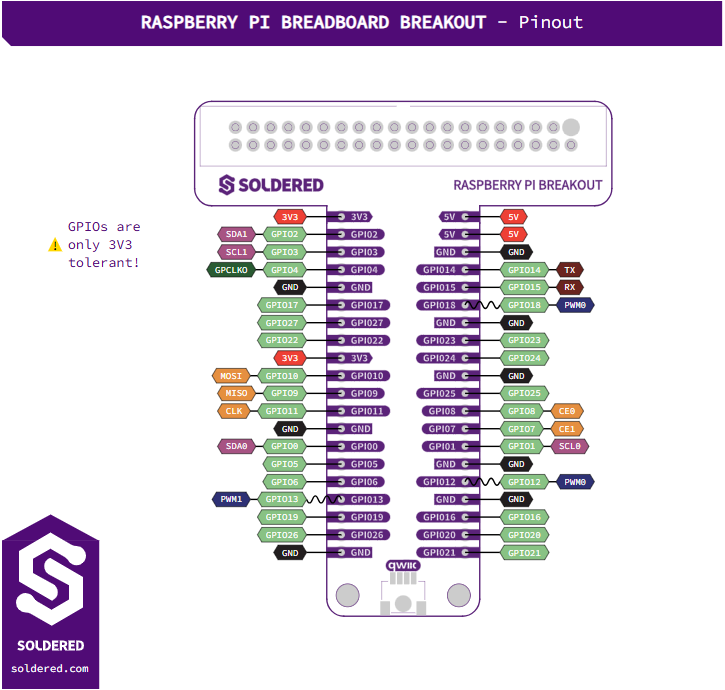

- Pinout diagram available
- Hardware design files available
- Manufacturer: Soldered Electronics
- Product code: 333135
Kit includes
- 1 × Raspberry Pi Breadboard Breakout
- 1 × 40-pin ribbon cable
