QTR-MD-03RC - module with 3 reflectance sensor with RC (digital) output
ID: 572738
5906623479269
zł17.01
Tax included
zł13.83 tax excl.
Module with 3 QTR type optocoupler with RC (digital) output. The module operates from 2.9 V to 5.5 V, detects objects at a distance of up to 30 mm. The sensor will be used in projects that require detection of changes in the ground, e.g. in linefollower robots. Pololu 4143
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Reflectance sensor consisting of array 3 QTR optocouplers with the ability to individually control the brightness of each of the infrared LEDs. The sensors on the board are medium density (MD) and the distance between them is 8 mm. The module can be supplied with the voltage ranging from 2.9 V to 5.5 V and draws current up to 62 mA. The optimum distance from the sensor to the ground is 5 mm and the maximum distance is 30 mm. The module is ideally suited for detecting changes in light reflection, so it can be used for edge detection or line tracking in linefollower robots.
Features
- Sensor type: QTR
- Number of sensors: 3
- Sensor pitch: 8 mm (distance between individual sensors)
- Full brightness LED current: 30 mA (regardless of the supply voltage)
- Maximum module current: 62 mA
- Output signal: digital I/O-compatible signals that can be read in parallel as timed high pulses
- Optimum sensing distance: 5 mm
- Maximum sensing distance: 30 mm
- Supply voltage: 2.9 ... 5.5 V
- Dimensions: 21,0 × 20,0 × 2,5 mm
- Weight: 1,1 g
572738
Data sheet
- Type of sensor
- QRE
- Output type
- digital
- Number of sensors
- 3
- Power supply voltage
- 2,9 - 5,5 V
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Other products in the same category (16)
Module with 2 QTR type optocoupler with analog output. The module operates from 2.9 V to 5.5 V, detects objects at a distance of up to 30 mm. The sensor will be used in projects that require detection of changes in the ground, e.g. in linefollower robots. Pololu 4202

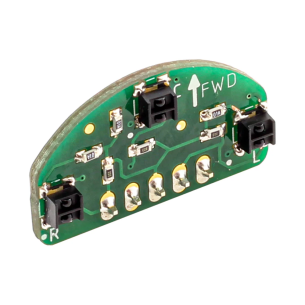

zł13.17 24hAvailable quantity: 1 AvailableA module with line sensors designed to work with the Kitronik kit. It has two sensors in the form of phototransistors that generate an analog voltage that can be read by the microcontroller. The module is equipped with a 4-pin connector (3V, 0V, L, R), which allows for power supply and reception of signals from the sensors, and the output voltage changes depending on the detected surface, which allows it to be used not only with the Kitronik kit, but also with platforms such as Arduino or Raspberry Pi Pico. Kitronik 56111
