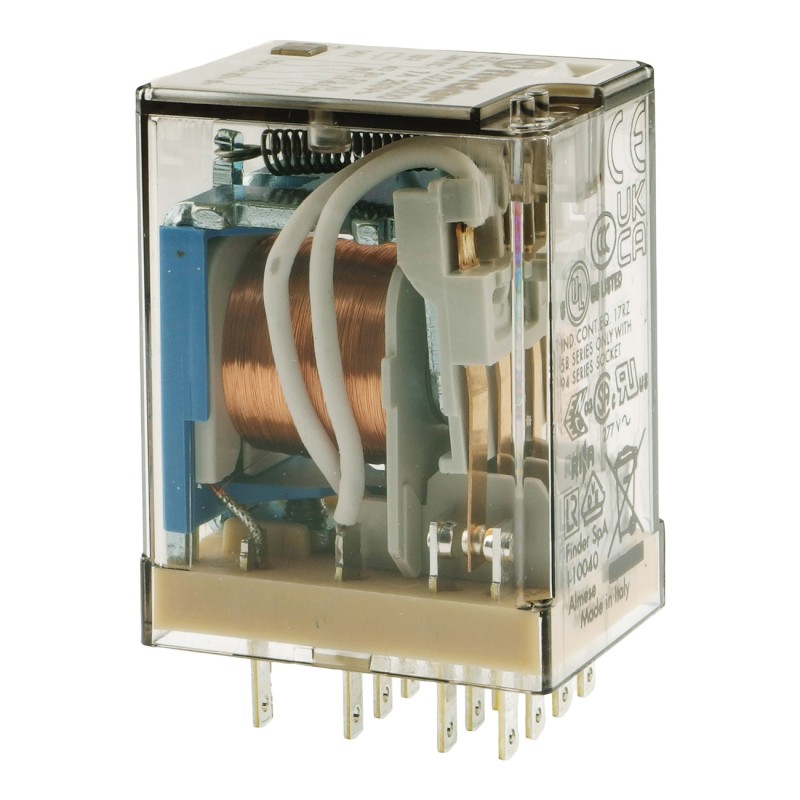

Industrial Relay 4PDT 7A 24V DC, test button & indicator - Finder 55.34.9.024.0000
ID: 1203897
zł33.15
Tax included
zł26.95 tax excl.
Miniature industrial relay with four changeover contacts (4PDT) rated at 7 A, equipped with a 24 V DC coil. Designed for use with Series 94 sockets, featuring a lockable test button and mechanical status indicator. Finder 55.34.9.024.0000
Description
Finder 55.34.9.024.0000 is a miniature industrial relay intended for plug-in mounting in Series 94 sockets. It is designed for use in automation systems, control panels, and industrial installations requiring switching of multiple signal or power circuits.
The relay features four changeover contacts (4PDT) rated at 7 A. Contacts made of AgNi ensure good electrical durability and resistance to wear. The rated contact voltage is 250 V AC, with an electrical endurance of 150,000 cycles.
The 24 V DC coil operates within a supply range of 19.2 - 26.4 V DC. Rated coil power is 1 W, coil resistance is 600 Ω, and current consumption is approximately 40 mA. The relay’s hold voltage is 12 V, and drop-out voltage is 2.4 V. The unit is equipped with a lockable test button and a mechanical operation indicator. It is suitable for operation in ambient temperatures from -40°C to +85°C.
Features
- Manufacturer: Finder
- Part number: 55.34.9.024.0000
- Series: 55.34
- Relay type: Industrial
- Mounting: For Series 94 sockets
- Output element: Electromagnetic relay
- Number of channels: 4
- Contact configuration: 4PDT (4 changeover contacts)
- Rated contact current: 7 A
- Rated contact voltage: 250 V AC
- Contact material: AgNi
- Coil-to-contact insulation: 4 kV
- Nominal coil voltage: 24 V DC
- DC supply range: 19.2 - 26.4 V
- Rated coil power: 1 W
- Coil resistance: 600 Ω
- Coil current consumption: 40 mA
- Hold voltage: 12 V
- Drop-out voltage: 2.4 V
- Electrical endurance: 150,000 cycles
- Operating temperature: -40°C to +85°C
- Dimensions: 20.7 x 37.2 x 27.7 mm
- Additional features: Lockable test button, mechanical status indicator
1203897
Data sheet
- Output current
- 7 A
- Number of channels
- 4
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 24 VDC
Manufacturer FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland finder.pl@findernet.com
Responsible person FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ Logistyczna 27, Sady 62-080 Tarnowo Podgórne Poland formularz kontaktowy na stronie osoby odpowiedzialnej
