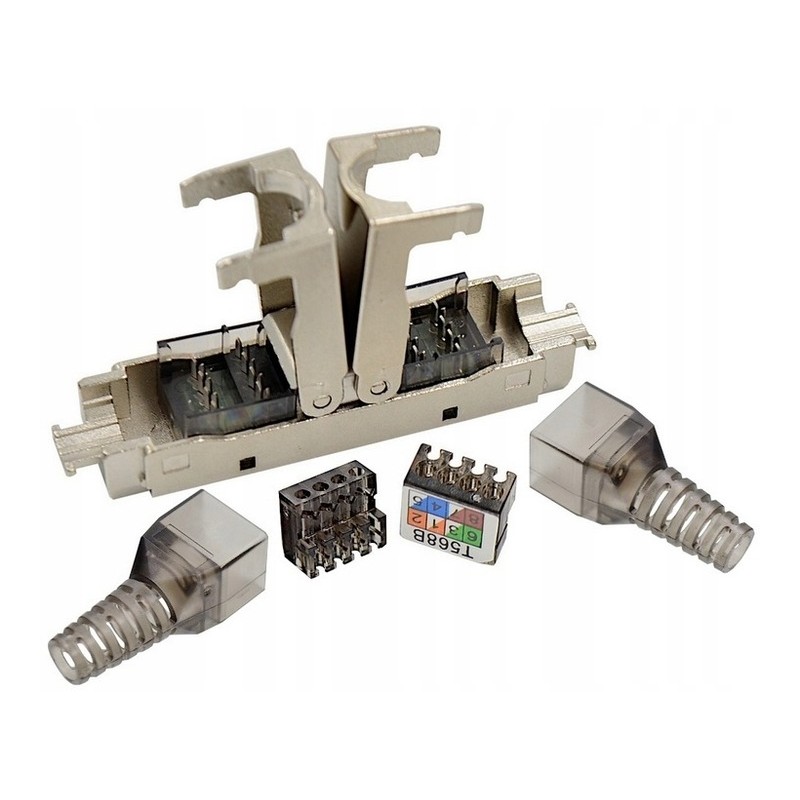

  • RJ45 set – top view, components disassembled
  • Connector interior – view of the contact section
  • Opened RJ45 connector with T568B marking – top view
  • Closed RJ45 connector – side view
  • RJ45 Cat.6A connector – general view
  • Assembled RJ45 connector with strain reliefs – side view
  • Mounting kit – connectors, strain reliefs, cable inserts
  • RJ45 Cat.6A STP connector kit in packaging – front view

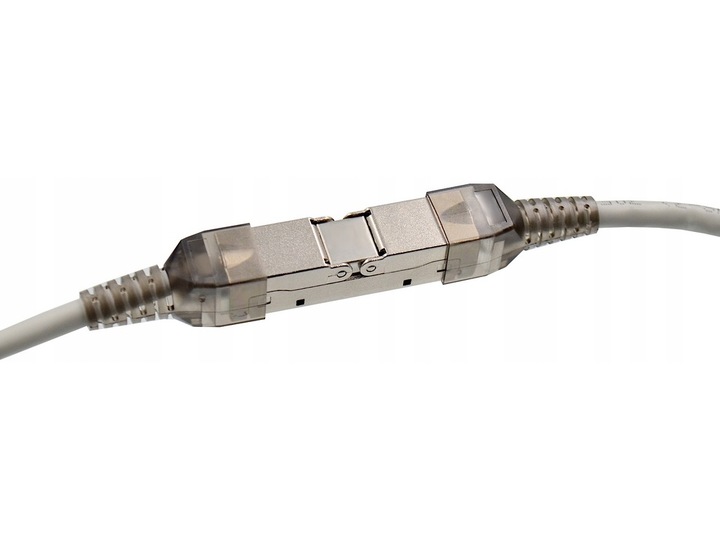

  • Connected RJ45 Cat.6A STP connector – side view
ID: 1199366
5905274140603
zł19.99
Tax included

zł16.25 tax excl.

Shielded RJ45 Cat.6A STP inline coupler (jack-to-jack) “barrel” type, tool-free installation, compliant with EIA/TIA 568B standard, supports up to 10 Gb/s (Class EA)

24h
Available
Available quantity: 20

Description

The RJ45 Cat.6A STP modular inline coupler is designed for connecting two segments of shielded Ethernet network cables terminated with RJ45 connectors in structured and cable installations. The barrel-type construction enables tool-free termination using built-in IDC guides, eliminating the need for crimping tools or special assembly equipment.

                                                                                                                                              Example usage



The product complies with the EIA/TIA 568B standard and supports data transmission in Cat.6A (Class EA), offering bandwidth up to 10 Gb/s and frequencies up to 500 MHz. The fully shielded metal housing and STP shielding provide protection against electromagnetic interference, making it suitable for environments using shielded cables.

The coupler is compatible with cables featuring conductor sizes in the 22–26 AWG range and is intended for connecting standard Ethernet cables in LAN installations, including Power over Ethernet (PoE) systems, while maintaining mechanical compatibility with RJ45 interfaces.

Features

  • Connector type: RJ45 (modular, inline/barrel)
  • Compliance: EIA/TIA 568B
  • Transmission category: Cat.6A (Class EA)
  • Shielding type: STP (Shielded Twisted Pair)
  • Data transfer rate: up to 10 Gb/s
  • Frequency bandwidth: up to 500 MHz
  • Ports: 2 × RJ45
  • Housing: shielded metal
  • Supported cable size: 22–26 AWG
  • Installation: tool-free (IDC terminals)
  • Compatibility: with shielded Ethernet cables (RJ45)
  • Color: silver
  • EAN: 5905274140603
1199366

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
