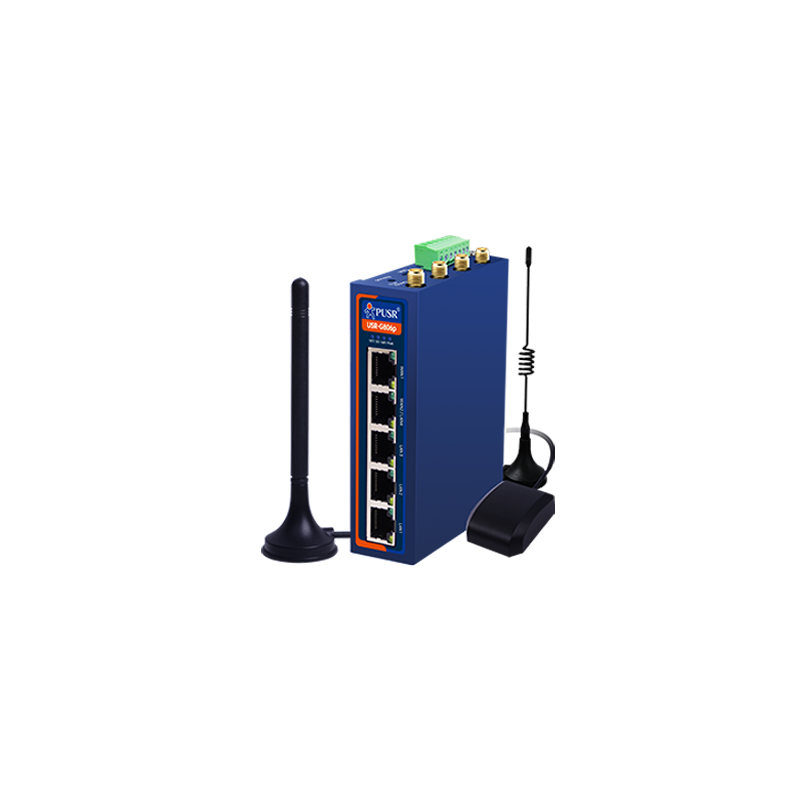

USR-G806p-G - Industrial router with 5 Ethernet ports, RS232/RS485, Wi-Fi, GNSS and Dual SIM support
search
  • USR-G806p-G - Industrial router with 5 Ethernet ports, RS232/RS485, Wi-Fi, GNSS and Dual SIM support
ID: 1200634
zł565.38
Tax included

zł459.66 tax excl.

The USR-G806p-G router with a Qualcomm processor, LTE connectivity, Wi-Fi, RS232/RS485 ports and GNSS function provides stable data transmission and versatility in industrial applications. Support for two SIM cards, extensive VPN options and resistance to environmental conditions make it a solution for complex automation and IoT systems.

4 weeks
Awaiting delivery
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The industrial router USR-G806p-G is designed based on a high-performance Qualcomm processor and offers a wide range of interfaces, including five Ethernet ports (1×WAN, 1×WAN/LAN, 3×LAN), two serial ports (RS232 and RS485), a 2.4 GHz Wi-Fi module, GNSS positioning and two Nano-SIM card slots. The device provides redundant connectivity over 4G/3G/2G networks with automatic failover between operators and communication interfaces. It supports data transmission protocols TCP/UDP, Modbus RTU/TCP, MQTT and HTTP, as well as VPN services (PPTP, L2TP, IPsec, OpenVPN, GRE) and network security functions (firewall, NAT, SNAT, DNAT, access control lists). Thanks to its industrial design, wide operating temperature range and power supply, the router is suitable for applications such as environmental monitoring, store automation, energy, agriculture and water management systems.

Properties

  • Support for 4G LTE (Cat.4) connectivity, compatible with 3G and 2G
  • Supported frequency bands:
  • TDD-LTE: B34/B38/B39/B40/B41
  • FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
  • WCDMA: B1/B2/B4/B5/B6/B8/B19
  • GSM: B2/B3/B5/B8
  • 5 Ethernet ports: 1×WAN, 1×WAN/LAN (configurable), 3×LAN (10/100 Mbps, 1.5 kV isolation)
  • Serial interfaces: 1×RS232, 1×RS485
  • Supported protocols: TCP/UDP, Modbus TCP ↔ RTU, MQTT, HTTPD
  • Dual-range power supply: DC 9–48 V with reverse polarity protection
  • Slots: 2×Nano SIM (operator redundancy)
  • Wi-Fi: 802.11b/g/n, 2.4 GHz, up to 300 Mbps, AP/STA/Bridge modes, 2×SMA antenna (MIMO 2x2)
  • GNSS: SMA antenna, GPS/Beidou positioning, location reporting via web interface
  • Hardware watchdog, automatic interface switching (WAN ↔ LTE ↔ Wi-Fi)
  • Remote management via PUSR Cloud platform
  • VPN: PPTP, L2TP, IPsec, OpenVPN, GRE
  • Network functions: DDNS, DHCP, PPPoE, static IP, firewall, SNAT/DNAT
  • Power consumption: average current <500 mA at 12 V
  • Metal IP30 enclosure, mounting: wall, DIN-rail or desktop
  • Dimensions: 110 × 85 × 30 mm
  • Operating temperature range: -40°C to +75°C
  • LED indicators: power, network status, signal level, Wi-Fi

Included in the set

  • USR-G806p-G router
  • LTE antennas (1 pc)
  • Wi-Fi antennas (2 pcs)
  • GNSS antenna
  • Power connector
  • Mounting bracket
